The DC600M 2.5” SATA Enterprise SSD Specifications

Storage with a 6Gbps SATA 3.0 interface for mixed-use applications

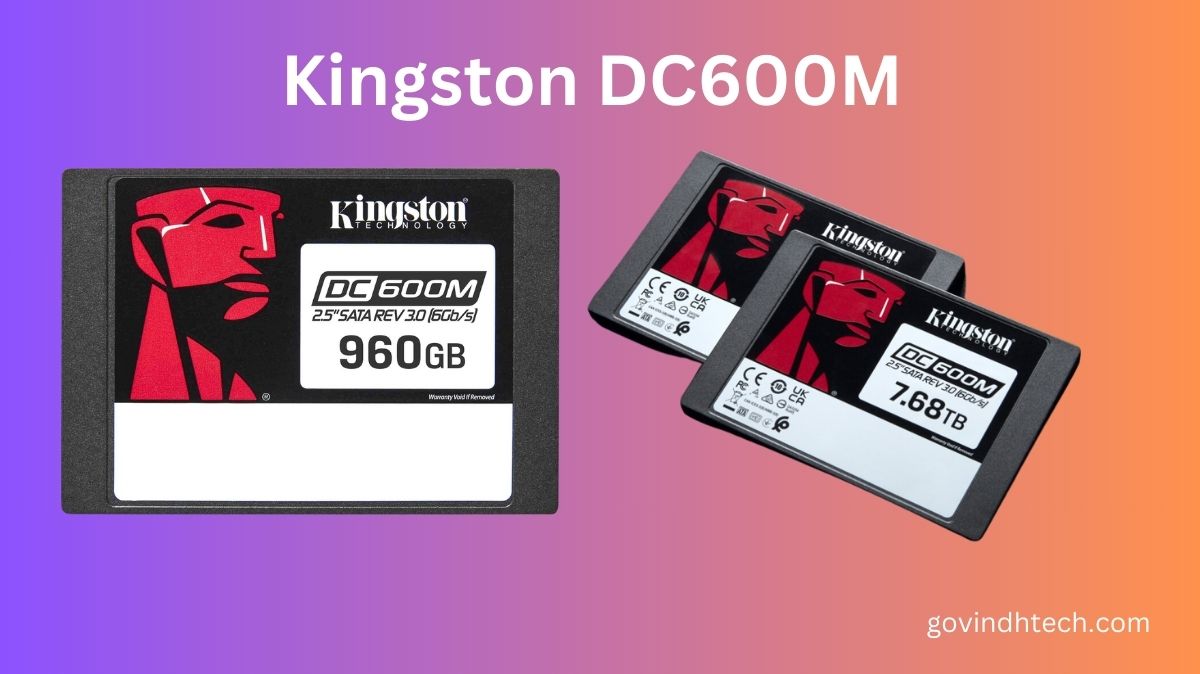

The DC600M solid-state drive (SSD) from Kingston is a data center SSD designed for “mixed use” workloads. It is a fourth-generation data center SATA 3.0, 6Gbps SSD with 3D TLC NAND. The DC600M features hardware-based on-board PLP and is designed to be utilized in high-volume rack-mount server environments.

Through the use of power loss capacitors, the DC600M protects data against an unexpected loss of power. This helps to lessen the likelihood of data loss and ensures that the drive will properly re-initialize itself the next time the system is powered on. System integrators, hyperscale data centers, and cloud service providers are the target audiences for DC600M, which is meant to give consistent latency and IOPS.

To satisfy the needs of your data storage requirements, capacities ranging from 480 gigabytes to 7680 gigabytes are offered.

  • Developed specifically for use in data center settings
  • Hardware-based protection against power loss
  • The constancy of latency and IOPS
  • Capacity of up to 7680 Gigabytes

Important Aspects

Developed specifically for use in data center settings

Designed specifically with low latency and consistent IO as the primary design goal in order to fulfill the stringent requirements imposed by server RAID applications.

A PLP implementation based on hardware

Power Loss capacitors to safeguard user data against unforeseen power outages and improve performance.

Provides a Quality of Service (QoS) that is exceptional

Service-level agreements (SLAs) compliance through performance predictability that has been optimized and improved.

Capacity of up to 7680 Gigabytes

Enhance and administer storage with capacities of up to 7680GB.

  • Developed specifically for use in data center settings
  • On-board Power Loss Protection (often abbreviated as PLP).
  • Consistent latency and IOPS, as well as consistent quality of service
  • Up to 560MB/s read and 530MB/s write speeds are supported.

The DC600M 2.5” SATA Enterprise SSD Specs

Form factor2.5 inch
InterfaceSATA Rev. 3.0 (6Gb/s) – with backwards compatibility to SATA Rev. 2.0 (3Gb/s)
Capacities480GB, 960GB, 1920GB, 3840GB, 7680GB
NAND3D TLC
Sequential Read/Write480GB – 560MBs/470MBs
960GB – 560MBs/530MBs
1,920GB – 560MBs/530MBs
3,840GB – 560MBs/530MBs
7680GB – 560MBs/530MBs
Steady-state 4k random read/write480GB – 94,000/41,000 IOPS
960GB – 94,000/65,000 IOPS
1920GB – 94,000/78,000 IOPS
3840GB – 94,000/59,000 IOPS
7680GB – 94,000/34,000 IOPS
Quality of service (latency)(99.999)Read/Write
480GB – 180/110 uSec
960GB – 3840GB – 200/300 uSec
7680GB – 240/170 uSec
Typical latency – read/write<200 µs / <30 us
Hot-plug capableStatic and dynamic wear levelling
Enterprise SMART toolsReliability tracking, usage statistics, life remaining, wear levelling, temperature
Hardware-based power loss protection Endurance480GB – 876TBW, 1 DWPD (5 years), 1.66 DWPD (3 years)
960GB – 1752TBW, 1 DWPD (5 years), 1.66 DWPD (3 years)
1920GB – 3504TBW, 1 DWPD (5 years), 1.66 DWPD (3 years)
3840GB – 7008TBW, 1 DWPD (5 years), 1.66 DWPD (3 years)
7680GB – 14016TBW, 1 DWPD (5 years), 1.66 DWPD (3 years)
Power consumptionIdle: 1.30W
Average: 1.45W
Max read: 1.6W
Max write: 3.6W
Storage temperature-40℃ ~ 85℃
Operating temperature0℃ ~ 70℃
Dimensions69.9mm x 100mm x 7mm
Weight92.34g
Vibration operating2.17G Peak (7–800Hz)
Vibration non-operating20G peak (10–2000Hz)
MTBF2 million hours
UBER≤10 -17
Warranty/supportLimited 5-year warranty with free technical support
