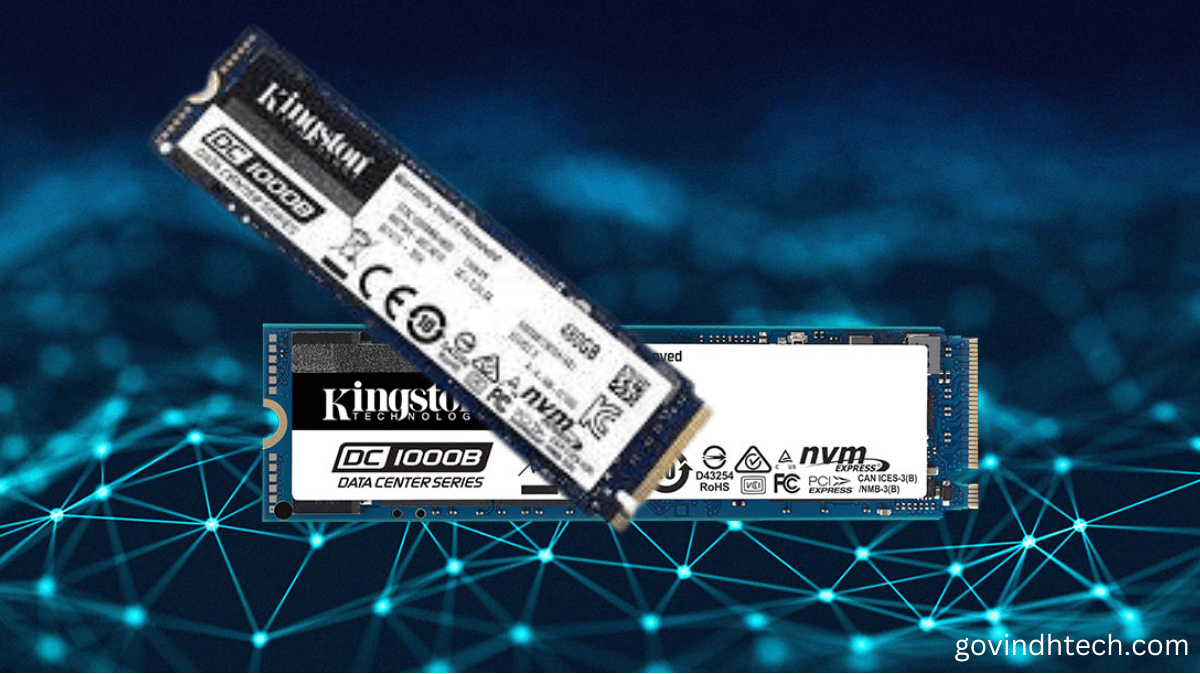

The Data Centre DC1000B from Kingston is a high-performance M.2 (2280) NVMe PCIe SSD. It utilizes the most recent Gen 3.0 x 4 PCIe interface and comes equipped with 64-layer 3D TLC NAND. DC1000B provides a cost-effective boot drive solution for data centers, giving these facilities the peace of mind that comes with knowing they are acquiring an SSD that was developed specifically for server applications.
The DC1000B is particularly suited for use in high-volume rack-mount servers as an internal boot drive or drives, as well as for use in purpose-built systems where a high-performance M.2 SSD that features on-board power loss protection (PLP) is required. It can also be used as an internal boot drive or drives in high-volume rack-mount servers.
SSD NVMe for Enterprise Data Center Boot Drive
Within the data center, M.2 NVMe SSDs are evolving to provide savings in the booting of servers, which helps to conserve valuable front-loading drive bays for the storing of data. Whitebox and Tier 1 Server OEMs are starting to include one or sometimes two M.2 sockets for booting reasons on their server motherboards.
These sockets are becoming more common. M.2 was first conceived of as a form factor for solid-state drives that would be used in client computers; but, due to its compact size and great speed, it has become more popular for usage in servers. It’s important to remember that not all solid-state drives are made equal; if you use a client SSD in a server application, you may experience poor and inconsistent performance.
Various Submissions
The primary function of a boot drive is to start an operating system (OS), however in many scenarios of use today, a boot drive also serves a secondary purpose, which may include logging application data or being set as a high-speed local cache disk. As a result, the DC1000B was developed with increased endurance (0.5 DWPD for 5 years) to manage not only the burden associated with the operating system but also the additional write workload associated with caching and data recording.
In addition to being intended for long term reliability, the DC1000B is meant to give enterprise level performance consistency and low latency capabilities that are often not present on client SSDs. These features can be found on corporate SSDs. Capacity options range from 240 gigabytes to 960 gigabytes.
Principal Attributes
The Performance of M.2 (2280) NVMe
Unbelievable performance at speeds of up to 2.6 GB/s and 200K IOPS.
Drive for the Server that Is Optimized to Boot
Enhanced not just for boot workloads but also for caching and recording application performance
To the ship (PLP) Protection against Power Loss
Reduce the likelihood of data being lost or corrupted in the event that the power is abruptly shut off.
Drive Bays Should Be Maximized
By moving boot drives internally, greater data storage space can be made available in front loading drive bays.
Potential or capability
- SSDs with capacities of 240GB, 480GB, and 960GB, designed for use in data centers and enterprise applications
- Drive that Is Optimized for Use as a Boot Device for Servers
- PCI Express NVM Express M.2 x4
- Up to 2,200MB/s Read and 290MB/s Write Speeds Create a text.
DC1000B M.2 NVMe SSD specifications
| Form Factor | M.2, 22mm x 80mm (2280) |
| Interface | PCIe NVMe Gen3 x4 |
| Capacities | 240GB, 480GB, 960GB |
| NAND | 3D TLC |
| Self-Encrypting Drive (SED) | AES 256-bit Encryption |
| Sequential Read/Write | 240GB – 2,200MBs/290MBs 480GB – 3,200MBs/565MBs 960GB – 3,400MBs/925MBs |
| Steady-State 4k Read/Write | 240GB – 111.000/12.000 IOPS 480GB – 205.000/20.000 IOPS 960GB – 199.000/25.000 IOPS |
| Latency Read (Avg) | 161µs |
| Latency Write (Avg) | 75µs |
| Power Loss Protection (Power Caps) | Yes |
| SMART Health Monitoring and Telemetry | SMART, Telemetry and other Enterprise Class Diagnostic capabilities |
| Endurance | 240GB — 248TBW (0.5 DWPD/5yrs) 480GB — 475TBW (0.5 DWPD/5yrs) 960GB — 1095TBW (0.6 DWPD/5yrs) |
| Power Consumption | 240GB: Idle: 1.82W Average Read: 1.71W Average Write: 3.16W Max Read: 1.81W Max Write: 3.56W 480GB: Idle: 1.90W Average Read: 1.74W Average Write: 4.88W Max Read: 1.81W Max Write: 5.47W 960GB: Idle: 1.29W Average Read: 1.67W Average Write: 4.25W Max Read: 1.78W Max Write: 5.73W |
| Storage temperature | -40°C ~ 85°C |
| Operating temperature | 0°C ~ 70°C |
| Dimensions | 80mm x 22mm x 3.8mm |
| Weight | 240GB – 8g 480GB – 960GB – 9g |
| Vibration operating | 2.17G Peak (7–800Hz) |
| Vibration non-operating | 20G Peak (10–2000Hz) |
| MTBF | 2 million hours |
| Warranty/support | Limited 5-year warranty with free technical support |
