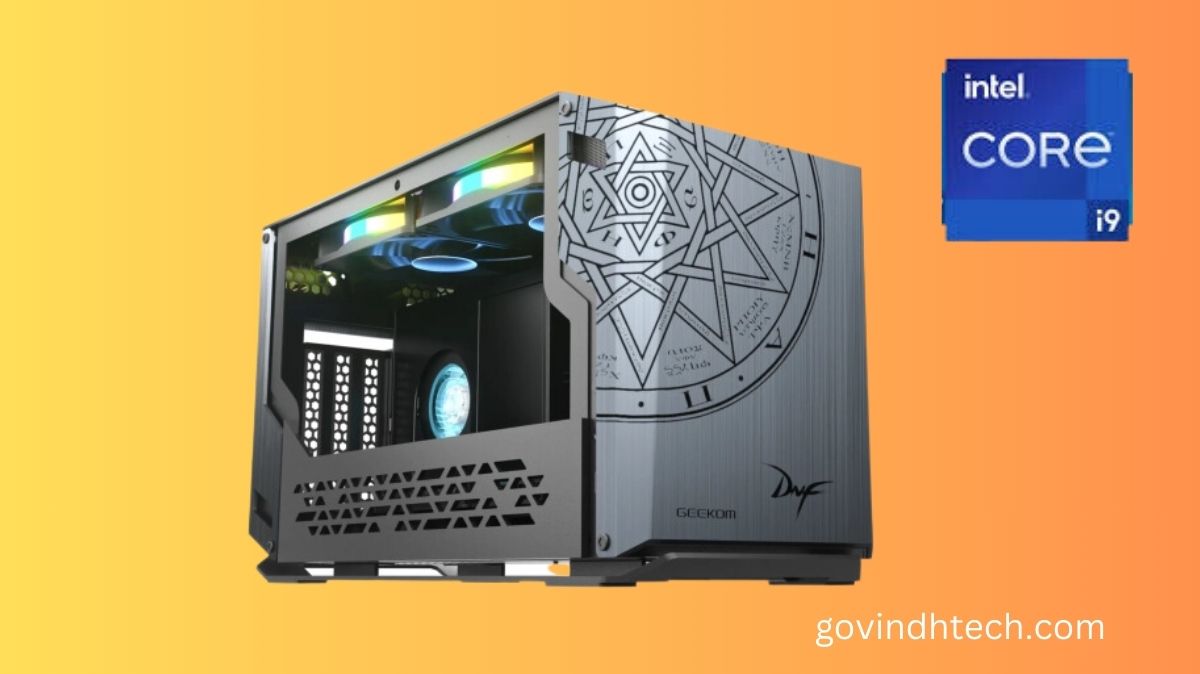

Geekom Mini FUN11: Experience Mini PC Graphics Excellence!

Geekom Mini FUN11 Features

With expansion cards, you may assemble high-end Mini PCs with CPUs up to Core i9-11900KB from Tiger Lake. Here, the GEEKOM Mini FUN11 uses this platform to deliver outstanding performance in a still-relatively-small package.

The machine’s dimensions are 21.9 cm thick, 15.3 cm wide, and 38.6 cm deep. A considerably more stunning machine than a traditional MiniPC, this 6.5 kg machine can accommodate an external graphics card with a standard format. It is stated that the GEEKOM Mini FUN11 is compatible with cards measuring 31.2 cm in length, specifically the GeForce RTX 30 and Radeon RX 6000.

GEEKOM Mini FUN11 Ports

Up to 64 GB of RAM can be installed in the two SoDIMM DDR4-3200 slots on the Compute Element. Two more M.2 2280 PCIe Gen 3 x 4 slots are added to the M.2 2280 NVMe PCIe Gen 4 x 4 slot, which is responsible for storage. With this set installed on the Compute Element card, the PC can handle a wide range of user requirements.

On the front of the case, there is a 3.5 mm combination audio socket, a USB Type-C port, and a little button that controls the inbuilt RGB LEDs. The machine has a conveniently accessible start button on the top.

With two Thunderbolt 4 connections, an HDMI 2.0 port, a 2.5 Gigabit Ethernet port, six USB 3.2 Gen2 Type-A ports, and the potential outputs of a separate graphics card, the Intel card performs its standard duties on the back. Take advantage of the inbuilt Wi-Fi6E and Bluetooth 5.2 module with detachable antenna connections.

They note that there is a set of RGB LEDs and a sizable ventilation system on top of the chassis, along with a 500 watt integrated power supply. The machine’s side is perforated, and a window lets you see what goes inside, even though having a second graphics card should significantly reduce your view. The ventilation schematic is easy to understand. Apart from the components unique to Intel’s design, the two fans force air to be drawn in from the bottom of the right panel and directed towards the upper part of the computer.
