Performance improvements for systems and notebooks that are slimmer

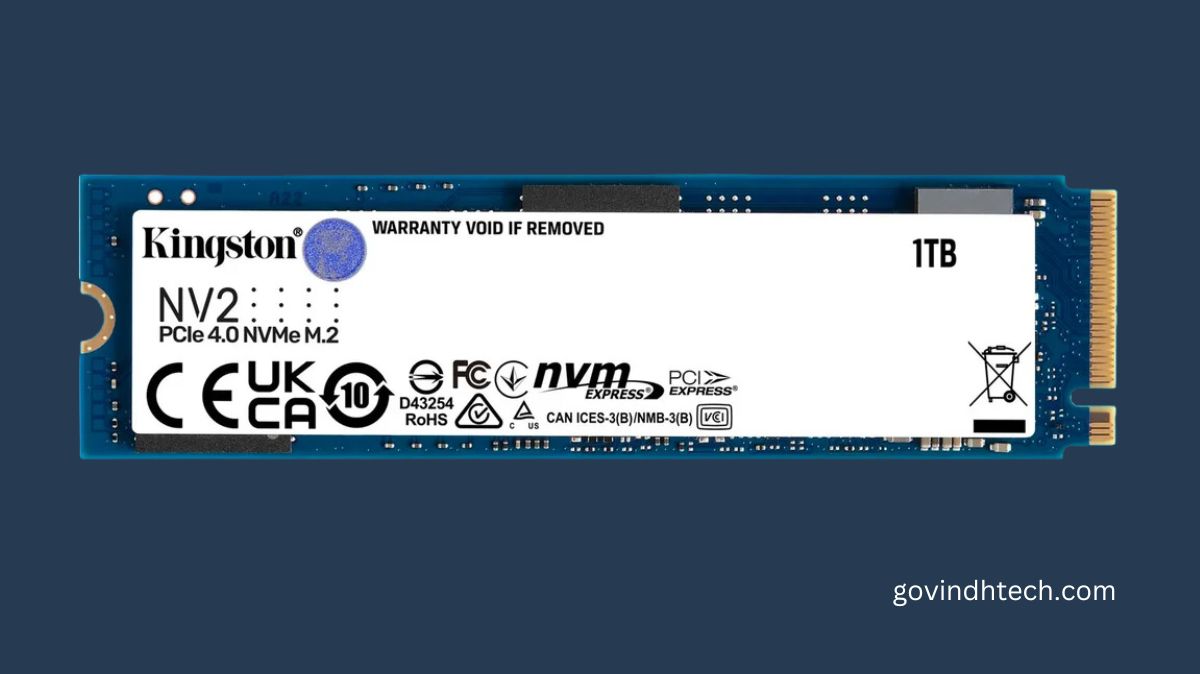

A powerful next-generation storage solution, the NV2 PCIe 4.0 NVMe SSD from Kingston is driven by a Gen 4×4 NVMe controller. The NV2 provides read/write speeds of up to 3,500/2,800MB/s with lower power consumption and lower heat, which helps optimize the performance of your system and gives value without sacrificing quality. The compact single-sided M.2 2280 (22x80mm) architecture expands storage by up to 4TB while saving room for other components. This makes NV2 suitable for thinner notebooks, small-form-factor (SFF) systems, and DIY motherboards because to its space-saving capabilities.
You can choose from capacities ranging from 250 gigabytes to four terabytes, which will provide you with all of the space you require for your programs, documents, photos, movies, and other data.
- A performance benchmark for Gen 4×4 NVMe PCIe
- Perfect for notebooks and other small-form-factor computers
- Capabilities as high as 4 terabytes
Important Aspects
A performance benchmark for Gen 4×4 NVMe PCIe
Read and write speeds of up to 3,500/2,800 MB/s for a system that is generally speedier thanks to this feature.
Ideal for applications with constrained storage capacity
M.2 connectors allow for simple integration into design plans. Excellent choice for thin laptops and personal computers with tiny form factors.
Enhanced potentials and abilities
Available in a wide range of high capacities, all the way up to 4 terabytes (TB), to satisfy your data storage requirements.
- A performance benchmark for Gen 4×4 NVMe PCIe
- Limited warranty for three years.
- Up to 3,000 MB/s read and 1,300 MB/s write speeds are supported.
- Not included is any cloning software.
NV2 PCIe 4.0 NVMe SSD specifications:
| Form factor | M.2 2280 |
| Interface | PCIe 4.0 x4 NVMe |
| Capacities | 250GB, 500GB, 1TB, 2TB, 4TB |
| Sequential read/write | 250GB – 3,000/1,300MB/s 500GB – 3,500/2,100MB/s 1TB – 3,500/2,100MB/s 2TB – 4TB – 3,500/2,800MB/s |
| NAND | 3D |
| Endurance (Total bytes written) | 250GB – 80TB 500GB – 160TB 1TB – 320TB 2TB – 640TB 4TB – 1280TB |
| Storage temperature | -40°C~85°C |
| Operating temperature | 0°C~70°C |
| Dimensions | 22mm x 80mm x 2.2mm |
| Weight | 7g (all capacities) |
| Vibration operating | 2.17G (7-800 Hz) |
| Vibration non-operating | 20G (20-1000Hz) |
| MTBF | 2,000,000 hours |
| Warranty/Support | Limited 3-year warranty with free technical support |
