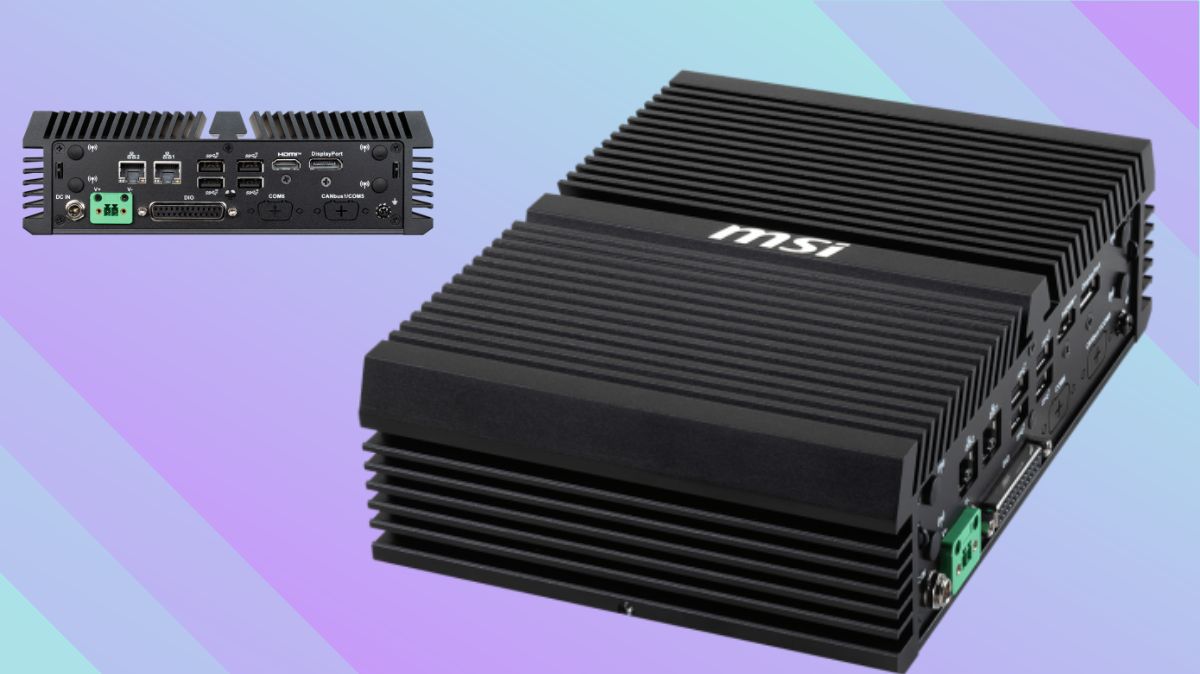

MSI Created MS-C903 Intel Tiger Lake-UP3 AI Ready PC Box

Unveiling the MS-C903, a flexible embedded system engineered to satisfy the exacting demands of several industries such as robotics, automation, gaming, transportation, and medical, is MSI, a prominent pioneer in technology solutions.

Some of the MS-C903’s primary features are:

Durability and Reliability: The platform’s stability and dependability are guaranteed by a number of facility

The MS-C903 is designed to function dependably at temperatures between -20 and 70°C. It is engineered to perform well in demanding circumstances. Consistent power supply is ensured by its wide voltage DC input (12~24V) and overvoltage and overcurrent protection (OCP and OVP). Hardware monitoring using an Infineon TPM Controller (SLB9670VQ2.0/FW7.85) and a 256-level watchdog timer are two examples of enhanced security capabilities. Its shockproof and vibration-reducing construction guarantees longevity and complies with IEC 61373.

Flexible installation is provided by the MS-C903’s several mounting choices, which include wall mount, DIN rail, and VESA mount. Furthermore, its superior performance, propelled by the Intel 11th Gen Tiger Lake-UP3 Embedded/Industrial SKU Series and a multitude of I/O ports, renders it perfect for a wide range of applications.

High-performance platform based on Intel X-86

Enables the effortless connection of various devices by supporting a number of I/O interfaces. Appropriate for many uses in the business.

Intel Tiger Lake-UP3

The Intel 11th Gen Tiger Lake-UP3 Embedded/Industrial SKU Series powers the MS-C903, which is a powerful computer that offers excellent performance. Up to 64GB DDR4 3200 MHz SODIMM memory support improves multitasking, and a variety of graphics solutions, from Intel Iris Xe Graphics (for i5/i7 SKU) to Intel UHD Graphics (for i3 SKU), meet a range of demands. The MS-C903 offers smooth communication for a variety of applications because to its several I/O interfaces, which include dual display support, audio, USB, serial, GPIO, CANbus, and two RJ-45 ports.

Big Expansion: Offer M.2 as a more compact, dependable, quick, adaptable, and scalable storage and networking solution.

The MS-C903 is a small, high-speed storage and networking solution that offers M.2 and enhances flexibility and performance. It also boasts extensive expansion potential. The system effectively meets a variety of application requirements by allowing for space-constrained designs and multi-expansion for SSD storage through its three M.2 slots, which enable different key types (M, B, and E).

AI Compliant

Demonstrating an intelligent 360-degree remote real-time patrolling system through the use of the Intel OpenVINO AI development toolkit and MS-C903, which can help you deploy solutions more quickly than ever before and satisfy a variety of applications that call for high-performance and low-power computing kernels, like image processing technology. Smart city, smart factory, and AIoT gateway applications can benefit greatly from the flexibility that the AI Box PC provides to machine builders and system integrators in building systems.

Applications like gaming, automation, robotics, medical (with reliable, fanless operation), transportation (compatible with IEC 61373), and gaming (supporting LAN and USB connectivity) are all well suited for the MS-C903. The MS-C903 is an embedded systems technology leader with a strong design, outstanding performance, and substantial expansion capabilities.

MSI MS-C903 Features

Compact-Size Box PC with Intel Tiger Lake-UP3 Processor for Ultra Low-Power Fanless Solution

  • Intel 11th Gen Tiger Lake-UP3 Embedded/Industrial SKU Series
  • 2 DDR4 3200 MHz SODIMM Slots up to 64GB
  • Dual independent displays: DP++ , HDMI
  • 2 2.5GbE LAN with RJ-45
  • 1 M.2 B key (with NANO SIM-holder) support 5G/LTE, 1 M.2 E key
  • 1 M.2 M key, 1 SATA 3.0 for storage (2.5” SSD)
  • 4 USB 3.2 Gen 2, 4 USB 2.0, 4 COM (4 RS-485), 2 COM or 1 CANbus (Option by M.2 Module), DIO, Audio
  • Onboard TPM 2.0
  • 6 opening reserved for antennas
  • Anti-Vibration & Shockproof Design to Compliance IEC 61373
  • Wide operating temperature: -20~70°C
  • Wide Voltage DC-IN 12~24V (OCP & OVP)
  • Ultra-Compact with fanless design

In relation to MSI IPC

Reputed for its quality and stability, MSI is one of the top 3 motherboard manufacturers in the world, having designed and manufactured motherboards for more than 30 years. With dependable, scalable products that provide long-term support, MSI has been entering the embedded and industrial industries since 2006. Premium embedded boards and systems from MSI serve a wide range of uses, such as industrial automation, gaming, utility, digital signage, digital signage, digital signage, ATMs, POS systems, kiosks, and transportation. MSI is a leading global provider of Design and Manufacturing Services (DMS) solutions, with strong R&D and manufacturing skills. This positions the company as a preferred partner in the embedded and industrial industry.

MSI MS-C903 Specs

FeatureSpecification
ProcessorIntel 11th Gen Tiger Lake-UP3 Embedded/Industrial SKU Series
Memory2 DDR4 3200 MHz SODIMM Slots up to 64GB
DisplayDual independent displays: DP++ , HDMI
Maximum ResolutionDisplayPort: 7680 x 4320 @ 60 Hz<br>HDMI: 4096 x 2160 @ 30 Hz
Networking2 2.5GbE LAN with RJ-45
Storage1 M.2 B key (with NANO SIM-holder) support 5G/LTE, 1 M.2 E key, 1 M.2 M key, 1 SATA 3.0 for storage (2.5” SSD)
USB4 USB 3.2 Gen 2, 4 USB 2.0
Serial Ports4 COM (4 RS-485), 2 COM or 1 CANbus (Optional by M.2 Module)
OtherDIO, Audio, Onboard TPM 2.0, 6 opening reserved for antennas
DesignAnti-Vibration & Shockproof Design to Compliance IEC 61373
Operating Temperature-20°C ~ 70°C
Power InputWide Voltage DC-IN 12~24V (OCP & OVP)
CoolingFanless
DimensionsUltra-Compact
