CORSAIR will stop using 80 PLUS certification and instead only use Cybenetics more advanced certifications for both efficiency and noise as the need for more comprehensive power supply units information increases. In the course of this process, CORSAIR is committed to raising customer knowledge of the distinctions between Cybenetics and 80 PLUS, enabling them to choose a PSU with the assurance that it has undergone extensive testing to guarantee peak performance, economy, and acoustics.
Cybenetics Platinum
Why Cybenetics Testing Is now Standard: Delight in the Details
Compared to its predecessor, Cybenetics certification provides a more thorough evaluation of PSU performance. For PC enthusiasts, the shift is effortless since it maintains the familiar tier system of rating efficiency through Bronze, Silver, Gold, Platinum, and Titanium certifications. However, compared to 80 PLUS, Cybenetics testing is significantly more comprehensive and extensive, producing results that are more accurate. Cybenetics has become very popular in the industry lately for a variety of reasons, such as:
Improved Efficiency Metrics: Cybenetics more closely reflects real-world usage by offering a comprehensive efficiency profile across a range of loads, environments, and operational situations.
Noise Level Assessment: Cybenetics offers a noise certification that rates PSUs according to their acoustic performance, ranging from A++ (almost silent) to F (noisy), in addition to efficiency. This is especially important for professionals and gamers who need quieter systems.
More Data Points: Unlike 80 PLUS testing, which only generates a small number of measurements, Cybenetics’ testing technique generates thousands of data points across all loads, guaranteeing more accurate results.
CORSAIR has updated its consumer awareness campaign with a new article on its Explorer platform that provides more in-depth details regarding Cybenetics and 80 PLUS certification.
Cybenetics Power Supply
A comparison of Cybenetics and 80 PLUS PSU ratings
Despite what many people think, choosing a new PSU doesn’t end and begin with wattage. It’s crucial that the PSU can handle all your components’ power usage, but there are other concerns.
After confirming that the PSU has adequate power, you need to think about how efficient it is. Essentially, the amount of power that leaves the PSU and enters your PC at the other end. Your power cost will go down with an efficient power supply unit, and the PSU will be better for the environment overall if there is less wasted electricity. It benefits both parties. Furthermore, some people place a great deal of importance on noise levels, which is determined by a second Cybenetics certification.
With 80 PLUS and Cybenetics being the two most popular certification programs, many more have emerged throughout the years in response to these financial and environmental advantages. Today, they will elucidate the functioning of these two certifications and the reasons for their significance.
WHAT IS MEANT BY 80 PLUS?
The business which is committed to promoting the widespread use of sustainable energy, is the source of the 80 PLUS accreditation. 80 PLUS certifies only a PSU’s efficiency, classifying all PSUs submitted to them into six categories based on efficiency in ascending order: Titanium, Standard, Bronze, Silver, Gold, and Platinum
Your power supply is more efficient the lower it is on this list. To put it briefly, a PSU is better if the metal on the sticker is more elaborate. However, what precisely does each one mean?
Efficiency minimum for 80 PLUS ratings at necessary load percentages (115v Internal)
| STANDARD | BRONZE | SILVER | GOLD | PLATINUM | TITANIUM | |
| 10% load | N/A | N/A | N/A | N/A | N/A | 90% |
| 20% load | 80% | 82% | 85% | 87% | 90% | 92% |
| 50% load | 80% | 85% | 88% | 90% | 92% | 94% |
| 100% load | 80% | 82% | 85% | 87% | 89% | 90% |
These are the efficiency levels that a power supply must meet as of the time of writing in order to receive the appropriate certification. The PSU will normally cost more the higher the certification.
There is a very thorough page that breaks out the 80 PLUS certification method into much more depth than have time to cover here, including efficiency for 230v inputs. Let us now examine the Cybenetics certification.
Cybenetics PSU
AN EXPLAINATION OF CYBENETICS PSU CERTIFICATIONS
In addition to efficiency, noise levels are rated in Cybenetics power supply certifications. There are two certifications based on these two qualities. Efficiency is determined in a manner akin to 80 PLUS, using a scale denoted by how fancy people think metals are. A more conventional method is used to grade the noise levels.
Cybernetics Efficiency ratings
| Bronze | Silver | Gold | Platinum | Titanium | Diamond | |
| Overall Efficiency | ≥82% to <85% | ≥85% to <87% | ≥87% to <89% | ≥89% to <91% | ≥91% to <93% | ≥93% |
| Overall PF (Power Factor) | ≥0.950 | ≥0.960 | ≥0.970 | ≥0.975 | ≥0.980 | ≥0.985 |
| Overall 5VSB Efficiency | >71% | >73% | >75% | >76% | >77% | >79% |
| Vampire Power | <0.25W | <0.22W | <0.19W | <0.16W | <0.13W | <0.10W |
These ratings function somewhat differently than the 80 PLUS accreditation, as you can see. Rather than assigning a rating based on various load percentages, Cybenetics assigns a rating based on many factors:
- Total Effectiveness: This is the primary headline to focus on. The better, the bigger the proportion.
- The term “overall power factor,” or “PF,” describes how much power is really used in a circuit relative to the apparent power that is supplied to it. essentially an alternative term for efficiency. Better still, the higher.
- Overall 5VSB Efficiency: This is just the 5VSB rail’s efficiency in general. Better still, the higher.
- Vampire Power: At last, a little comedy in a world where analytical humour is the norm. This indicates the amount of electricity the PSU consumes while it is not in use. The lower, the better.
Cybenetics Noise Level ratings
| Standard | Standard+ | Standard++ | A- | A | A+ | A++ | |
| Noise Level | 40 dB(A) to 45 dB(A) | 35 dB(A) to 40 dB(A) | 30 dB(A) to 35 dB(A) | 30 dB(A) to 35 dB(A) | 20 dB(A) to 25 dB(A) | 15 dB(A) to 20 dB(A) | <15 dB(A) |
Noise ratings are much simpler to comprehend. A Decibel with an A rating is used to measure these. This gauges how loud something is relative to what the human ear can hear. Further details regarding A-weighted decibels and the other decibel weighting schemes are available in this study by Pierre, Jr., Richard L. St. and Daniel J. Maguire.
Once more, as of this writing, power supply need to meet certain efficiency and noise levels in order to be eligible for the associated prizes. In-depth information is available in the Cybenetics Efficiency & Noise level Certifications Database, but we’re out of time for it today. It is divided into efficiencies for 115V and 230V voltage inputs, much as 80 PLUS. There is a tonne of useful information here for PSU enthusiasts to browse through.
Which rating system is better, Cybernetics or 80 Plus?
It’s impossible to compare them, thus answering this question is difficult. However, there are several considerations.
First off, compared to 80 PLUS, Cybenetics certifications are generally more stringent. This is particularly true when you get to their highest certification levels, when you’ll encounter requirements that 80 PLUS doesn’t cover. The Titanium label, for instance, is the finest certification available from 80 PLUS. Still, a PSU only needs to reach its maximum power at 90% load for this to work. Nonetheless, Diamond, the highest level offered by Cybenetics, demands 93% or higher.
Nevertheless, 80 PLUS and Cybenetics compute efficiency differently and under various testing scenarios. It is therefore impossible to compare the two directly due to the large number of factors involved.
This does not, however, imply that you should prioritise one above the other. When evaluating a power supply, both are useful (if the supply in question has been evaluated by both, of course).
As a discriminating PC builder, you’ll be happy to hear that Corsair exclusively used the Cybenetics certification for they most current PSUs because it is more reliable and, consequently, more beneficial to the final user.

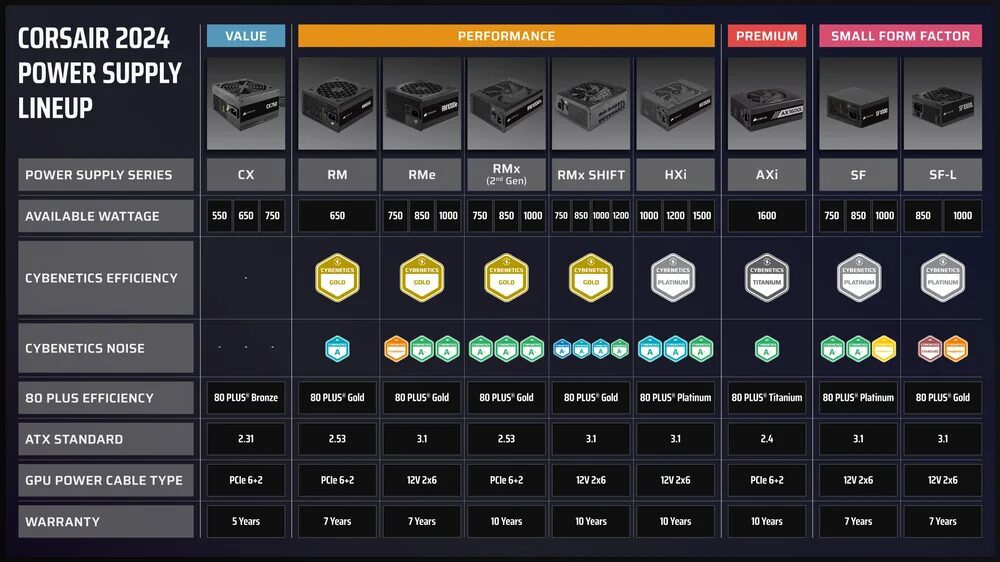

The certified PSU lineup of Corsair
In order to facilitate the switch to the new standard, all CORSAIR PSUs that have been released in the last few years have obtained both the 80 PLUS and Cybenetics certifications. For the most realistic depiction of the PSU’s performance, Cybenetics efficiency and noise ratings will be the only ones used in future CORSAIR power supplies.
CORSAIR’s Certified PSU Lineup
In order to facilitate the switch to the new standard, all CORSAIR PSUs that have been released in the last few years have obtained both the 80 PLUS and Cybenetics certifications. For the most realistic depiction of the PSU’s performance, Cybenetics efficiency and noise ratings will be the only ones used in future CORSAIR power supply.
Cybenetics Best PSU
CORSAIR makes reliable, high-performance power supplies and is known for quality and innovation in PC components. CORSAIR PSUs are trusted by millions globally because:
Cutting-Edge Technology
CORSAIR never stops pushing the envelope in terms of technology to create power supplies that not only provide better performance and dependability but also enhance user satisfaction. This creative strategy is demonstrated by the new RMx SHIFT range, which makes cable management simpler for neater, more effective builds.
Strict Testing and Quality Control
Every CORSAIR PSU goes through a rigorous testing process to make sure it satisfies high standards of quality that go beyond Cybenetics certification.
Global Support and Up to Ten Year Warranties
CORSAIR’s dedication to client satisfaction goes beyond the point of sale. With its extensive global service and support network, CORSAIR guarantees that assistance is always available.
