AtomMan X7 Ti, Minisforum’s New Intel-powered elite Mini PC

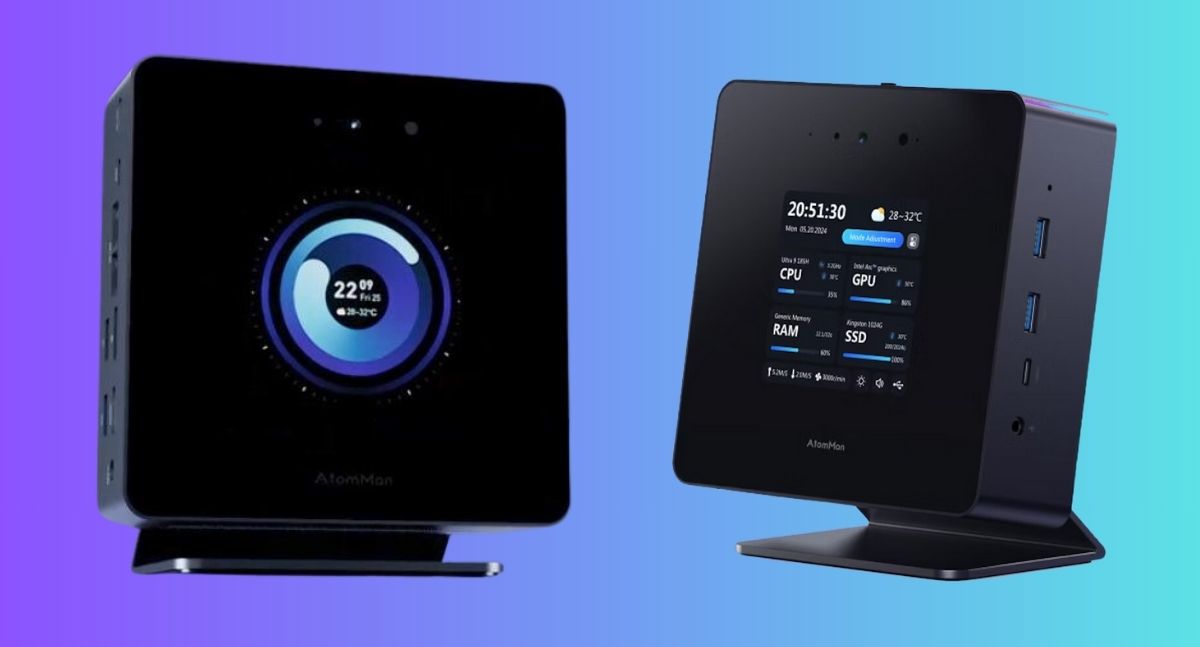

AtomMan X7 Ti mini PC

The AtomMan X7 Ti is a high-end micro PC with a 4-inch touchscreen display and Intel’s Core Ultra 9 processor, which was unveiled by Minisforum. The X7 Ti is designed to appeal to a wide range of users thanks to its impressive specifications, which include a 16-core CPU, an 8-core Arc Iris Xe iGPU, and numerous connectivity options like OCUlink for eGPU compatibility.

The AtomMan X7 Ti, the newest Intel-powered high-end small PC from Minisforum, is set to go on sale officially on May 20 at 19:00 PST.

Driven by Intel’s Core Ultra 9 185H CPU, which has a maximum boost rate of 5.1 GHz and 16 cores and 22 threads, the X7 is quite powerful. Ten efficiency cores based on the Crestmont architecture and six performance cores based on the Redwood design make up the 16 cores. The way the system manages its heat, which Minisforum has addressed by using triple copper heat pipes in conjunction with a cooling fan, will determine how well this CPU performs. Independent testing, however, will paint a clearer picture of how well it performs in actual use.

The Arc Iris Xe iGPU, which has 8 Xe cores (128 EUs) and 8 RT cores for hardware-accelerated ray tracing, is the only graphics processor used by the X7 Ti. Although it’s not primarily intended for gamers, its performance, similar to that of an RTX 2050 laptop GPU, may fall short of their expectations, even though it’s impressive for an iGPU. However, consumers looking for more GPU power can turn to eGPU solutions like the OneXGPU 7600M XT eGPU (curr. $835 on Amazon), as OCulink offers transfer speeds up to 64 Gbps.

Memory and storage options include dual M.2 2280 PCIe 4.0 slots that can hold up to 4 terabytes of flash storage and dual DDR5 5600 MT/s SODIMM slots that can support up to 96 GB of memory. Numerous connectivity choices are available, such as three USB 3.2 Type-A connections, one SD card slot, two 5G RJ45 ethernet ports, HDMI 2.1 and DisplayPort 2.0 for up to four 4K external monitors, and a 3.5 mm headphone socket. Additionally available is an integrated 1080p camera that supports Windows Hello.

Regarding wireless connectivity, the X7 Ti has both Bluetooth 5.4 and Wi-Fi 7. Remarkably, the device also has a 4-inch touchscreen built into the chassis that provides features like personalised themes and system monitoring, adding to its overall attractiveness even though it is a bit of a gimmick.

AtomMan X7 Ti mini PC features

  • Intel Ultra 9 185H CPU Al Mini PC
  • 4-inch flexible touch screen LED display
  • Fast Network 72x5G RJ45 WiFi
  • Quad-Screen Display DP2.0+2xUSB4 + HDMI 2.1
  • Video Conferencing Assistant with Dual Audio and a 1080P camera
  • Cold Wave System: 65W TDP Phase-change cooling
  • Independent OCuLink eGPU with high performance
  • Windows Hello Fingerprint | Face ID
  • Generous Capacity Dual M.2 SSD | SD Card

Native Al Core Power IntelCore Ultra 9

Impressive characteristics characterise the new IntelCore Ultra 9, which offers considerable power and efficiency for high-performance computer operations.

  • Process Technology Intel 4
  • 22 Threads
  • Maximum Frequency: 5.1 GHz
  • 65W TDP maximum
  • 3D high-efficiency Hybrid Building Design
  • 16 Cores
  • 24 MB L3 cache

The new Intel Arc graphics can significantly speed up operations for live streaming, video editing, 3D rendering, and creating masterpieces for 3A games.

  • Eight Xe-cores
  • Eight New Ray Tracing Devices
  • Two-Time Graphics Performance
  • AV1 Codec
  • 128 EU
  • Super Sampling with XeSS

The low-power operation of Al apps is supported by the new AI NPU. Together, CPU, GPU, and NPU make up the three main Al engines that propel creators into the AIGC age.

  • 20 billion or more parameters LLM
  • Text-generated Maps in 1 second
  • 365 Copilot AI PowerPoint
  • Gigapixel Al Topaz Image Enhancement

System of Cold Wave Cooling

With the help of three cooling copper tubes, a large-diameter silent cooling fan, and an exclusive patented compact phase-change cooling module with small size, high efficiency, and long lifespan, it can achieve a stable 65W performance release, giving consistent power for demanding creative work and high-performance gaming.

Adaptable Touch Display

Has the most potent 4-inch touch screen in the business, making it user-friendly and feature-rich. To help you understand the host’s operational state in real time, support features including system monitoring, performance adjustment, time display, and personalised theme switching are available.

Assistant for Videoconferences

The X7 Ti boasts a 1080P HD camera that can be turned on and off physically to preserve privacy. It also supports studio effects and Windows Hello. Moreover, it can be tilted using a stand that has two digital microphones for superior sound quality, making video conferencing a highly collaborative experience.

Big Storage and Memory

Two memory slots, two M.2 ports, and a slot for an SD card
An extensive array of resources for filmmakers and artists

  • Supports up to 96GB of DDR5 5600MHz high-frequency memory via dual-channel DDR5 SODIMM slots.
  • Two PCIE4.0 M.2 M.2 SSD slots 4TB SSD storage maximum.
  • One slot for an SD expansion card Plug in and go at up to 100MB/s.

Quick Networks

With link aggregation capabilities, the dual 5G wired connections provide fast and constant connectivity for network storage and online gaming.

Four-Screen Display

Four 4K@120Hz screens can be linked concurrently to two USB4 ports, an HDMI2.1 interface, and a DP2.0 interface to create a four-screen display and reveal a new, more productive office concept.

Separate OCulink Port

With support for up to 64Gbps of transmission bandwidth, the Mini PC can be quickly transformed into a workstation to handle the computational demands of high-end gaming, professional production, and Al work. It is also simple to enhance the higher performance of additional desktop graphics cards.

  • Does not take up any M.2 interface space.

Next-Generation WiFi7

Outfitted with Intel’s upcoming WiFi-7 wireless card, which has a 320MHz channel bandwidth and a maximum theoretical peak rate of 5.8Gbps.

Minimal Latency

Lower WiFi latency with a larger channel bandwidth

Accelerated speed

With a maximum theoretical rate of 5.8 Gbps, the BE200 can achieve speeds more than twice as fast as existing Wi-Fi 6E modules.

AtomMan X7 Ti mini PC of Specs

AtomMan X7 Ti
NameAtomMan X7 Ti
ProcessorIntel Core Ultra 9 processor 185H
GPUIntel Arc Graphics
MemoryDDR5 Dual channels (Sodimm Slots, up to 5600Mhz, Max 96GB)
StorageM.2 2280 PCIe 4.0 SSD ×1
M.2 2230 PCIe 4.0 SSD ×1
Storage ExpansionSD Card Slot ×1
Wireless ConnectivityM.2 2230 WIFI Support (Wi-Fi 7 ,BlueTooth 5.4)
Video OutputHDMI 2.1×1, DP 2.0 ×1, USB4 ×2
Audio OutputHDMI , DP, 3.5mm Combo Jack ×1
Peripherals InterfaceRJ45 5G Ethernet Port ×2
DP 2.0 ×1
HDMI 2.1 ×1
OCulink Port ×1
USB4 ×2
USB3.2 Gen2 Type-A ×2
USB3.2 Gen1 Type-A ×1
USB2.0 ×1
Power Button ×1(Support Windows Hello)
3.5mm Combo Jack ×1
CameraDMIC ×2
FHD 1080P(Support Windows Hello)
Screen4 inch, 480P
PowerDC 19V (adapter included)
SystemWindows 11
Product Dimension145*145*48.6mm
