AM5 B650E AORUS PRO X USB4 for Ryzen 7000/8000 Series

Gigabyte AORUS B650E

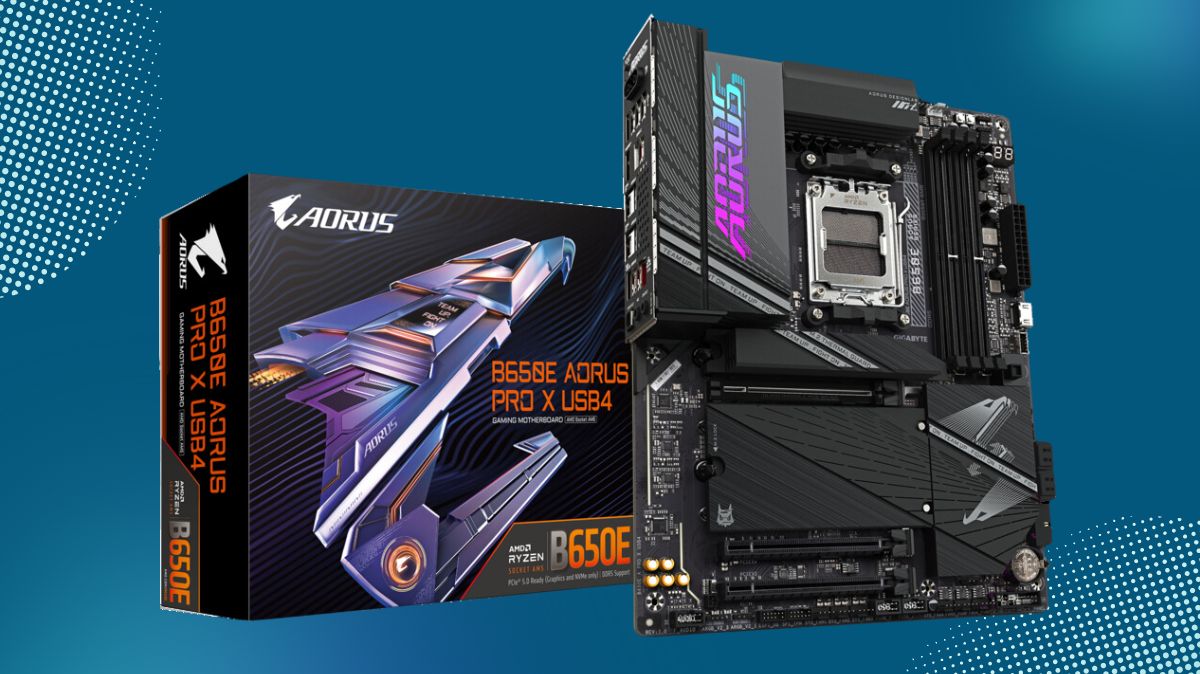

Leading producer of graphics cards, motherboards, and hardware solutions, GIGABYTE Technologies, unveiled the newest all-around motherboard, the B650E AORUS PRO X USB4. Users can take advantage of the most cheap next-generation AM5 platform ahead of time thanks to the B650E AORUS PRO X USB4’s built-in Dual USB4 ports and many leading features.

B650E AORUS

⁠With its wide range of compatibility, effective charging, ultra-HD display connectivity, and blazingly fast and dependable transfer speeds, USB4 has clearly established itself as a crucial standard on the upcoming AM5 platform. The B650E AORUS PRO X USB4 is the only device among the growing number of USB4-ready products on the market with twin native USB4 ports that support all Ryzen processors and offer up to 40 Gbps on each port.

Unlike Thunderbolt 4, which divides bandwidth between data and video, this 40 Gbps total bandwidth is specifically designed for data transfers. In addition to offering full 40Gbps USB4, the B650E AORUS PRO X USB4 also uses 2.5 GbE LAN and GIGABYTE’s Ultra-High Gain antenna to provide excellent Wi-Fi 7 connectivity.

⁠The B650E AORUS PRO X USB4 has a number of unique, DIY-friendly advancements in firmware and hardware that make system building fun and simple. The recently created EZ-Debug Zone centralises control buttons and debug LEDs to offer a practical and well-organized debugging procedure. By combining Wi-Fi antenna plugs into a single adapter, the WIFI EZ-Plug design spares consumers from the tedious screwing that is needed during installation.

Installation of the Sensor Panel is made easier by the Sensor Panel Link’s inbuilt video connector, which eliminates the need to worry about wire routing. While M.2 EZ-Latch Click and M.2 EZ-Latch Plus enable tool-free installation of M.2 SSDs and heatsinks, PCIe EZ-Latch Plus allows screwless installation of PCIe graphics cards. With a revamped UI and UX and a Quick Access panel with customisable option slots, the user-centric UC BIOS has been enhanced.

⁠With its all-digital 16-phase design and 80A SPS per phase, the B650E AORUS PRO X USB4 is capable of unleashing the remarkable performance of AMD Ryzen processors, both current and future. In addition, the improved thermal design features an M.2 thermal shield and an expanded heatsink with a heat pipe in the VRM area, offering high-efficiency heat dissipation to guarantee the system remains cool even when running resource-intensive or multitasking programmes.

B650E AORUS PRO X USB4 Features

  • AMD Socket AM5:Supports AMD Ryzen 8000/ 7000 Series Processors
  • Digital twin 16+2+2 phases VRM solution
  • Dual Channel DDR5:4*DIMMs with AMD EXPO & Intel XMP Memory Module Support
  • PCIe UD Slot X: PCIe 5.0 x16 slot with 10X strength for graphics card
  • WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation
  • EZ-Latch Click:M.2 heatsinks with screwless design
  • EZ-Latch Plus:M.2 slots with Quick Release & Screwless Design
  • Sensor Panel Link:Onboard video port for hassle-free in-chassis panel setup
  • UC BIOS:User-Centred intuitive UX with Quick Access function
  • Ultra-Fast Storage:4*M.2 slots, including 3* PCIe 5.0 x4
  • Efficient Overall Thermal:VRM Thermal Armor Advanced & M.2 Thermal Guard XL
  • Fast Networking:2.5GbE LAN & Wi-Fi 7 with Ultra-high gain directional antenna
  • Extended Connectivity:Dual USB4 Type-C with DP-Alt, HDMI
  • Reliable Audio:8-Ch HD Audio & Audiophile Grade Capacitors

B650E AORUS PRO X USB4

The all-digital power design of every gaming motherboard in the AORUS series provides the highest stability even under demanding workloads.

Flexible connectivity

With next-generation Wi-Fi, storage, and networks, you can enable the best possible connection experience with lightning-fast data transmission speeds.

Two USB4 40Gbps ports with DP-Alt

The two most recent USB4 Type-C ports offer dependable and lightning-fast transfer speeds of up to 40 Gbps apiece. With its wide compatibility, effective charging, and ultra-HD displayport connectivity, USB4 is useful for data-intensive operations like video editing and big file transfers.

All AORUS motherboards are fully metal-coated with the latest thermal design technology. These sturdy heatsinks are designed to maintain the cooling of your system even at high speeds.

Construct with ease

It should be fun and simple to build your own computer. The most DIY-friendly motherboard ever is the AORUS serious one.

EZ-Plug WiFi

By combining Wi-Fi antenna plugs into a single adapter, the WIFI EZ-Plug design spares consumers from the tedious screwing that is needed during installation.

EZ-Latch Designs

Techniques that make it simple to add components without much effort.

Recalling the future

Several methods are included in all gaming motherboards from the AORUS series to optimise DDR5 memory performance and compatibility.

Acquire everything

With GIGABYTE Ultra Durable Technology, they are able to provide gamers a platform that is not only powerful but also dependable and long-lasting. The motherboards of the AORUS series are designed to be stronger and survive longer.

Boosting Collaboration to Increase Performance

AORUS series motherboards are a testament to Gigabyte’s commitment to BIOS refinement. By means of their community partnership, Gigabyte is enhancing the usability of next-generation performance.

Early June will see the release of the versatile B650E AORUS PRO X USB4 motherboard with integrated next-generation AM5.

Gigabyte B650E AORUS PRO X USB4 Specs

FeatureSpecification
SocketAM5
Supported ProcessorsAMD Ryzen 7000/8000 Series
VRM DesignDigital 16+2+2 Phases
Memory Slots4x DIMMs
Memory SupportDual Channel DDR5 with EXPO & XMP Support
PCIe Slots1x PCIe 5.0 x16, 1x PCIe 4.0 x4, 1x PCIe 3.0 x2
Storage4x M.2 Slots (3x PCIe 5.0 x4, 1x PCIe 4.0)
Networking2.5GbE LAN, Wi-Fi 7
USB2x USB4 (up to 40Gbps), Additional USB ports (details not yet available)
Other FeaturesEZ-Debug Zone, WIFI EZ-Plug, Sensor Panel Link, UC BIOS
