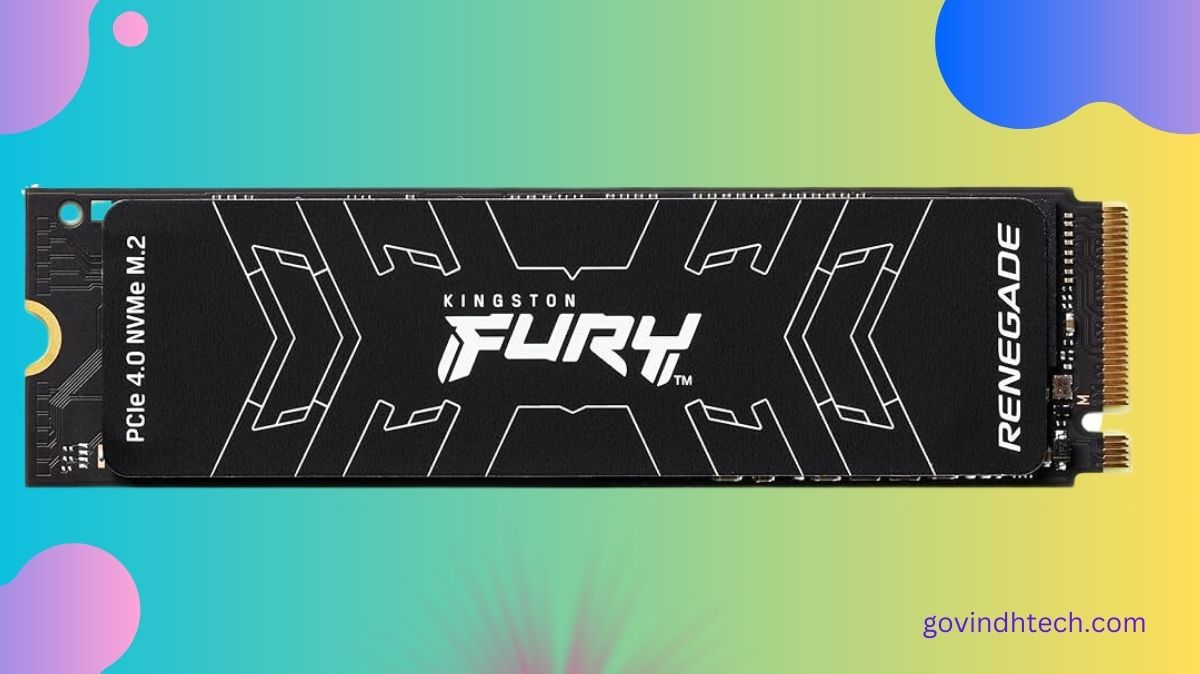

For gamers and hardware enthusiasts wanting extreme performance for PC builds and upgrades, the Kingston FURY Renegade PCIe 4.0 NVMe M.2 SSD delivers cutting-edge performance in large capacities. Through the utilization of the most recent Gen 4×4 NVMe controller and 3D TLC NAND, the Kingston FURY Renegade SSD is able to deliver blistering read/write speeds of up to 7,300/7,000MB/s1 and up to 1,000,000 IOPS1 for incredible consistency and an outstanding gaming experience. Increase the general responsiveness of your system, which will benefit everything from the amount of time it takes for games and applications to load to streaming and recording.
Enhanced stability during peak performance is directly correlated to improved heat management. The combination of a low profile graphene aluminum heat spreader and a thin M.2 drive results in a design that is optimized for high-performance use in gaming laptops and desktops. The optional heatsink model provides an additional layer of thermal dispersion, allowing your PS5TM console to maintain a cool temperature even when the temperature of the game rises. The Kingston FURY Renegade SSD is the ideal team that will keep you at the top of your game since it matches the top-tier performance of the Kingston FURY Renegade memory range.
You may choose from storage sizes ranging from 500 gigabytes to four terabytes to save a comprehensive collection of your favorite games and videos.
Features
- Unbelievable performance with PCIe Gen 4×4 NVMe
- Heatsink and low-profile heat spreader options are both available.
- The form factor is a slim M.2 2280.
- Large storage capabilities of up to 4 terabytes 2.
- PS5 is all set
Principal Attributes
Raise your game with PCI Express 4.0 NVMe
- Gain the upper hand with cutting-edge Gen 4×4 performance that offers powerful read/write rates of up to 7,300/7,000MB/s1 and up to 1,000,000 IOPS1.
Obtain the most out of your motherboard
- A powerful component with a small M.2 form factor that will improve both your gaming setup and your laptop.
More space to move and play
- Obtain all of the most recent titles, as well as any DLC that may be available. You may store all of your favorite games and movies in its large capacities of up to 4 terabytes each. Performance with high capacities.
Heat spreader with a low profile made of graphene and aluminum
- During periods of heavy use, your drive will remain cool thanks to sophisticated thermal dissipation. Enhances overall performance while fitting into even the most constrained areas of gaming laptops and motherboards.
PS5 is all set
- Storage solutions that completely change the game and are meant to maximize your fun. An additional layer of thermal dispersion is provided by the optional integrated aluminum heatsink type in order to cool the drive and keep the drive operating at its full performance.
PCIe 4.0 NVMe M.2 SSD Specifications
| Form factor | M.2 2280 |
| Interface | PCIe 4.0 x4 NVMe |
| Capacities | 500GB, 1TB, 2TB, 4TB |
| Controller | Phison E18 |
| NAND | 3D TLC |
| Sequential read/write | 500GB – 7,300/3,900MB/s 1TB – 7,300/6,000MB/s 2TB – 7,300/7,000MB/s 4TB – 7,300/7,000MB/s |
| Random 4K read/write | 500GB – up to 450,000/900,000 IOPS 1TB – up to 900,000/1,000,000 IOPS 2TB – up to 1,000,000/1,000,000 IOPS 4TB – up to 1,000,000/1,000,000 IOPS |
| Total Bytes Written (TBW) | 500GB – 500TBW 1TB – 1.0PBW 2TB – 2.0PBW 4TB – 4.0PBW |
| Power consumption | 500GB – 50mW idle / 0.34W avg / 2.7W (MAX) read / 4.1W (MAX) write 1TB – 50mW idle / 0.33W avg / 2.8W (MAX) read / 6.3W (MAX) write 2TB – 50mW idle / 0.36W avg / 2.8W (MAX) read / 9.9W (MAX) write 4TB – 50mW idle / 0.36W avg / 2.7W (MAX) read / 10.2W (MAX) write |
| Storage temperature | -40°C~85°C |
| Operating Tempetemperaturerature | 0°C~70°C |
| Dimensions | Heat spreader: 80mm x 22mm x 2.21mm (500GB-1TB) 80mm x 22mm x 3.5mm (2TB-4TB) Heatsink: 80mm x 23.67mm x 10.5mm |
| Weight | Heat spreader: 500GB-1TB – 7g 2TB-4TB – 9.7g Heatsink: 500GB-1TB – 32.1g 2TB-4TB – 34.9g |
| Vibration operating | 2.17G peak (7-800Hz) |
| Vibration non-operating | 20G peak (20-1000Hz) |
| MTBF | 2,000,000 hours |
