AMD Ryzen 9000 Series
MSI presents AM5-based AMD Ryzen 9000 Series CPUs with enthusiasm. Ryzen 9000 Series processors with 4nm CPU process technology will revolutionize computing for gamers and content creators with unrivalled speed, efficiency, and adaptability. On August 8, Ryzen 7 9700X and 9600X launch, then on August 15, 9950X and 9900X. Some CPUs will have 16 cores, 32 threads, 64MB L3 cache, 170W TDP, and 5.7GHz boost clocks.
Along with improving DDR5 memory speed, the AMD Ryzen 9000 Series will also enable PCIe 5.0 for the GPU and M.2. Notably, the AMD Ryzen 7 9700X outperforms the AMD 3D V-cache CPU from the first generation by about 12% in terms of total performance. All of these processors can be used with the AM5 socket; to ensure flawless integration, AMD 600 Series motherboards and Ryzen 9000 CPUs need be updated to the most recent BIOS, which can be found on MSI’s product support page.
The AMD Ryzen 9000 Series is engineered to run more quietly, more effectively, and with reduced power consumption. These AMD Ryzen 9000 Series CPUs are a great option for demanding applications because they all have reduced TDPs, which also translate into improved performance.

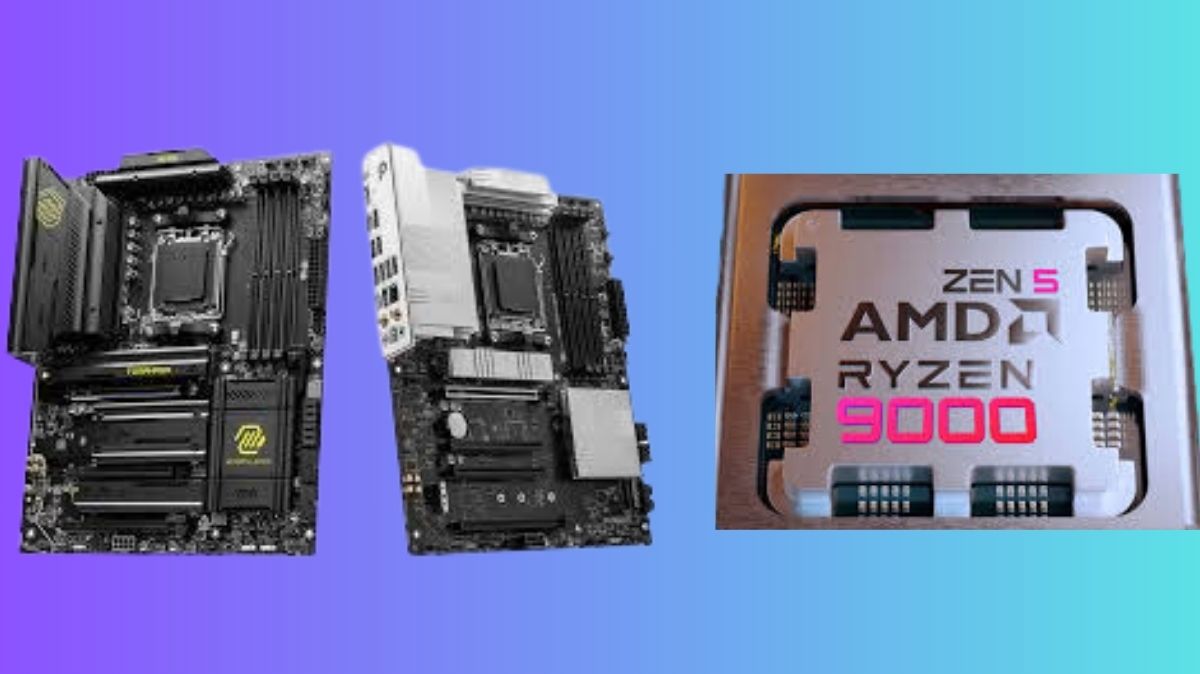

Two new MAG X870 TOMAHAWK WIFI & PRO X870-P WIFI from MSI were unveiled at Computex 2024, and they support the future AMD Ryzen 9000 Series processors. Furthermore, customers can expect a wide array of features from the MPG and MEG series, providing a variety of choices to meet their needs. These two motherboards feature elegant patterns and a completely new design.

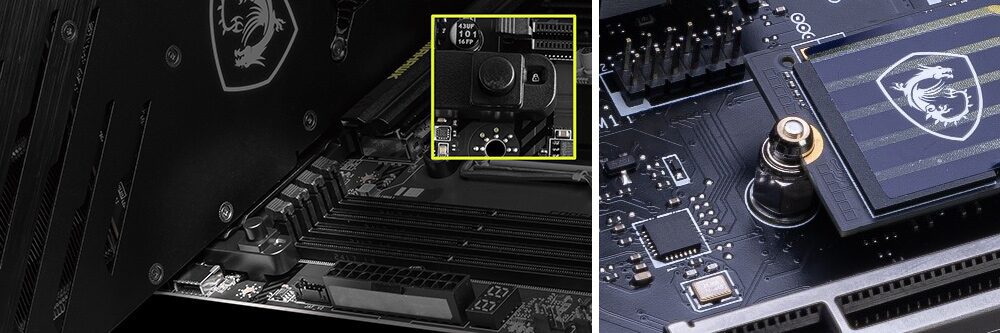

These motherboards are ideal for beginning builders and enthusiasts since they come with a variety of the newest DIY-friendly advancements that are exclusive to MSI. Even more effective installation of the M.2 heatsink is made possible by the EZ M.2 Clip II and EZ M.2 Shield Frozr II. The Screwless M.2 Frozr has an inventive screwless construction that makes removal simple. Squeeze the side clasp to release it completely. It’s as easy to install as it is to remove: all you have to do to remove the M.2 SSD is pull it slightly to the left.
Simultaneously, a single button press can remove huge graphics cards with ease thanks to the EZ PCIe Release. Furthermore, by removing the requirement to twist and secure the antennae, the EZ Antenna makes it easier for customers to install and remove the Wi-Fi antenna connectors with only one hand.
AMD Ryzen 9000 series processors can also utilise the MSI BIOS’s proprietary Performance Switch overclocking feature. Performance Switch combines MSI’s overclocking settings with AMD’s default Precision Boost Overdrive (PBO) in three tiers of presets plus an advanced option. Both single-core and multi-core CPU performance is greatly improved by this potent combo.
MSI is pleased to present updates to its BIOS, which include the addition of the new OPP (Optimised Performance Profile) and two potent memory tuning options. Users will benefit from unmatched flexibility and performance optimization thanks to these features.
The first feature, “Memory Try It!,” provides a simple and rapid method for improving memory function. Users can try out a profile by choosing it from the dropdown menu. This function detects the RAM chip automatically and offers appropriate overclocking settings, such as tight timing and high frequency. By utilising “Memory Try It!,” customers can fully use their memory modules by exploring a variety of tight-timing and high-frequency settings within the BIOS.
The second feature is MSI’s own tuning software called “High Efficiency Mode,” which is designed to improve gaming performance. This novel method lowers latency and boosts bandwidth to optimise widely used memory modules. Four different RAM time settings are available in “High-Efficiency Mode”: Tightest, Tighter, Balance, and Relax. This guarantees the ideal balance of performance and stability by enabling customers to determine the best configuration depending on the quality of their memory modules.
AMD is launching the Optimised Performance Profile (OPP), its most recent memory-optimization option. This innovative technology finds the ideal memory frequency sweet spot at DDR 6000MHz to improve performance for AMD Ryzen 9000 Series processors.
By utilising the memory DIMM’s pre-existing EXPO profile, the OPP automatically adjusts its speed and timing to optimally complement the motherboard CPU. AMD is able to achieve maximum performance and stability by pushing memory speed and timing profiles to new limits thanks to this creative technique. Users may unlock their systems’ full potential and reach new heights of dependability and efficiency with OPP.
With the impending Ryzen 9000 Series processors, AMD has unveiled a number of cutting-edge software solutions to improve stability and performance. Memory Overclocking On The Fly (OC OTF) combines MSI’s default memory training with overclocking settings to offer a smooth OS transition. Ryzen Master Software allows users to easily switch between JEDEC and EXPO memory speeds after OC OTF is activated in the BIOS.
By operating at industry-standard JEDEC timings, this capability guarantees stability for crucial workloads while enabling gamers to take advantage of the quicker, albeit possibly riskier, EXPO timings during off-peak hours. World record over clockers also find this capability very helpful as it allows them to safely boot into Windows with aggressive timings and then switch over for validation. Users can enjoy improved performance with OC OTF without sacrificing convenience or stability.
A holdover from the Ryzen 7000 series, Curve Optimizer allows SMU/PBO aware undervaluing. Through the “Curve Optimiser” processes, it dynamically modifies the voltage-frequency curve to provide varying voltage across the curve with higher voltage at higher frequencies.
In order to maximize undervaluing, users can further adjust the voltage curves using Curve Shaper. It allows for the controlled addition or subtraction of voltage steps over 15 distinct frequency-temperature bands. Overall stability and performance are improved by this exact modification, which lowers the voltage in stable regions and adds voltage when instabilities are seen. All cores are covered by the redesigned curve, which the Curve Optimiser can further modify.
These processors are AM5 socket compatible, and AMD Ryzen 9000 Series CPUs and AMD 600 Series motherboards that are already in use can be easily integrated by updating to the most recent BIOS, which is easily found on MSI’s product support page. For complete compatibility and best performance, MSI 600 Series motherboards should also be updated to BIOS AGESA Combo PI-1.2.0.0a Patch A. to learn more about the motherboards in the MSI AMD 600 series.
MSI continues to offer cutting-edge, approachable solutions for optimising system performance with these new capabilities. Gamers should anticipate more immersive game experiences and increased system responsiveness in general.
