A Storage Area Networks Master Data Control

Enterprises often use a Storage Area Networks for data storage. A dedicated high-speed network or subnetwork links shared storage pools for several servers. SANs, often the network underlying servers, automate data backup and storage and monitor backup processes. This network architecture helps corporate computing by making data accessible via hardware and software.

As your company grows and workloads increase, a Storage Area Networks will likely improve performance and extend capabilities to meet changing storage demands.

Why Are A Storage Area Networks Used?

For business-critical applications and high-performance computing operations like desktop virtualization, SAN systems offer performance, availability, security, and dependability. These usage scenarios need these a Storage Area Networks features:

Centralized Storage

Data may be consolidated in a storage array or digitally via management software by taking storage from individual servers and linking shared pools to numerous systems. A centralized infrastructure stores, secures, and manages data in both cases.

Consolidating Data

Data is simpler to manage with centralized storage. Data consolidation simplifies storage access and scaling by reducing server management.


Data access is not interrupted by a single point of failure with interconnected storage. Thus, SANs provide business-critical application availability and resilience. A Storage Area Networks ‘ interconnected nature allows them to overcome network channel disruptions without affecting corporate operations.

Backup and Recover Data

Multiple storage devices, data replication, and backup and recovery are easy with SAN. To better data backup and recovery, you may change SAN parameters like server proximity.

Enhanced Performance

Due to their increased input/output capabilities, high availability, and low latency, these networks are essential for businesses building infrastructure to support high-end computing, such as virtualization, enterprise resource planning, and other heavy-duty applications. High-performance hardware and flash storage may be added to a Storage Area Networks.

Differences between SAN and NAS

SANs and NASs are both network-based storage infrastructures, although they have distinct advantages and capabilities.

Single-storage NAS systems operate on one network. Their simplified architecture makes them cheaper and easier to install than a Storage Area Networks. However, its simplicity limits their high-performance computing capability.

However, A Storage Area Networks of devices and servers can fulfill corporate companies’ performance, availability, and reliability needs.

NAS is ideal for many small and mid-sized enterprises, while SAN is commonly needed for corporate storage.

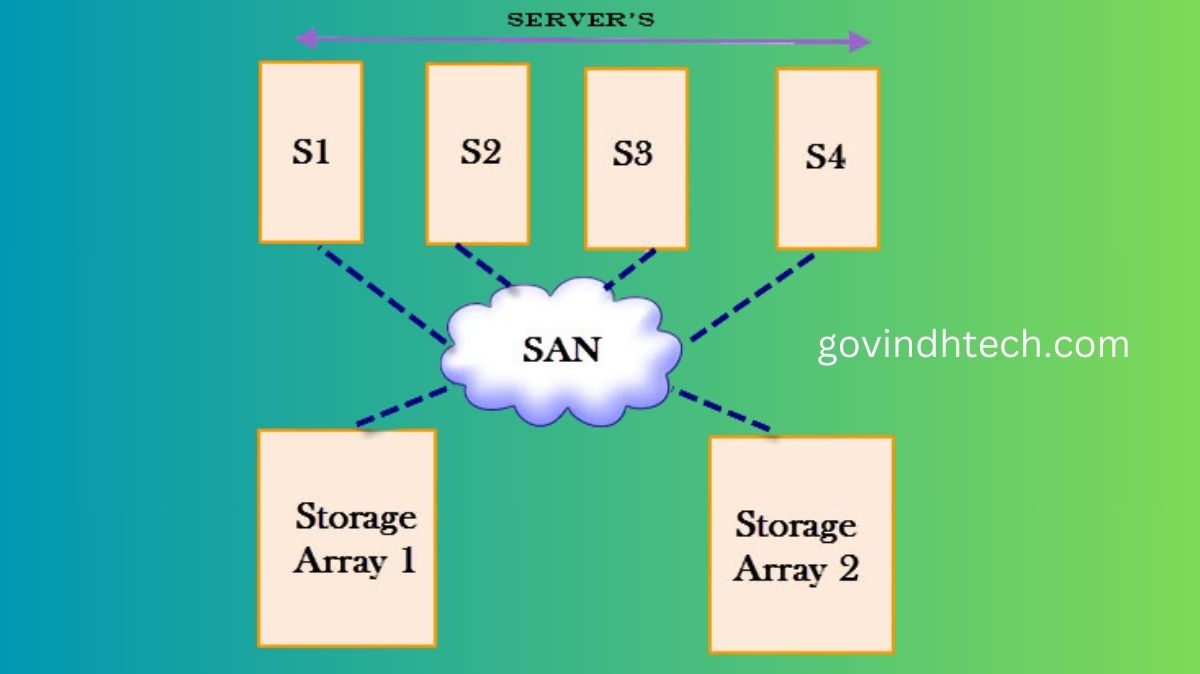

SAN Architecture Components

Few components may be used to build an enterprise-grade SAN system, each with a bespoke configuration to fit your organization’s requirements.

Storage Devices

Several storage devices must be linked. Hard drives, SDDs, flash drives, and cloud-based object storage allow data movement, retrieval, and scalability.

Environment Servers SAN

A Storage Area Networks need interconnected server systems. Instead of internet-accessible cloud servers, they are company-owned and networked.

Starters and Goals

On an iSCSI SAN, initiators and targets transmit and receive network instructions. A hardware or software server initiates the command, and a SAN storage resource receives it.

Storage Arrays

Storage devices must be arranged into a RAID scheme for SAN security and dependability. Businesses that need more SAN performance and reliability may pick a higher RAID level. RAID 10 may be needed for enterprise virtualization.

What Are SAN Benefits?

Block-based SAN storage gives enterprises several advantages and new possibilities. This storage method offers the following benefits, albeit their usefulness depends on each SAN’s configuration:

High-availability and reliability

A Storage Area Networks linked network fabric enables many pathways between storage resources and the host, preventing single-point failure communication interruptions. SAN RAID setups may provide reliable storage.

Scalability, Flexibility

Enterprise enterprises may grow their SAN ecosystem of storage devices and host servers since it is almost endless. Even with a rudimentary SAN, your organization will profit from a flexible storage design.


Fiber connection and a shared storage network enable high-volume computing in SANs. SAN environments can support resource-intensive, high-performance computing activities because to their speed and capacity.

Backup, Disaster Recover

Data backup is also successful in SAN environments due to data sharing. Businesses may increase data security and reduce data loss costs and interruptions by establishing a SAN with consistent backup and recovery methods.


Enterprise businesses can benefit from cost savings from SAN design due to their large storage demands. Setup may meet your storage demands, assuring cost-effectiveness.

Variety of SAN Solutions

Each SAN uses protocols to connect initiating software and target storage devices. SANs communicate via one or more protocols, depending on devices and routers.

The most prevalent SAN protocols are:

Fiber Channel SANs

Most a Storage Area Networks use the Fibre Channel protocol (FCP), which combines SCSI instructions with fiber connections for fast data transfers. Fiber SANs cost more but provide high speeds and low latency that many corporate enterprises demand.

SANs using Ethernet

Ethernet a Storage Area Networks utilize Ethernet to transport data between servers and storage instead of fiber lines. Ethernet SANs are inexpensive to set up and administer, but their slower speeds and increased latency might hinder network performance.


Ethernet-based SAN protocol iSCSI. The normal TCP/IP network sends SCSI messages between initiators and targets in iSCSI.

FCoE Storage Area Networks

An novel storage system, Fibre Channel over Ethernet (FCoE), facilitates fiber communications across Ethernet networks. This SAN lets companies utilize Ethernet infrastructure to communicate at rates near to fiber.

SAN Selection Considerations

A Storage Area Networks may be configured in various ways, making it difficult to choose the right one for your organization. First assessing storage requirements simplifies this approach for most firms.

Storage Needed

How much storage does your company need? Remember: SANs may be extended and modified, so you can concentrate on current and future storage demands. If storage demands grow, your SAN may add devices.

The Budget and Performance

Cost and performance usually go together. You may require a more robust FCP-based SAN for top-notch performance. If price is more important than performance, cheaper hardware and Ethernet infrastructure may be better.

Protecting Data and Scalability

Storage devices have different software, design characteristics, and protocol compatibility that affect SAN scalability and data protection. Buy hardware with new security features and near-limitless scalability to improve your SAN’s stability and value.

Use Seagate for SAN Infrastructure

Success in a SAN system with various storage devices requires interoperability and easy communication. This makes Seagate Exos CORVAULT data storage solutions perfect for a Storage Area Networks. With data center growth in mind, CORVAULT’s simple architecture and efficient block storage offer performance and reduced storage infrastructure TCO.

Innovative data protection features from CORVAULT strengthen your SAN’s security. Seagate Autonomic Distributed Allocation Protection Technology (ADAPT) speeds up rebuilds and improves storage efficiency and sustainability, while the hard drive’s autonomous drive regeneration (ADR) features allow self-healing.
