NVIDIA Grace CPU C1 Arm Processor For The Data Center

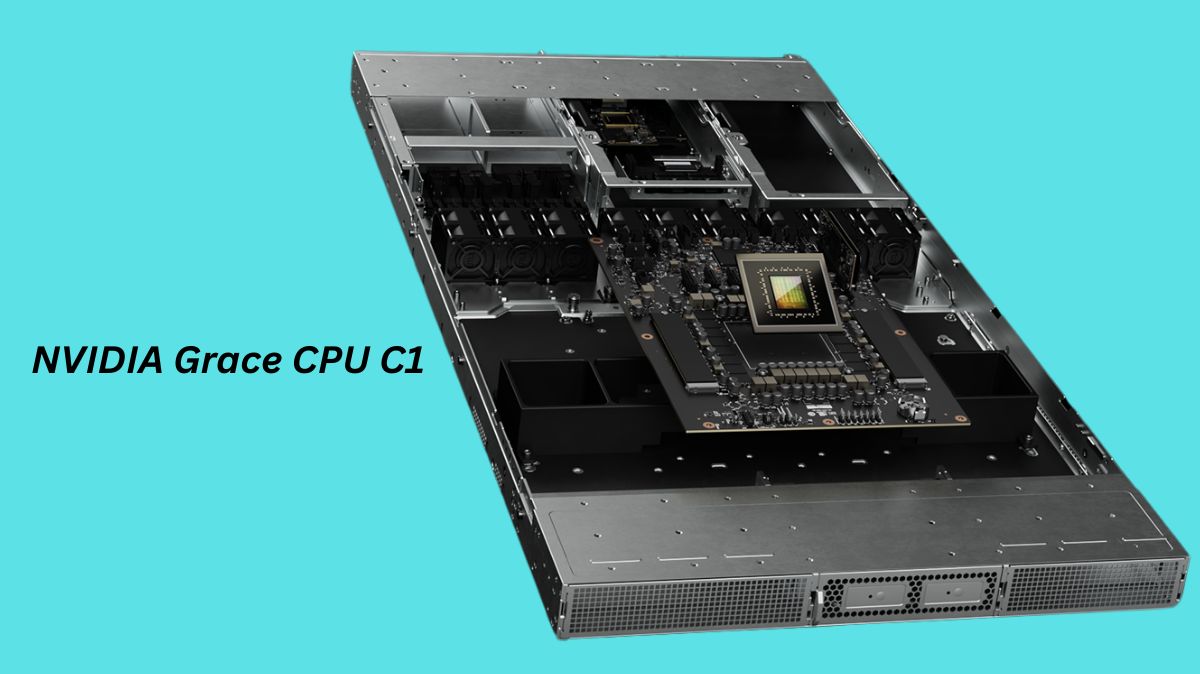

NVIDIA Grace CPU C1

Because of its speed and energy efficiency, NVIDIA’s Grace CPU C1 is revolutionizing data centers and edge computing. Utilizing Arm’s Neoverse V2 architecture, the NVIDIA Grace CPU C1 offers unmatched capabilities to address AI, HPC, and data-intensive work demands.

Architecture

• Core Design: Arm Neoverse V2 architecture-based 72-core CPU.
• Support for SVE2: For effective vector processing, each core has four 128-bit Scalable Vector Extensions 2 (SVE2) units.
• Production Method: TSMC’s 4N (4nm) proprietary process node was used for fabrication.
• Interconnect: Makes use of NVIDIA Scalable Coherency Fabric (SCF), which provides 3.2 TB/s bisection bandwidth, allowing for fast data movement between memory, I/O, and CPU cores.
• Memory Architecture: Capable of supporting up to 480 GB of LPDDR5X ECC memory with a bandwidth of up to 500 GB/s.
• Cache: Reduces memory latency for compute-intensive workloads with its sizable 117 MB combined L3 cache.

Performance

• Gains in Real-World Workload:
  • Faster by up to 2.3× in microservices
  • Up to two times quicker when processing data that requires a lot of memory
  • In computational fluid dynamics, up to 1.9× quicker
• STREAM Triad Efficiency: High memory throughput and parallel processing are demonstrated by over 90% utilisation across all cores.
• Power Efficiency: With LPDDR5X memory and optimised Arm cores, it offers competitive or superior performance compared to top x86 CPUs at a far lower power drain.

Features

• Arm-Based 72 Cores: Based on the high computational density of the next-generation Neoverse V2.
• LPDDR5X ECC Memory: The first server-class CPU that offers low power consumption and high bandwidth with ECC-enabled LPDDR memory.
• Energy-Efficient Design: Optimises for data centres with stringent power and cooling constraints by using a fraction of the memory power of DDR5.
• High Bandwidth I/O: Fast communication across the die is made possible by SCF.
• Compatible with NVIDIA Software Stack: CUDA, HPC SDK, and AI frameworks are among them.
• Security: Secure boot, ECC memory, and Arm system-level security features.

You can also read AMD Ryzen 5 9600X, Features, Architecture And Specifications

Gaming

• Not Designed for Consumer Gaming: The NVIDIA Grace CPU C1 is not designed for gaming, but rather for data centers, edge computing, HPC, and AI inference. Current models do not come with a separate GPU for gaming and do not have integrated graphics.
• Possible Gaming Use in Cloud: Grace may be utilised in cloud gaming servers even if it isn’t a gaming CPU in and of itself, particularly when paired with NVIDIA GPUs like L4 or Hopper for rendering. However, this is not local gameplay; it’s a server job.

Advantages

• Exceptional Energy Efficiency: Compared to DDR5, LPDDR5X significantly lowers power consumption while increasing bandwidth.
• High Memory Bandwidth: For memory-bound tasks like scientific applications and simulations, 500 GB/s is ideal.
• Scalable Compute Fabric: Low latency and consistent performance across cores are guaranteed by SCF.
• Dense Performance: A 72-core configuration provides computing density that is ideal for cloud-native settings, virtualisation, and AI inference.
• Ecosystem Integration: Through the NVLink-C2C interface, it smoothly integrates with Grace Hopper (Grace CPU + Hopper GPU) for AI-heavy applications.
• Arm Architecture: For some workloads, it could be easier to scale and perhaps more secure than x86.

Disadvantages

• Lack of x86 Compatibility: Not suitable for applications designed for x86 instruction sets or conventional enterprise workloads.
• Not Consumer-Oriented: No support for gaming use cases or desktop-class graphics.
• Limited Standalone Use: For optimal performance, it is frequently expected to cooperate with other NVIDIA components (such as GPUs or SmartNICs).
• Availability Constraints: Since it is a specialised component, small businesses or general system builders would not have easy access to it.
• Unverified Performance in General-Purpose Computing: The majority of benchmarks come from NVIDIA; at the time of introduction, there was little independent testing.

You can also read MediaTek Kompanio 900T For Enhanced Mobile Computing

NVIDIA Grace CPU C1 Price

Summary

Arm’s most cutting-edge server architecture powers the data center-focused, energy-efficient, and AI-optimized NVIDIA Grace CPU C1. With industry-leading bandwidth and power efficiency, it performs very well in scalable and memory-intensive computing activities. It isn’t designed for gaming or ordinary consumer computing, though, and its software compatibility with non-NVIDIA products may make uptake difficult.

NVIDIA Grace CPU C1 Specifications
