AMD Ryzen 5 9600X, Features, Architecture And Specifications

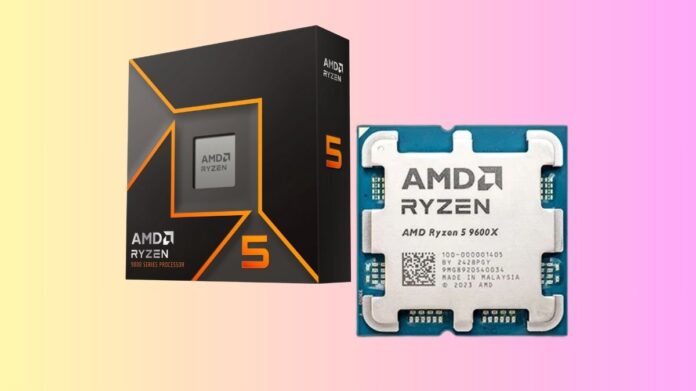

AMD Ryzen 5 9600X

Part of the Ryzen 9000 series, the AMD Ryzen 5 9600X is a mid-range desktop CPU built for gamers and content producers looking for a mix between efficiency and performance. In addition to analysing its benefits and drawbacks, this study explores its features, architecture, gaming performance, memory support, and power efficiency.

Features and Specifications

• Design: Zen 5
• Node of Process: TSMC The I/O die is 6nm and the core complex die (CCD) is 4nm.
• There are six cores and twelve threads.
• Base/Boost Frequencies: 3.9 GHz and 5.4 GHz
• Total cache size: 38MB (32MB L3 + 6MB L2).
• 65W TDP
• The AM5 socket
• Official Memory Support: DDR5-5600 MT/s, with the possibility of higher overclocked rates
• Support for PCIe: PCIe 5.0 with 24 lanes

Zen 5 Enhancements in Architecture

The Ryzen 5 9600X is based on AMD’s Zen 5 microarchitecture, which is a significant advancement above the Zen 4:

Wider Front-End: A broader instruction fetch and decode pipeline in Zen 5 enables more efficient use of execution units.

Improved Branch Prediction: Instruction fetch performance in branch-heavy applications is improved by the new two-ahead branch predictor, which can forecast up to two branches every clock cycle.

Increased ALUs: The throughput of integer operations has been enhanced by 50% due to the increase in the number of Arithmetic Logic Units from four to six.

Enhanced Floating Point Units: In order to improve performance in vector and AI workloads, Zen 5 increases AVX-512 support with a native 512-bit datapath and adds four floating-point pipes (up from three in Zen 4).

These architectural modifications improve single-threaded and multi-threaded performance by increasing Instructions Per Cycle (IPC) by about sixteen percent.

You can also read Qualcomm Snapdragon 778G Performance, Specs And Devices

Gaming Performance

When it comes to gaming, the Ryzen 5 9600X is a little improvement over the 7600X. According to benchmarks, the average performance boost across a range of games is about 1%, with certain games seeing improvements of up to 5%. Despite being minor, these enhancements increase power efficiency.

The 9600X outperforms Intel’s Core i5-14600K in gaming while using less power. This makes it suitable to gamers seeking energy economy and performance.

Memory Support and Overclocking

DDR5-5600 MT/s memory is officially supported by the Ryzen 5 9600X, an improvement over the previous generation’s 5200 MT/s capability. Overclocking memory modules to DDR5-8000 MT/s has been successfully reported by users, particularly when used with motherboards from the 800-series.

By introducing real-time memory overclocking, AMD’s Ryzen Master software enables users to modify memory timings and speeds without having to restart their computers. The new Memory Optimised Performance Profile also makes it possible to automatically transition between JEDEC and EXPO profiles, maximising latency or bandwidth according to the application that is currently executing.

You can also read AMD EPYC 9575F Vs Intel Core i5 14600K Features, Use Cases

Power Consumption and Efficiency

The remarkable power efficiency of the Ryzen 5 9600X is one of its most notable characteristics:

Reduced TDP: With a TDP of 65W, the 9600X significantly lowers the 7600X’s 105W TDP.

Lower Power Draw: In contrast to its predecessor’s peak consumption of 142W, the 9600X uses up to 88W while under load.

Improved Thermal Performance: Under comparable circumstances, the 9600X works at temperatures about 7°C lower than Zen 4 chips because of a 15% increase in thermal resistance and an optimised die architecture.

Because of these enhancements, the 9600X may be used in systems with moderate cooling solutions and in small builds.

Advantages

Energy Efficiency: For mid-range systems, the 9600X is an energy-efficient option because to its lower TDP and power consumption.

Architectural Improvements: Performance is improved overall with significant improvements in IPC, branch prediction, and execution units brought about by Zen 5.

Memory Overclocking: Real-time overclocking and support for faster memory speeds provide enthusiasts freedom.

Compatibility: The AM5 socket prolongs the life of the CPU by guaranteeing compatibility with both current 600-series motherboards and upcoming 800-series boards.

Thermal Performance: Higher-end cooling methods are not as necessary because to improved thermal design, which enables lower operating temperatures.

You can also read BPI Attack Bypasses Spectre v2 Intel Defences On Intel CPUs

Disadvantages

Modest Performance Gains: Because of the very small performance gains over the 7600X, current Zen 4 users may find the upgrade less alluring.

Multithreaded Performance: The 9600X is not as fast as Intel’s Core i5-14600K when it comes to workloads that are extensively multithreaded.

Value Proposition: Other CPUs, such as the Ryzen 7 7700X or Intel’s products, could offer greater value for some consumers given its performance and price range.

No Included Cooler: In contrast to certain earlier AMD CPUs, the 9600X lacks a cooling, which raises the system’s total cost.

Price

Conclusion

The AMD Ryzen 5 9600X is a well-rounded option for those looking for a mid-range desktop CPU with strong performance and low power consumption. The little improvements over its predecessor and its less spectacular multithreaded capabilities may make some users look at other solutions, even though its gaming and single-threaded performance are praiseworthy. However, its enhanced thermal performance, architectural innovations, and AM5 platform compatibility make it a good option for new construction projects that prioritise lifespan and efficiency.

You can also read AMD Ryzen 9 9950x Vs AMD Ryzen 7 9800x3d For Gaming

AMD Ryzen 5 9600X Specifications
