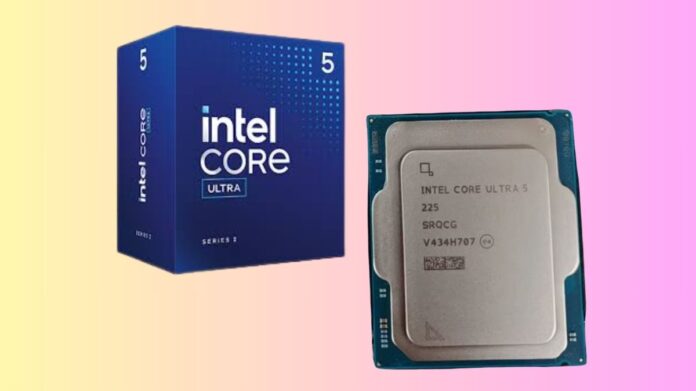

Intel Core Ultra 5 225 Specs, Performance, and Price

The Intel Core Ultra 5 225 is a desktop processor. As the codename Arrow Lake, it is a member of the Intel Core Ultra Processors (Series 2). It is said to be a top-tier chip that, when combined with a quality video card, would be fantastic for gaming.

Core Architecture and Threads

• The processor contains ten cores and ten threads in total.
• These cores are divided into two categories:
  • Performance-cores, or P-cores: six threads and six cores. They feature a turbo frequency of up to 4.9 GHz and a base frequency of 3.3 GHz.
  • the efficient-cores, or E-cores: Four cores, four threads. They feature a turbo frequency of up to 4.4 GHz and a base frequency of 2.7 GHz.

You can also Intel Pentium Gold G7400 Benchmark, Specs and Price

The cache

• The processor has an Intel Smart Cache of 20 MB.
• A thorough cache breakdown per core type is also given:
  • CPU Performance Package: Instruction L1 6 x 64 KB, 6 x 48 KB for the L1 data cache, 6 x 3072 KB for the L2 cache, and 20 MB for the L3 cache.
  • Effective CPU Package: L1 Instruction Eff Four 64 KB of cache, four 32 KB of effective L1 data cache, and one 4096 KB of effective L2 cache.

Socket and Power

• FCLGA1851 is the socket type for this processor.
• 65 W is the typical TDP (thermal design power).
• A maximum of 121 W of turbo power is possible.

Memory Support

• A maximum of 192 GB of memory is supported.
• It has a maximum speed of 6400 MT/s and supports DDR5 memory.
• It can be configured with dual-channel RAM.

Integrated Graphics and Display Support

With two Xe-cores, the processor has Intel Graphics.

• 0x7D67 is the ID of the Intel Graphics on-board graphics card model.
• It can accommodate up to four displays at once.
• Embedded DisplayPort (eDP) 1.4b, DisplayPort 2.1, and HDMI 2.1 are supported on-board graphics outputs.
• The graphics card is compatible with OpenGL version 4.5 and DirectX version 12.0.
• On-board graphics have a base frequency of 300 MHz and a maximum dynamic frequency of 1800 MHz.

AI Proficiency (Intel AI Boost)

• The processor has an NPU called Intel AI Boost.
• NPU performance can reach 13 TOPs.
• The CPU, NPU, and GPU together provide up to 23 TOPs of processor performance.
• The AI software frameworks that the CPU supports are WebNN, ONNX RT, Windows ML, OpenVINO, and DirectML.
• The AI software frameworks that the NPU supports are WebNN, ONNX RT, Windows ML, OpenVINO, and DirectML.
• There is support for sparsity.
• It is compatible with Windows Studio effects.
• Intel Deep Learning Boost (Intel DL Boost) is available on the CPU and GPU.

You can also read Intel 8470Q: High-Performance 4th Gen Xeon Scalable CPU

Intel Core Ultra 5 225 processor Benchmarks

Other Technologies and Technical Features

• It comes with Intel AI Boost and Intel Graphics.
• It has a maximum of 24 lanes and supports PCI Express slots versions 4.0 and 5.0.
  The instruction sets that are supported are SSE4.1, SSE4.2, and AVX 2.0.
• It is compatible with Scalability 1S.
• Idle States, Execute Disable Bit, Improved Intel SpeedStep Technology, Intel Secure Key, Intel Turbo Boost Technology 2.0, Intel Trusted Execution Technology, Intel Quick Sync Video Technology, Intel AES New Instructions (Intel AES-NI), and Thermal Monitoring Technologies are among the features.
• Intel Virtualisation Technology (VT-x), Intel VT-d and VT-x with Extended Page Tables (EPT) are supported virtualisation technologies.
• Intel 64, Intel Speed Shift Technology, Intel OS Guard, Intel Boot Guard, Intel VMD, Mode-based Execute Control (MBE), Intel Thunderbolt 4, Intel Thread Director, Intel CET, and Intel Standard Manageability are additional features.
• A maximum of 105 °C is required for operation.

Advantages

• Performance-Efficient Cores: The hybrid architecture provides an excellent mix between power efficiency and performance.
• AI Capabilities: Performance on AI-related tasks is improved by integrated AI acceleration features.
• A discrete GPU is not necessary for daily tasks while using integrated graphics.

Disadvantages

• Limited Graphics Performance: Advanced gaming or demanding graphical workloads may require more than the integrated graphics can provide.
• Lack of Overclocking Support: This processor does not support overclocking because it is not part of the K series.

Video Editing & 3D Rendering

For entry-level to mid-range workloads, the CPU provides respectable performance for video editing and 3D graphics. But a system with a dedicated graphics card would be better suited for professional-grade applications, particularly those that demand high GPU performance.

Intel Core Ultra 5 225 Gaming performance

With its built-in Intel Graphics, the Intel Core Ultra 5 225 can manage light and moderate gaming at lower settings. A discrete GPU is advised, nevertheless, for top-tier gaming experiences.

You can also read AMD Ryzen Threadripper 3990X Benchmarks, Specs And Price

Intel Core Ultra 5 225 price

The packaged version of the Intel Core Ultra 5 225 will launch at $246 USD, which is based on Intel’s suggested customer price (MSRP). The MSRP on the tray variant is $236.

Remember that the vendor, the area, and the state of the market can all affect the actual retail prices. The total cost may vary depending on whether it is included in a pre-built system or bundled with other parts.

Intel core ultra 5 225 specs
