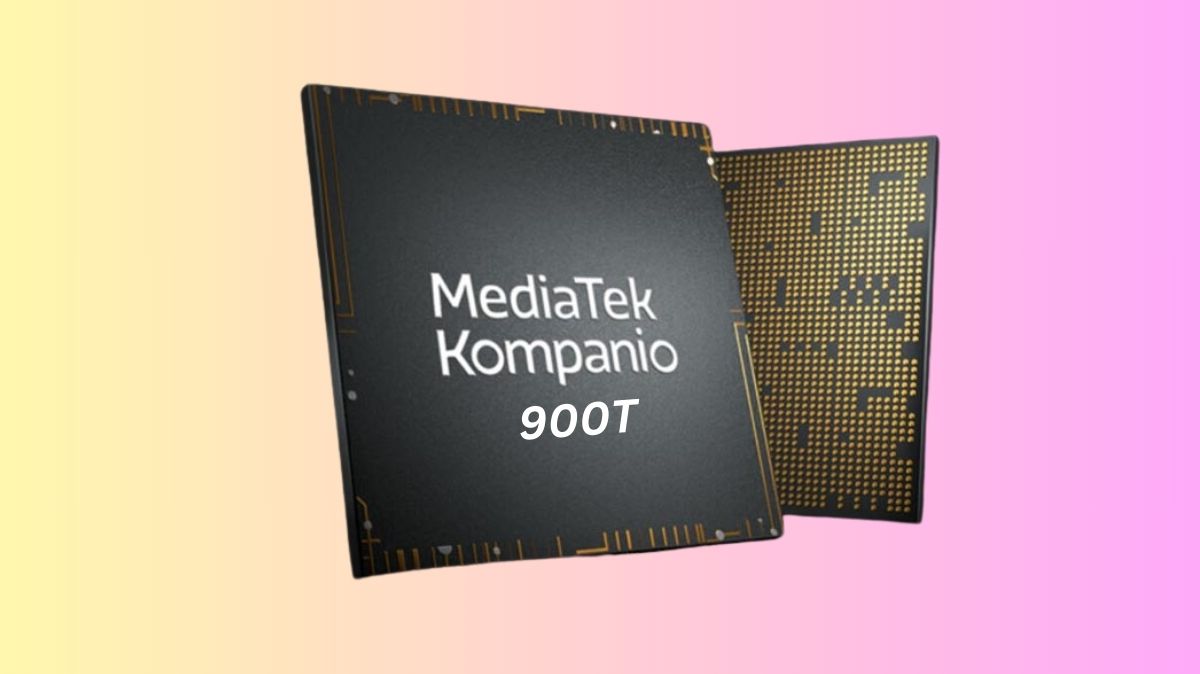

MediaTek Kompanio 900T
MediaTek Kompanio 900T chips for high-performance mobile computing platforms seek for great functionality, extensive connection, and long battery life. The octa-core CPU has two powerful Arm Cortex-A78 cores and six Cortex-A55 cores for performance and responsiveness and is constructed on the power-efficient TSMC N6 (6nm-class) manufacturing process. The processor offers versatile system designs with LPDDR4X or LPDDR5 memory and UFS 2.1 or UFS 3.1 storage and can power 2K (2000×1200) screens at 120Hz.
Full 2G-5G Sub-6GHz connection, 5G Carrier Aggregation, True Dual 5G SIM (SA+SA), and MediaTek 5G UltraSave power efficiency are features of its integrated, certified 5G modem. Bluetooth 5.2 and Twin Antenna Wi-Fi 6 (802.11ax) with 2×2 MIMO boost connectivity. Supporting 108MP cameras, the processor has an Arm Mali-G68 MC4 GPU, MiraVision HDR video, and an AI Accelerator.
Key aspects of the MediaTek Kompanio 900T include
- Power Efficiency: Using the TSMC N6 (6nm-class) chip production process, which is up to 8% more efficient than the N7 (7nm-class) technology, makes the chip particularly power-efficient. Device manufacturers are able to develop mobile computing systems with unmatched battery life because to this method.
- Processor: Its octa-core CPU is equipped with six Arm Cortex-A55 processors and two potent Arm Cortex-A78 processors. Increased gaming frame rates, multitasking, speedier applications, and a more responsive system perfect for pen use are all made possible by these Cortex-A78 processors. Heterogeneous Multiprocessing is supported by the 64-bit CPU.
- Memory and Storage: The choice between LPDDR5 or LPDDR4X memory and UFS 3.1 or UFS 2.2 storage is available to device manufacturers. As a result, designs may be adjusted to fit price points and market performance expectations.
- Display Support: With a maximum resolution of 2K (2000×1200), the chip can work with fast 120Hz monitors. High refresh rates are said to provide a discernible improvement in the user experience, enhancing zero-blur gaming, facilitating smoother web scrolling, and enabling faster pen and touch input response times.
- Connectivity
- 5G: Along with complete 2G-5G cellular connection, including all 5G Sub-6GHz frequency bands, it comes with an integrated, certified 5G modem. It supports 5G Carrier Aggregation (CA), SA and NSA modes, and 5G-CA Mixed Duplex TDD+FDD for improved layer coverage and quicker average speeds. The chip provides True Dual 5G SIM (5G SA + 5G SA) connectivity, which enables quality voice and video conversations (VoNR) on both connections for a more reliable 5G experience.
- 5G UltraSave: They include MediaTek 5G UltraSave power-saving technologies, which are said to save up to 50% more energy in 5G connected settings than certain alternatives. These technologies may be used in both standalone and non-standalone networks.
- Wi-Fi: Up to 66% faster speeds than the previous generation are claimed with the integration of Twin Antenna Wi-Fi 6 (802.11ax) with 2×2 MIMO.
- Other Wireless: Additionally, GNSS (which supports systems like GPS, BeiDou, Glonass, and Galileo) and Bluetooth 5.2 are included.
- Graphics and Video: A GPU called Arm Mali-G68 MC4 is included in the chip. Numerous video encode and decode standards, including H.264, H.265/HEVC, MPEG-1/2/4, VP-9, and AV1, are supported.
- MiraVision: A set of technologies called MiraVision HDR Video Playback & Display is part of it; it automatically modifies the video stream parameters. Improved HDR10+ playback with per-frame local tone mapping, real-time SDR to HDR conversion, and improving HDR10 video to seem like HDR10+ are some of the main improvements highlighted.
- AI: There is an AI Accelerator available.
- Camera Support: Camera options up to 108MP single camera or twin 20MP+20MP setups are supported by the MediaTek Kompanio 900T. It has hardware capabilities including HDR video, 3X HDR-ISP, MFNR, 3DNR, AINR, and hardware depth and warping engines. It can record video at a maximum resolution of 3840×2160.
Tablets and Chromebooks are frequently linked to the MediaTek Kompanio series.
MediaTek Kompanio 900T Specifications
| Category | Specification |
|---|---|
| Processor | Application Processor: 2× Arm Cortex-A78, 6× Arm Cortex-A55 CPU Core: Octa-core (8 cores) CPU Architecture: 64-bit Heterogeneous Multi-Processing: Yes |
| Memory & Storage | Memory Types: LPDDR4x, LPDDR5 Storage Types: UFS 2.1, UFS 3.1 |
| Connectivity | Wi-Fi: Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Bluetooth Version: 5.2 |
| Cellular Technologies | 2G / 3G / 4G / 5G Multi-Mode 4G Carrier Aggregation (CA), 5G Carrier Aggregation (CA) EDGE, 4G FDD / TDD, 5G FDD / TDD GSM, TD-SCDMA, WCDMA Specific Functions: SA & NSA modes; SA Option2, NSA Option3 / 3a / 3x; NR TDD Band, NR FDD Band; DSS; NR DL 2CC, 120 MHz bandwidth, 256QAM; NR UL 2CC, 256QAM; VoNR / EPS fallback |
| GNSS | GPS L1CA+L5 / BeiDou B1I+ B2a / Glonass L1OF / Galileo E1 + E5a / QZSS L1CA+ L5 / NavIC |
| Display | Max Display Resolution: 2000 × 1200 Max Refresh Rate: 120Hz |
| Graphics | GPU Type: Arm Mali-G68 MC4 |
| Video Encode | H.264, H.265 / HEVC |
| Video Decode | H.264, H.265 / HEVC, MPEG-1/2/4, VP-9, AV1 |
| AI | AI Accelerator: Yes |
| Camera | Max Camera ISP: 20MP + 20MP, 108MP Max Video Capture Resolution: 3840 × 2160 Camera Features: Hardware video HDR, 3X HDR-ISP, MFNR, 3DNR, AINR, Hardware Depth Engine, Warping Engine |
