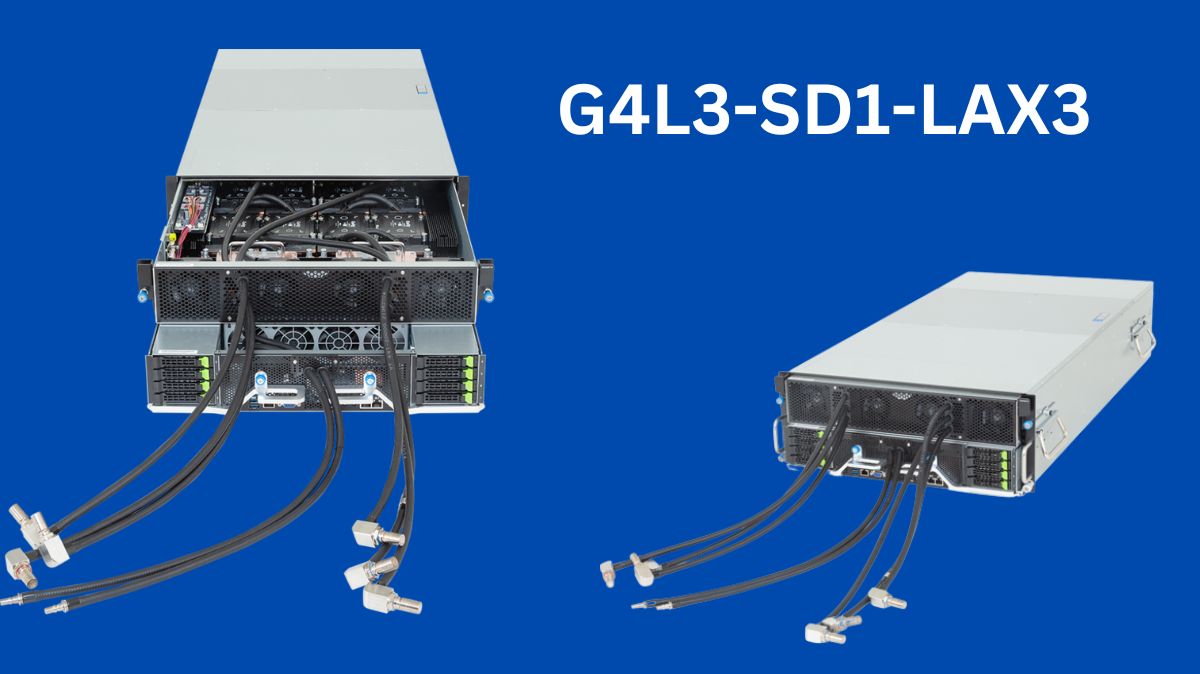

GIGABYTE G4L3-SD1-LAX3: 4U AI Server With HGX H200

Explore the Gigabyte G4L3-SD1-LAX3, a high-performance 4U AI server with 8x NVIDIA HGX H200 and Intel Xeon for unmatched computing power.

Accelerating Artificial Intelligence and Leading Efficiency

Intel has made a remarkable leap in processor performance in the business transformation journey by accelerating artificial intelligence and leading efficiency engineering with richer features on a new platform. While networking, storage, and analytics use additional specialised accelerators in the 4th and 5th Gen Intel Xeon Scalable CPUs, AI and deep learning performance will be enhanced by the integrated AI acceleration engines. The new Intel Xeon processor families will offer even better CPU performance and performance per watt, along with a plethora of new features to target a wide range of workloads.

They will also operate on a PCIe 5.0 platform with twice the throughput of previous generations, significantly accelerating data movement to and from GPUs and storage. Intel’s Xeon CPU Max Series with High Bandwidth Memory handles memory-intensive HPC and AI operations. In addition to high-performance DDR5 memory, GIGABYTE has components ready to maximise the performance of Intel Xeon CPU-based systems that support fast PCIe Gen5 accelerators and Gen5 NVMe storage on this new platform.

Redefine Performance with 4th/5th Gen Intel Xeon Scalable Processors and Intel Xeon CPU Max Series

  • Integrated accelerators
    • Boost ROI while enhancing effectiveness and output.
  • 64 cores or more
    • With specialised cores, more jobs may be completed more quickly and concurrently.
  • Support for DDR5
    • DDR5 RDIMM support results in higher memory frequency and throughput.
  • 64GB HBM
    • High bandwidth in-package memory significantly accelerates tasks involving a lot of data.
  • PCIe 5.0 lanes
    • Enhanced I/O throughput with support for the newest SSDs and accelerators, reaching 128GB/s bandwidth
  • Support for CXL 1.1
    • Boost performance through direct accelerator memory access and memory coherency.

Why Choose GIGABYTE Liquid Cooling Servers?

Cool Performance

Servers with liquid-cooled components that run far below CPU TDP will be extremely reliable and perform effectively.

Power Saving

A liquid-cooled server can perform as well as an air-cooled server while using less electricity if it has fewer fans and operates at slower speeds.

Noise Reduction

Numerous high-speed, loud fans are needed for servers. By using a liquid cooling solution and fewer fans, GIGABYTE has discovered a method to cut down on noise.

Proven Track Record

The supplier of direct liquid cooling systems has been providing cooling solutions for desktop computers and data centres for 20 years. Additionally, GIGABYTE has over 20 years of experience.

Reliability

Liquid cooling methods require less maintenance and can be observed. GIGABYTE and liquid cooling suppliers warranty components.

Ease of Use

When combined with a liquid cooling kit, GIGABYTE servers can be linked to a building’s water system or put in a rack. and provides dry, rapid, and easy disconnects.

High Performance

Supports NVIDIA HGX H200 8-GPU

High-speed interconnects and H200 Tensor Core GPUs are combined in the NVIDIA HGX H200 to provide every data centre with exceptional performance, scalability, and security. The most potent accelerated scale-up server architecture for AI and HPC in the world is created by configurations of up to eight GPUs, which provide previously unheard-of acceleration with an astounding 32 petaFLOPS of performance. An eight-way HGX H200 has 1.1TB of aggregate high-bandwidth memory and more than 32 petaflops of FP8 deep learning computation. In order to provide cloud networking, composable storage, zero-trust security, and GPU computing elasticity in hyperscale AI clouds, the NVIDIA HGX H200 further incorporates NVIDIA BlueField-3 DPUs.

Power Efficiency

Automatic Fan Speed Control

Automatic Fan Speed Control is activated on GIGABYTE servers to maximise cooling and power efficiency. Temperature sensors positioned thoughtfully throughout the servers will automatically modify each fan speed.

G4L3-SD1-LAX3 Features

  • Eight-GPU liquid-cooled NVIDIA HGX H200
  • Direct liquid cooling solution for CPU and GPU with leak detection
  • GPU-to-GPU bandwidth of 900 GB/s using NVSwitch and NVIDIA NVLink
  • Intel Xeon Scalable Processors, Dual, 5th/4th Gen
  • Dual Xeon CPU Max Series Intel
  • 32 DIMMs with an 8-Channel DDR5 RDIMM
  • Architecture with Two ROMs
  • Compatible with ConnectX-7 NICs and NVIDIA BlueField-3 DPUs
  • Intel X710-AT2 LAN ports with two 10Gb/s ports
  • PCIe Gen3 x2 and x1 interfaces in two M.2 slots
  • Gen5 NVMe/SATA hot-swap bays, 8 x 2.5″
  • Four FHHL dual-slot Gen5 x16 PCIe slots
  • Eight FHHL single-slot Gen5 x16 PCIe slots
  • 4+4 3000W 80 PLUS Titanium backup power sources
