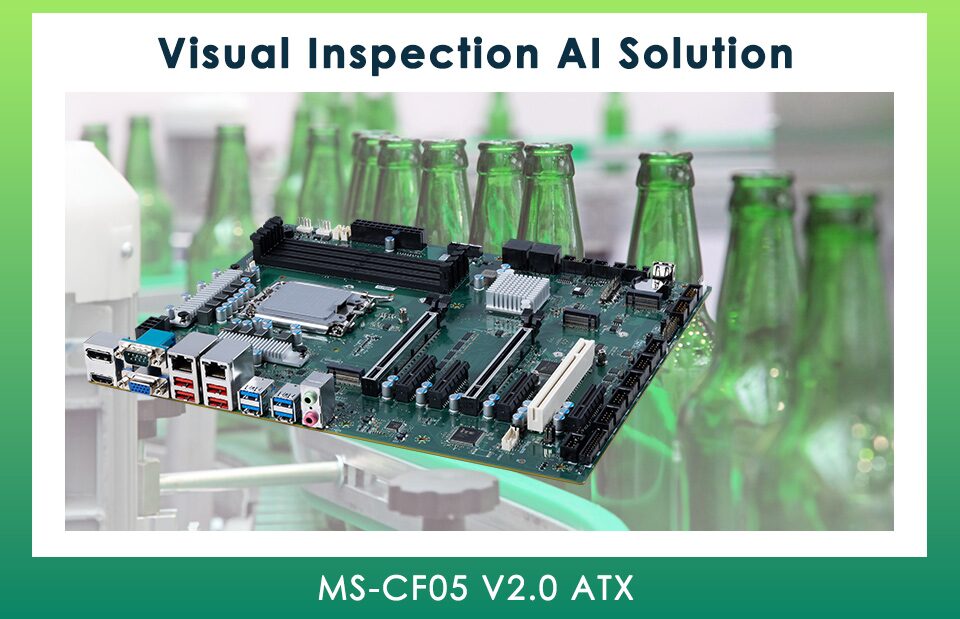

High-Performance ATX Motherboard MS-CF05, V2.0 for Industrial and Embedded Uses is introduced by MSI IPC

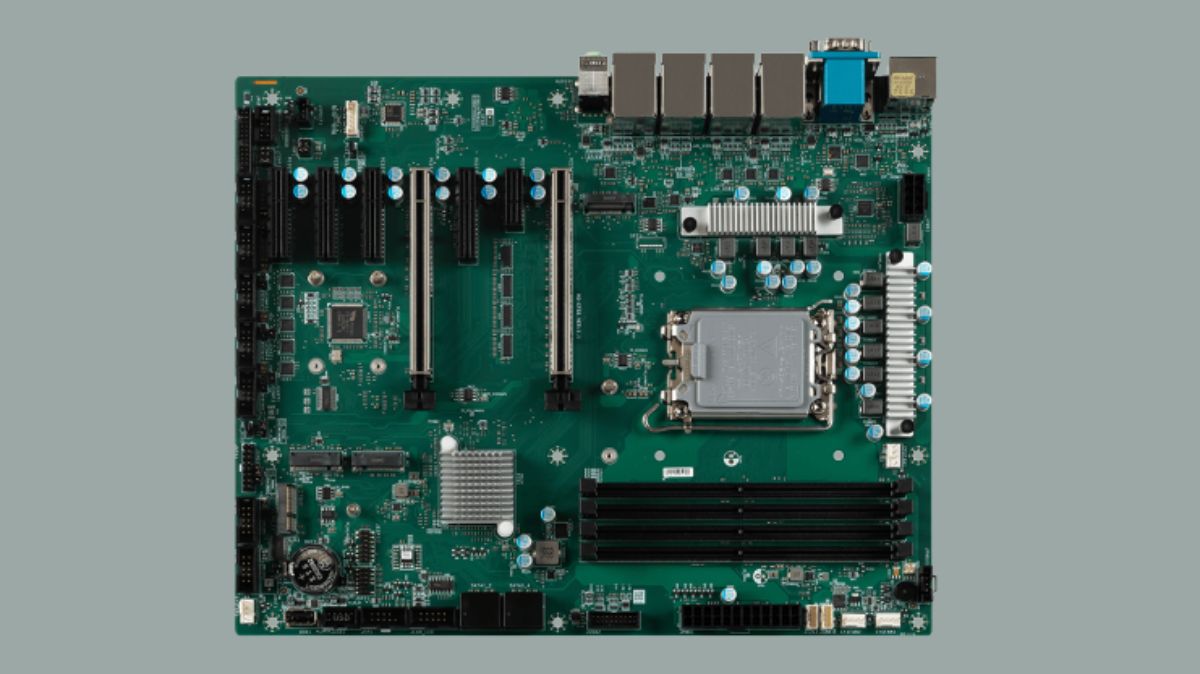

The MS-CF05, V2.0, a high-performance ATX motherboard designed for industrial automation, edge computing, and embedded applications, is proudly unveiled by MSI IPC, a world pioneer in industrial computing solutions. The MS-CF05, V2.0 is perfect for modern industrial demands because it is designed to support Intel Core, Pentium, and Celeron processors that are 14th, 13th, and 12th Gen. It offers remarkable computational power, scalability, and I/O flexibility, along with a PCI slot for legacy support.
Key Features of MS-CF05, V2.0:
- Strong Intel CPU Support: For optimal computing performance, 14th, 13th, and 12th Gen Intel processors with Intel Q670E chipsets are supported.
- High-Speed Memory: For optimal performance in data processing applications, four DDR5 4400 MT/s ECC/non-ECC UDIMM slots may accommodate up to 128GB.
- Triple Independent Displays: For versatile multi-display setups, use VGA, DisplayPort, and HDMI.
- Four 2.5GbE LAN ports with RJ-45 for fast data transfer and network redundancy are examples of advanced networking capabilities.
- Three separate displays: DP, HDMI, VGA, and two 2.5GbE LANs using RJ-45
- This device has four SATA 3.0 storage ports, one PCI slot, one M.2 B key slot, two M.2 M keys, one PCIe x16 (Gen 5) slot, one PCIe x4 (Gen 4), and three PCIe x4 (Gen 3) slots, and supports RAID 0/1/5/10/8 on SATA GPIO, PS/2, Audio, 3 System Fans, 6 COM (6 RS-485), 2 USB 3.2 Gen 1, and 3 USB 2.0.
- Chassis Intrusion ATX Power, iAMT 16.x, I2C, PMBus, and Onboard TPM 2.0
Adaptable Options for Expansion:
- GPUs and accelerators can be installed in one PCIe x16 (Gen 5) or two PCIe x8 (Gen 5) slot.
- One PCI slot for legacy device compatibility, three PCIe x4 (Gen 3), and one PCIe x4 (Gen 4) are included.
- Four SATA 3.0 ports, two M.2 M-key slots, and one M.2 B-key provide a wide range of storage choices.
- Data redundancy is supported by SATA RAID 0/1/5/10.
All-inclusive Connectivity:
- Three USB 2.0, two USB 3.2 Gen 1, and eight Gen 2 connectors.
- Two RS-232/422/485 COM ports, four RS-232 COM ports, GPIO, PS/2, audio.
- Three FAN connectors for the system to improve thermal control.
- Onboard TPM 2.0, SMBus, I2C, PMBus, iAMT 16.x, and chassis intrusion detection are examples of enhanced security and management.
- Dependable Power Architecture: ATX power supply for steady and effective system performance.
Optimised for Industrial Applications:
The MS-CF05, V2.0 supports edge computing, AI inference, and industrial automation and is designed for excellent performance and dependability in industrial settings. It is excellent at handling data processing and real-time AI model inference, allowing companies to make data-driven choices independently of the cloud. Its connection with IoT devices also improves predictive and monitoring capabilities across linked systems.
The motherboard’s legacy PCI slot supports older industrial peripherals, making updating easy while retaining support. Its industrial-grade components and reliability under shocks, vibrations, and wide temperature changes make it ideal for demanding applications.
Ideal Applications:
- Robots, IoT sensors, and machine vision systems in production lines are examples of manufacturing automation.
- Smart Cities: Information gathered from traffic control systems and smart devices.
- Healthcare: Remote monitoring through integration with medical equipment.
- Energy & Utilities: keeping an eye on renewable energy installations and smart grids.
- Transportation and logistics include traffic monitoring, fleet management, and predictive maintenance.
Summary
The MS-CF05, V2.0 is a high-performance ATX motherboard by MSI IPC that is intended for embedded and industrial applications such as edge computing and automation. With four 2.5GbE LAN ports, several display outputs, fast DDR5 memory, and strong networking, this board supports the newest Intel Core processors. For wider compatibility, it provides a classic PCI slot in addition to PCIe expansion slots. It is designed to make it easier for companies with existing equipment to update, and it is built with industrial-grade components that are optimised for reliability in tough settings.
