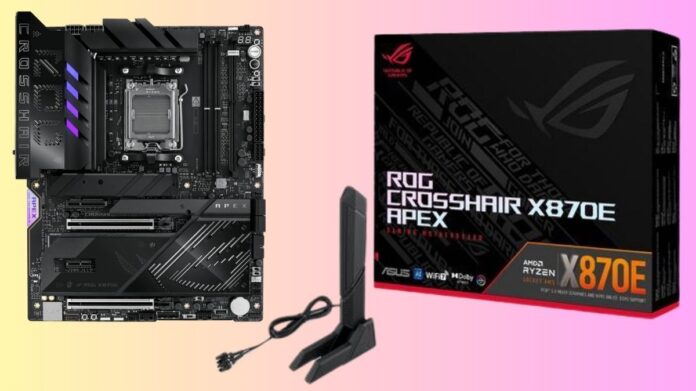

The ROG Crosshair X870E Apex sets its sights on record-breaking memory performance
One motherboard on a quest is the ROG Crosshair X870E Apex. Its purpose is to provide enthusiasts with exceptional memory performance. The ROG Crosshair X870E Apex, the newest member of record-winning Apex family and the first to support AMD processors, has already shown its mettle on the overclocking battlefields of the world.
| ROG Crosshair X870E Apex and AMD Ryzen 9 9950X | ||
|---|---|---|
| Benchmark | Record | Overclocker |
| Geekbench3 Multi Core | 170757 points (Global First Place) | SAFEDISK |
| 7-Zip | 324364 MIPS (Global First Place) | SAFEDISK |
| Cinebench R15 | 9372 cb (Global First Place) | SAFEDISK |
| Cinebench R20 | 23585 pts (Global First Place) | SAFEDISK |
| Cinebench R23 | 60868 pts (Global First Place) | SAFEDISK |
| GPUPI For CPU 1B | 17sec 498ms (Global First Place) | SAFEDISK |
| HWBOT x265 Benchmark 1080p | 316.696 fps (Global First Place) | SAFEDISK |
| HWBOT x265 Benchmark 4k | 78.319 fps (Global First Place) | SAFEDISK |
The memory configuration of this motherboard is a key component of its overclocking recipe, however there are other components as well. Apex motherboards have two DIMM slots rather of four in order to minimize interference to the IMC, compromising full capacity in order to achieve high-end rates. This board has Extreme OC package, which includes LN2 mode, just like the ROG Crosshair X870E Extreme.
Whether you’re racing for a new DRAM frequency world record or moving up the leaderboards in your preferred online game, the ROG Crosshair X870E Apex remains cool under duress with an outstanding set of cooling gear. The board’s sturdy 18(110A)+2(110A)+2(80A) power solution is kept at a manageable temperature by tall, thick heatsinks connected by an L-shaped heatpipe. The I/O cover is merged with the sinks to enhance the surface area available for heat dissipation. You may install a sizable cooling system in your chassis with a wide variety of fan headers.
In addition discover a W_PUMP+ header with the additional amperage frequently required for specialized liquid cooling loops, in addition to a conventional 4-pin AIO Pump header ready for easy AIO CPU liquid coolers. Another important tool in the Apex’s cooling technology arsenal is seen when you turn it over. Metal armor covers almost the whole back side, offering passive cooling and structural rigidity.
You may wish to increase airflow across your memory sticks and VRM heatsinks if you have set your CPU and memory to an aggressive overlock. An ROG Memory Fan Kit is included in the package. A stream of air that flows parallel to your DIMMs is directed by this optional device, which is simple to install to a handy mounting location on the board.
The ROG Crosshair X870E Apex’s extensive support for state-of-the-art graphics cards and storage is equally important as its powerful toolkit for CPU and RAM overclocking. Two PCIe 5.0 x16 slots on the motherboard are prepared to accommodate the newest graphics cards available. With the help of three PCIe 5.0 M.2 slots, you may create an incredibly quick storage array. The robust M.2 heatsink for the primary slot enables tool-free installation, and M.2 Q-Latch system lets you add SSDs without fumbling with a tiny screw. This motherboard has two PCIe 4.0 M.2 slots on the included ROG DIMM for even more storage possibilities. Four SATA 6Gbps connections and two cards.
WiFi 7 offers a significant performance boost over WiFi 6 in addition to congestion-busting technology designed for today’s networked homes. To make the most of the 6GHz band, the ROG Crosshair X870E Apex provides you with a 2×2 WiFi 7 module that supports 320MHz channels. A strong connection is ensured by the ASUS WiFi Q-Antenna.
They are able to outfit this motherboard with a high-end assortment of USB ports with PCIe 5.0 connectivity’s next-generation bandwidth. The two 40Gbps USB4 ports on the back panel are the main feature of its choosing. You may connect high-speed external storage devices, high-resolution screens, and more with these adaptable connections.
The remainder of your battlestation can be connected with eight additional USB ports at different speeds. Easy daily use of your computer is made possible by convenient front-panel connections. The ROG Crosshair X870E Apex has a header that is prepared to connect a USB 20Gbps connector on the front panel that supports Quick Charge 4+. While using your PC, it will keep a smartphone or other device charged with its 60W rapid charging capability.
ROG Crosshair X870E Apex Price
The ASUS ROG Crosshair X870E Apex motherboard costs $749 USD and is made for AMD systems with high performance and aggressive overclocking.
ROG Crosshair X870E Apex Specs
| ROG Crosshair X870E Apex | |
|---|---|
| Size | ATX |
| Memory | 2 x DIMM, Max 128GB, DDR5 Up to 8200+ MT/s (OC) Ryzen 9000 Series Processors |
| Power Stages | 18(110A)+2(110A)+2(80A) |
| PCIe | 2 x PCIe 5.0 x16 (@x16 or @x8/x8 or x8/x4/x4) 1 x PCIe 4.0 x4 1 x PCIe 3.0 x1 |
| Storage | Onboard 3 x M.2 2280 (PCIe 5.0 x4) ROG DIMM.2 2 x M.2 22110 (PCIe 4.0 x4) |
| Networking | WiFi 7 1 x Realtek 5Gb Ethernet |
| Audio | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 Savitech SV3H712 AMP |
| Display | 2 x USB4 ports support USB Type-C display output |
| Rear I/O | 2 x USB4 (40Gbps) ports (2 x USB Type-C) 6 x USB 10Gbps ports (5 x Type-A + 1 x USB Type-C) 2 x USB 5Gbps ports (2 x Type-A) |
| Front I/O | 1 x USB 20Gbps (supports USB Type-C with up to 60W PD/QC4+) 1 x USB 20Gbps connector (supports USB Type-C) 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports |
| Aura | 3 x Addressable Gen 2 headers |
| Cooling | 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 2 x 4-pin Chassis Fan headers 2 x 4-pin Full Speed Fan headers 1 x W_PUMP+ header 1 x Extra Flow Fan header |
| ASUS Q-Design | M.2 Q-Latch, M.2 Q-Release, M.2 Q-Slide WiFi Q-Antenna Q-Code, Q-LED PCIe Slot Q-Release Slim |
