ASUS RS300-E12-RS4 server brings ultra-fast PCIe 5.0 speeds, Intel Xeon 6300 processing power, and enterprise reliability for demanding applications.
The 6900, 6500P, and 6700P series of servers using the latest Intel Xeon 6 CPUs were announced by ASUS today. Powerhouse processors with up to 128 Performance-cores (P-cores) or 288 Efficient-cores (E-cores) per socket, native PCI Express (PCIe 5.0), and DDR5 6400 MT/s memory rates give great performance, efficiency, and scalability. In addition to including the new BMC module within the ASPEED 2600 chipset, the latest ASUS server solutions also come with the latest Intel Xeon 6 processors, which offer enhanced manageability, security, and interoperability with a variety of remote administration tools.
Redefining efficiency and scalability
AI-driven workloads, enterprise computing, and contemporary data centers are all targets for Intel Xeon 6 CPUs. With the option to choose between P-core and E-core architectures, these processors give companies the freedom to maximize energy economy and performance according to certain workloads.
The most demanding cloud, AI, and HPC scenarios are perfect for the highest performance offered by the Xeon 6900 series CPUs. Improved performance makes Xeon 6700P processors perfect for a variety of telco and data center settings. In addition to offering scalability and dependability for a range of enterprise requirements, the stablemate Xeon 6500P processors deliver critical performance designed for common server and edge scenarios. Recent processors from the Xeon 6300 series, on the other hand, offer entry-level performance, which makes them perfect for edge computing, cloud-native workloads, and small and medium-sized corporate settings.
Introducing the all-new ASUS server lineup
The newest Intel Xeon 6 processors power a flexible range of servers from ASUS designed to satisfy a variety of enterprise computing requirements. Scalable GPU-optimized systems, high-density data center servers, and energy-efficient SMB solutions all benefit from the range.
ASUS RS700-E12, RS720-E12 and RS720Q-E12 with Intel Xeon 6500P/6700P processors
Two Intel Xeon 6700P and 6500P CPUs power the ASUS RS700-E12 series, a 1U server with a 350W TDP for demanding applications. Up to 32 DDR5 DIMMs with speeds of 6400MT/s (1DPC) or 8000MT/s (MRDIMM) allow expansion flexibility and scalability for a variety of applications. Four or twelve 2.5-inch NVMe, SATA, or SAS drive bays and two M.2 slots allow the RS700-E12 series to handle high data needs and provide fast access. With its modular DC-MHS architecture, it can be scaled and incorporated into modern data centers, making it ideal for many applications.
A 2U general-purpose server series that is geared for GPU acceleration and perfect for AI computing and high-performance activities, the ASUS RS720-E12 complements the RS700-E12. With up to 32 DDR5 DIMMs and twin Intel Xeon 6700P and 6500P processors with up to 350W TDP, it can achieve up to 6400MT/s (1DPC) or 8000MT/s (MRDIMM) of performance. Up to 10 PCIe 5.0 slots and 8, 12, or 24 NVMe, SATA, or SAS drive bays are just a few of the numerous storage options that the RS720-E12 series offers. AI model training, virtualization, and data analytics are all made possible by the DC-MHS architecture’s flexible design, cutting-edge cooling options, and fast networking.
A 2U four-node server with high resource utilization and scalability for demanding HPC applications, the RS720Q-E12 series is also introduced by ASUS. It is powered by Intel Xeon 6700P and 6500P processors. Up to 688 cores, 64 DDR5 DIMMs with 8000 MT/s of speed, and eight bays of flexible storage per system are supported, ensuring balanced I/O throughput and easier storage management. With its two PCIe 5.0 ports and support for OCP 3.0, the RS720Q-E12 provides exceptional performance and efficiency, which makes it perfect for difficult HPC operations and semiconductor EDA workloads.
ASUS RS920Q-E12-series server with Intel Xeon 6900 series processors
With Intel Xeon 6900P and 6900E processors, the ASUS RS920Q-E12 is designed to provide optimal performance, with up to 1024 cores in a 2U four-node system. With support for 96 DDR5 DIMMs and high-speed data handling up to 8800 MT/s, this server guarantees effective processing for even the most taxing applications. In high-performance computing, cloud services, and other data-intensive applications, advanced liquid-cooling technology is perfect because it controls heat output to preserve optimal performance.
ASUS RS300-E12-series server with Intel Xeon 6300 processors
SMBs and edge computing benefit greatly from the energy-efficient performance of the Stablemate ASUS RS300-E12 series server, which is powered by Intel Xeon 6300 CPUs and supports up to 95 W TDP. With four hot-swap drive bays and an extra M.2 slot, the RS300-E12-RS4 and RS300-E12-PS4 series offer flexible storage solutions to accommodate a range of workloads. In contrast to the RS300-E12-PS4, which balances energy efficiency with a simplified 350W 80 PLUS Gold power supply, the RS300-E12-RS4 has redundant 450W 80 PLUS Platinum power supplies. Enhanced administration via ASMB11-iKVM with ASPEED AST2600, two Intel I210-AT Ethernet connections, and advanced connectivity with PCIe 5.0 and PCIe 4.0 slots make the series a great option for small, powerful server solutions.

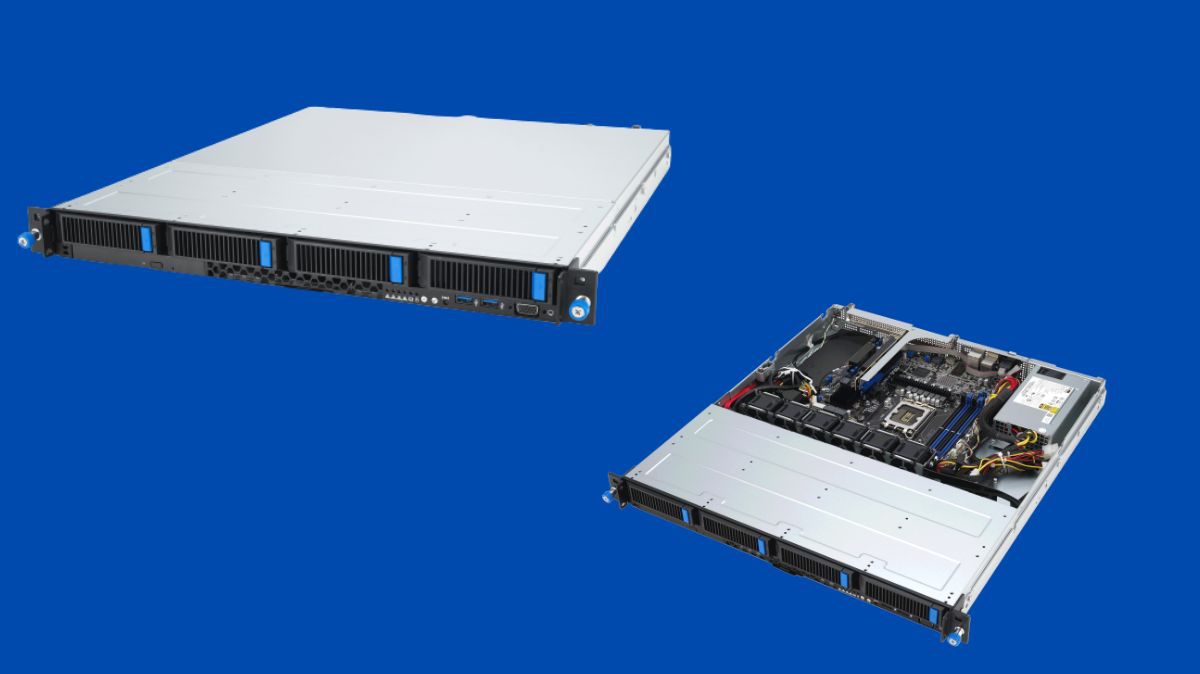

RS300-E12-RS4
Four DDR5 ECC UDIMM, four NVMe, one M.2, one PCIe 5.0 slot, one PCIe 4.0 slot, dual LAN, 80 PLUS Platinum redundant power supplies, Intel Platform Firmware Resilience (PFR), onboard ASUS ASMB11-iKVM, and chassis-intrusion alert are all supported by the ASUS RS300-E12-RS4 in an Intel Xeon E-2400 and Intel Xeon 6300 1U server.
Important Features
- It is powered by eight-core Intel Xeon processors from the E-2400 and 6300 series, which can support up to 95 W TDP.
- Four One M.2 and 3.5- or 2.5-inch hot-swap drives on the front panel provide for a lot of capacity.
- Higher bandwidth can be achieved by using up to one PCIe 5.0 slot and one PCIe 4.0 proprietary slot.
- 450 W 80 PLUS Platinum power supplies that are redundant for high power efficiency
- Two Intel I210-AT gigabit Ethernets that facilitate teamwork
- On board Using the ASPEED AST2600 controller for out-of-band administration, ASUS ASMB11-iKVM
- PFR FPGA integration as the Root-of-Trust platform for firmware resilience
- Enhancing physical security through chassis intrusion
Intel Xeon E-2400 processors/Intel Xeon 6300 processors
Providing reliable and secure solutions, it is intended for cloud service providers and small-to medium-sized enterprises (SMBs). These processors guarantee quick data processing and application responsiveness by supporting up to eight cores and sixteen threads, with a maximum clock of 5.6 GHz and a 95 W TDP. They offer cost-effective performance for entry-level bare-metal cloud services and server-grade 24/7 reliability for customer data and business-critical services. They have PCIe 5.0 ports and 128 GB of DDR5 4400 or 4800 MT/s (Intel Xeon E-2400 or 6300) memory.
PCIe 5.0 ready
Improved networking, graphics, and storage speed PCI Express (PCIe) 5.0 offers backward compatibility, improved land scalability, and reduced power consumption. Its 32GT/s bandwidth is twice that of PCIe 4.0. ASUS servers are scalable and PCIe 5.0 compatible, meeting the growing demands of contemporary data centers.
Redundant Platinum PSU support
The redundant 450W 80 PLUS Platinum power supply that the RS300-E12-RS4 provides are 96%+ efficient, which lowers capital and operational costs. Because of its 1+1 power-supply design, the server can continue to function even in the event that one of its power supplies needs to be maintained.
Enhanced security
To stop hackers from accessing infrastructure, RS300-E12-RS4 servers use PFR FPGA as the platform Root-of-Trust solution for firmware resiliency. The 2018 National Institute of Standards and Technology (NIST) SP 800 193 specification is completely complied with by ASUS security solutions.
Furthermore, all RS300-E12-RS4 servers include the Trusted Platform Module 2.0 (TPM 2.0), which offers frequent firmware updates for vulnerabilities and secures hardware with inbuilt cryptographic keys.
Three fast USB 3.2 Gen 2 ports
The back of the ASUS RS300-E12-RS4 has three USB 3.2 Gen 2 ports. File transfers at up to 10 Gbps are fast, dependable, and efficient using these connections. Backward compatibility ensures smooth USB device interaction with these connectors.
Dual Ethernet bandwidth
To enable speedier transfers of large-size files used in data-intensive applications, the RS300-E12-RS4 server supports high-density, high-bandwidth, low-latency access-layer networks and has dual onboard LAN ports powered by the Intel I210-AT Ethernet Controller. It also offers server-grade connection.
Server-management Solution
Remote server management
The newest server management system from ASUS, ASMB11-iKVM, is based on the ASPEED 2600 chipset and uses the most recent AMI MegaRAC SP-X. The module has multiple interfaces, including WebGUI, Redfish API, and Intelligent Platform Management Interface (IPMI), to facilitate out-of-band server management.
Streamline IT operations via a single dashboard
In addition to facilitating smooth remote BIOS configurations and updates, effective IT diagnostics and troubleshooting, and improved security with Hotfix updates, ASUS Control Center (ACC) is remote IT management software that makes it easier to manage servers for any IT infrastructure.
