By overclocking its memory to an unprecedented DDR5-12527MHz, the ASRock Z890 Taichi OCF breaks the world record!
This accomplishment demonstrates the Z890 Taichi OCF‘s remarkable performance and dependability in harsh environments, enhancing its standing as the best option for enthusiasts and expert overclockers. The motherboard’s 10-layer PCB, server-grade ultra-low-loss material, and ASRock’s patent-pending Memory OC Shield, which lowers EMI noise, provide unparalleled stability and performance for overclocking. It can handle memory frequencies up to DDR5-12527MHz.

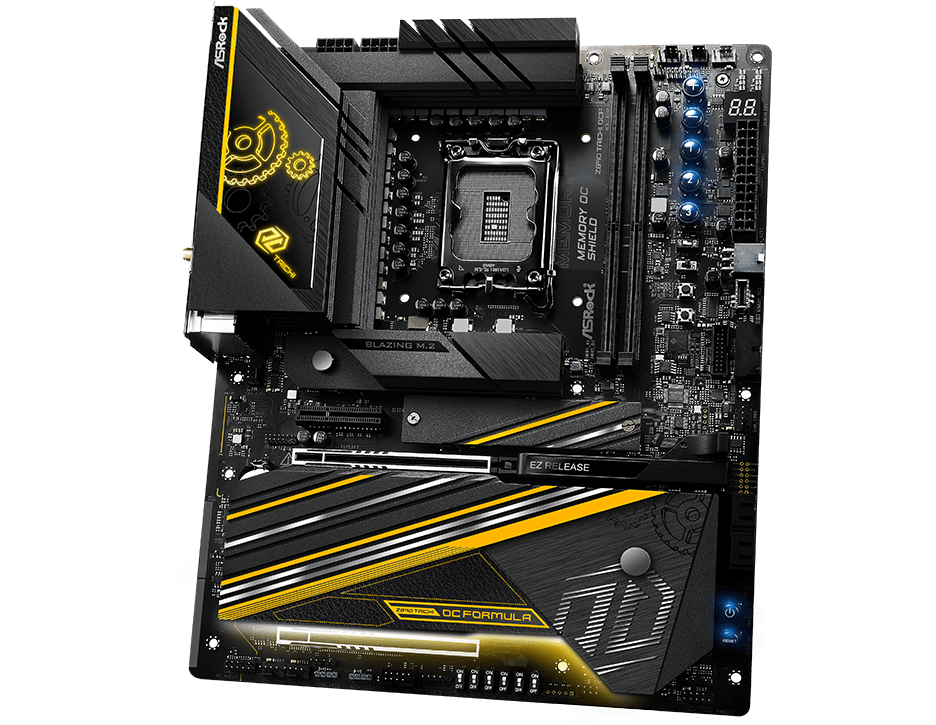

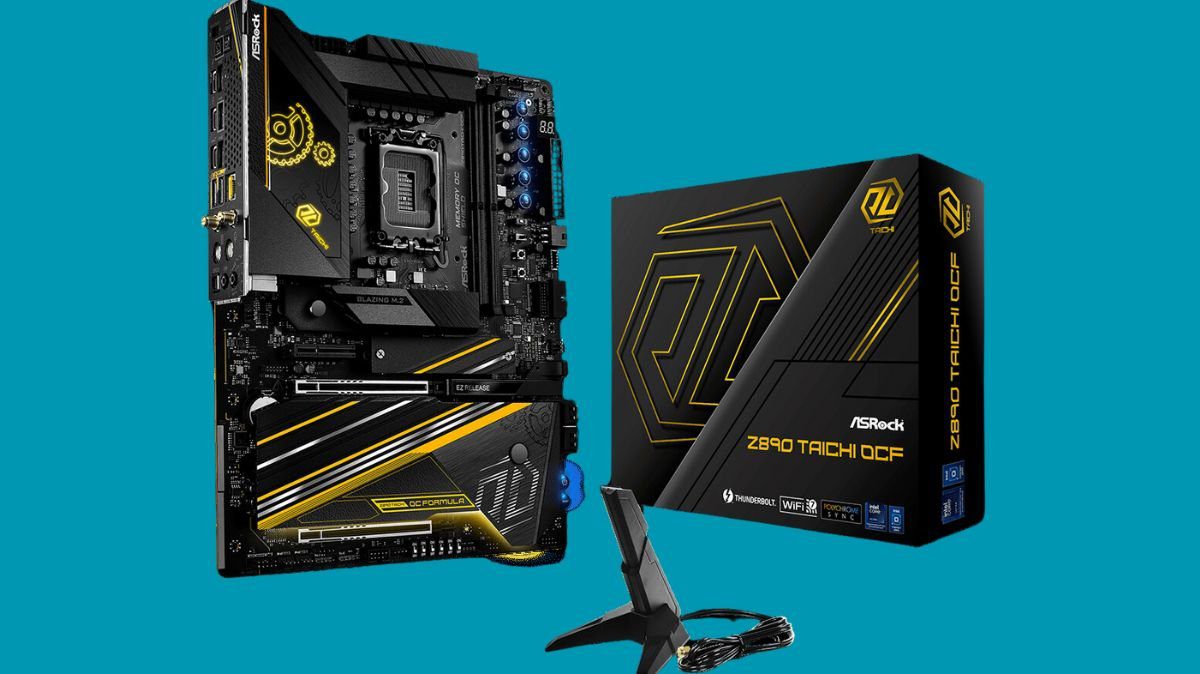

ASRock Z890 Taichi OCF Overview
Unleashing Extreme Performance
This motherboard, made for dedicated overclockers, is designed to use LN2 cooling to push your system to its maximum potential. Gain the greatest advantage in smashing records and optimizing hardware capabilities by experiencing previously unheard-of performance and stability in harsh environments.
Extreme Memory Overclocking
Based on the design principle of “built for stable and reliable,” ASRock doesn’t skimp on any aspects. This motherboard is constructed from premium materials, and by turning on the pre-tested profiles, enthusiasts may benefit from the increase in DDR5 memory overclocking capability. Verify that the RAM modules support AMD EXPO and Intel XMP, and that overclocking is inexpensive, fulfilling, and completely painless.
Memory overclocking has some hazards and might compromise the stability of your system. Please be aware that overclocking is something you should undertake at your own risk and cost. Support for EXPO/XMP profiles may change depending on the motherboard type, RAM modules, and system setup. The completed support list may be found in Memory QVL.
Top-tier hardware specifications, a sturdy power design, Thunderbolt 4 Type-C, and DIY-friendly functionality are all aspects of the Z890 Taichi OCF Taiichi series flagship motherboard. With its opulent design and potent performance, it is designed for high-end gamers.
Overclock Toolkit
OC Buttons Taichi OCF’s OC Buttons provide hardware-level controls to help with severe overclocking and improve your overclocking experience.
- +/- Rapid OC Buttons: These buttons let users change the OC frequency in Rapid OC fast and simply.
- Buttons for OC Profiles 1, 2, and 3: To load the preset OC Profiles 1, 2, or 3 rapidly, use the OC Profile Buttons in Rapid OC.
- LN2 Mode Switch: When using liquid nitrogen for high overclocking, the LN2 mode helps to remove the cold-boot bug problems in CPUs.
- Slow Mode Switch: To stabilize the system for extreme overclocking, use Slow Mode to operate the processor at its lowest frequency.
- Retry Button: When a forced shutdown is required, restart the system right away.
- To boot using the BIOS’s default settings, use the “Safe Boot” button.
DIY Friendly Design
Graphics Card EZ Release
To meet customer demands, ASRock changed the PCIe slot installation process, making it simple to install and remove the graphics card.
Professional Overclocking
CPU Heater Header
It is designed to improve overclocking results by preventing CPU SoC Tile freezing during LN2 intense overclocking with up to 42W of heating power by duty. It is equipped with a heater header that makes it simple to connect ceramic heating pads into the CPU socket.
Dual Thunderbolt 4 Type-C
It links a variety of devices with a single Thunderbolt 4 connection and allows for lightning-fast data transmission up to 40Gbps.
Premium PCB Solution
Server-Grade Ultra Low-Loss PCB
By enhancing signal integrity, the server-grade ultra low-loss PCB enables the motherboard to support PCIe 5.0 for both graphics cards and M.2 SSDs. It also enhances memory OC capability to provide the highest possible memory performance.
Deluxe 6xM.2 Sockets
Supports a maximum of six NVMe M.2 SSDs, one of which can support the most recent PCI Express 5.0 standard.
22+1+2+1+1 Power Phase, 110A SPS
The most recent SPS (Smart Power Stage) technology is included into the Dr.MOS design. It is designed to monitor the temperature and current of each phase, allowing for more efficient power delivery to the CPU, improving performance and OC potential.
Ultra-Fast Networking
802.11be Wi-Fi 7
Wi-Fi 7 provides multi-link operation, reduced latency, and increased data speed. The VR/AR experience is made more immersive and linked by these characteristics, which guarantee a seamless and real-time interactive experience.
Dual USB 3.2 Gen2x2 Type-C (1 Rear, 1 Front)
Reversible USB 3.2 Gen2x2 Type-C can connect either way and transport data at 20 Gbps, twice as fast as the previous iteration.
BIOS Flashback
With a single click, get the most convenient BIOS flashing. With just a USB and power supply, users may effortlessly get the most recent BIOS support; no CPU, RAM, or other parts are needed.

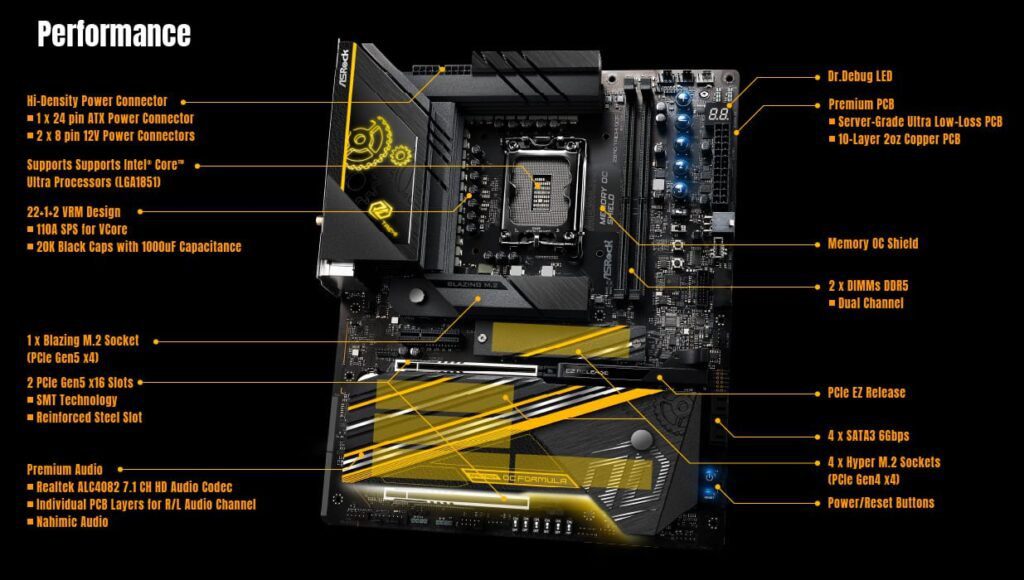

ASRock Z890 Taichi OCF Specs
| Feature | Details |
|---|---|
| Processor Support | Intel Core Ultra Processors (Series 2) (LGA1851) |
| Power Phase Design | 22+1+2+1+1 Power Phase, 110A SPS for VCore |
| Memory | 2 x DDR5 DIMMs, Dual Channel, up to 12527+ (OC) |
| PCIe Slots | 2 x PCIe 5.0 x16, 1 x PCIe 4.0 x4 |
| Graphics Output Options | 2 x Thunderbolt 4 Type-C |
| Audio | Realtek ALC4082 7.1 CH HD Audio Codec, Nahimic Audio |
| SATA Ports | 4 x SATA3 |
| M.2 Slots | – 1 x Blazing M.2 (PCIe Gen5 x4) |
| – 3 x Hyper M.2 (PCIe Gen4 x4) | |
| – 2 x Hyper M.2 (PCIe Gen4 x4 & SATA3) | |
| Thunderbolt Ports | 2 x Thunderbolt 4 Type-C (Rear) |
| USB Ports | – 2 x USB 3.2 Gen2x2 Type-C (1 Rear, 1 Front) |
| – 4 x USB 3.2 Gen2 Type-A (Rear) | |
| – 5 x USB 3.2 Gen1 (1 Rear, 4 Front) | |
| – 3 x USB 2.0 (Front) | |
| Network | 5G LAN, 802.11be Wi-Fi 7 + Bluetooth |
| Overclocking Features | Supports BIOS Flashback, Memory OC Shield, Professional Overclocking Toolkit |
| Capacitors | 20K Caps with 1000uF Capacitance |
