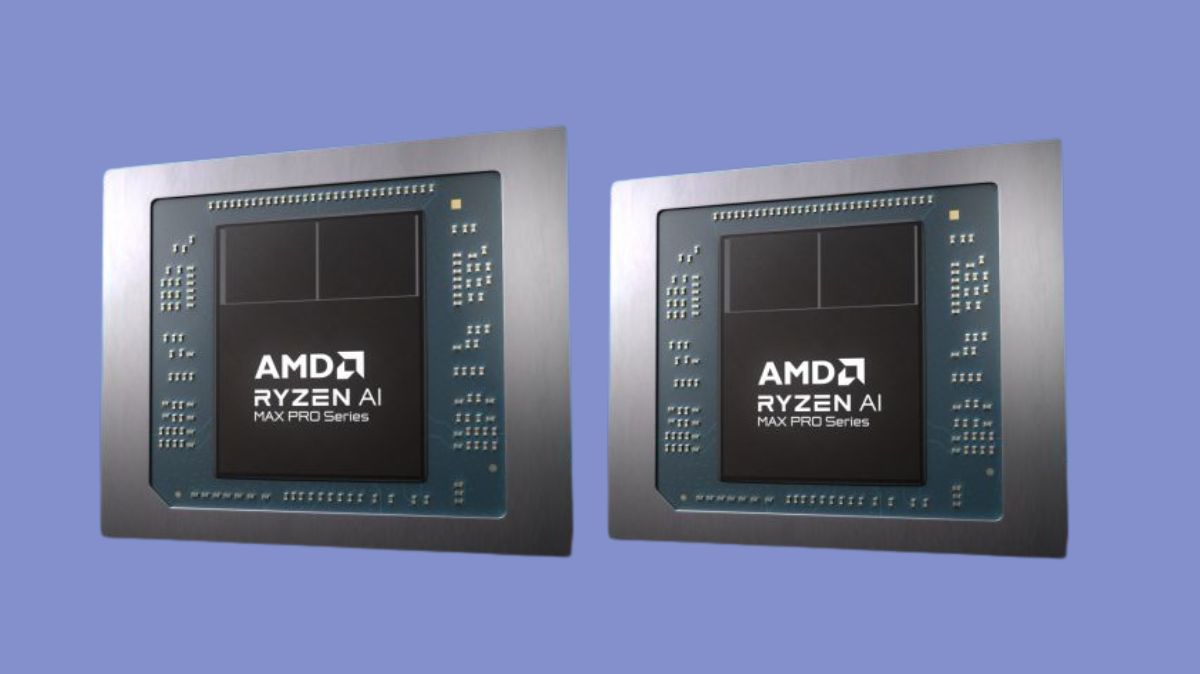

The AMD Ryzen AI Max PRO Series processor is at the pinnacle of AMD’s mobile product lineup, as the name suggests. These CPUs combine AMD’s most recent CPU and NPU technology with a potent integrated GPU that delivers discrete-level performance, pushing the boundaries of integration and scalability. In addition to being AMD’s first 16-core Ryzen PRO processor, the Ryzen AI Max PRO 395+ is the first Ryzen processor to employ a unified memory architecture, supporting up to 128GB of RAM. Systems built with AMD Ryzen AI Max PRO Series CPUs are intended for software developers and creative workers who must adapt, comprehend, and prototype novel AI solutions.
Technical Specifications
Fundamentally, the AMD Ryzen AI Max PRO Series represents a significant advancement in the integration of features that are typically carried out across several separate components, specifically the CPU and graphics processor (GPU). Its features, performance, and power usage demonstrate the ongoing advantages of adding new functions to a single microprocessor.
AMD XDNA 2 neural processing unit (NPU), AMD RDNA 3.5 GPU, and up to 16 desktop-class “Zen 5” CPU cores are included. features of AMD Ryzen AI Max PRO Series processors that provide performance that was previously only achievable with solutions that use a discrete graphics card. The technical specifications of the AMD Ryzen AI Max PRO Series processor are covered in the official whitepaper, but I’ll mention a few things here as well.
As seen above, in the past, the CPU and GPU had independent memory buses. The graphics card’s available memory bandwidth is increased by this split configuration, but the overall amount of memory it can address is decreased.
AMD Ryzen AI Max PRO Series processors use a 256-bit LPDDR5X memory interface to double memory bandwidth and combine the CPU, GPU, and NPU into a single physical die. To further enhance speed, the CPU also has up to 32MB of GPU MALL (Memory Access at Last Level) cache, also known as AMD Infinity Cache technology. The top-end AMD Radeon 8060S has access to up to 96GB of VRAM out of a total of 128GB to this unified memory architecture, which is far more than any other mobile GPU.
There are actual, useful applications for this enormous memory pool and the bandwidth it provides. Businesses may conduct complicated AI inference operations or huge data visualisation models on-device without the typical limitations imposed by restricted GPU memory when a system with this much RAM is provisioned via a unified memory architecture. The AMD Ryzen AI Max PRO Series can retain superior data locality to keep performance high, whether it’s for high-fidelity engineering simulations or real-time analytics for finance.
Despite the excellent list of features, the AMD Ryzen AI Max PRO Series is much than just that. It also serves as an illustration of how AMD is ensuring that long-term trends in CPU development are maintained for the benefit of the whole industry, despite the fact that new workloads and use cases are posing challenges to established computing architectures.
Setting the Historical Background of AMD Ryzen AI Max PRO Series Processors
We previously published the AMD Ryzen AI Max PRO Series as a significant advancement in integration. Though the technical question of what is being integrated has evolved significantly, the idea of integration has been essential to the development of CPUs from their inception.
Integration means putting all of the processor’s functional components on one physical silicon block decades ago. After achieving that objective, CPUs started integrating functions that were previously managed by external caches and co-processors that were connected to the motherboard separately. By integrating these processing components inside the CPU, they were able to take advantage of generational advancements in manufacturing, which led to improved power efficiency, reduced communication latency throughout the chip, and faster performance.
It is impossible to gauge the long-term effects of this integrative enhancement in terms of speeds, feeds, or core counts. The industries that were developed and changed as CPUs improved and absorbed more capability must be mentioned in order to adequately convey its magnitude.
Software developers used CPU advancements in the 1980s to create the word processors, spreadsheets, and desktop publishing suites that become the mainstays of the contemporary workplace. Digital audio workstations, 3D rendering, and non-linear video ediA positive feedback loop of silicon engineering improvements and designers like AMD enabled large-scale developments like the Internet’s spread and its impact on practically every aspect of modern life.
The 2000s and 2010s saw higher clock rates and core counts, improving performance and CPU cores per socket. Businesses used cloud computing and virtualisation to increase server utilisation, cut costs, and reduce physical server requirements. Office apps became more cooperative, promoting cooperation in remote settings. As mobile core counts and battery life rose simultaneously, the PC environment transitioned from tower desktops to laptops and smaller systems.
The cycle is obvious. CPU designers incorporate two to three new, noteworthy features every ten years. Software programmers use these capabilities to improve current products and create new business ventures every ten years. Advances in CPU integration have occasionally been significant enough to encourage the development of completely new markets, services, and social environments.
High-performance AI engines have most recently been included into CPUs to speed up new AI workloads. AMD was the first company to release x86 AI PC processors in 2023. The AMD Ryzen AI Max PRO Series expands on this progressive strategy by fusing the largest and most powerful integrated GPU ever seen in an x86 PC with a second-generation NPU.
The AMD Ryzen AI Max PRO Series assumes greater relevance when seen in this light. It incorporates new computational capabilities, just like its predecessors, to enable creative, unimagined use cases. Crucially, as developers and businesses struggle with the higher memory and processing demands of AI workloads, these CPUs are hitting the market.
Depending on the demands of the developer, the AMD Ryzen AI Max PRO Series offers the benefit of two dedicated AI processing solutions to its discrete-class integrated GPU and the same AMD XDNA 2-based NPU as previous AMD Ryzen AI 300 Series processor-based systems. This is due to the fact that AMD Ryzen AI Max PRO Series processors are made to construct, not simply operate, the workloads and apps of the future.
The Enterprise Market and AI:
Nowadays, the vast majority of businesses are either using artificial intelligence or at least experimenting with it. Microsoft is also fully committed to using AI as a differentiator for its client and commercial platforms. In early 2024, the OS developer unveiled its “Copilot+ PC” program and a new Copilot button specifically designed for AI PC keyboards. Only devices with >40 TOPS are eligible for Copilot+ PCs, which feature sophisticated AI functionality operating directly on the device.
According to corporate VP Gaston Sandoval’s recent blog, AI PCs are anticipated to spread quickly in the market due to the upcoming Windows 11 refresh cycle and wide OEM availability. As businesses experiment with the technology, functional AI installations and hybrid AI AI that operates both on-device and in the cloud will become more common.
At the top of the AI PC stack are devices with AMD Ryzen AI Max PRO Series processors. They are comparable to Microsoft Copilot+ PCs and have the AMD Ryzen AI PRO 300 Series’ AMD XDNA 2 NPU architecture, however they have a lot greater memory bandwidth and a huge amount of customisable VRAM. This enables these systems to support workloads typically associated with workstations and AI inference models that are beyond the capabilities of most mobile video cards.
Engineers, product designers, architects, and other creators who desire professional, ISV-certified graphics without the battery life loss that comes with using a separate GPU are the target audience for AMD’s Ryzen AI Max PRO Series. It is intended for business clients who require AMD PRO Technologies’ security, manageability, and dependability capabilities. It is intended for programmers who are creating and refining AI. Above all, though, it’s for the visionaries who transform technological advancements into software that pushes the envelope, from Lotus 1-2-3 and WordStar to the innovative operating systems, AI models, and applications that characterise today’s cutting edge of computing.
