AWS AppSync API
Amazon is announced that AWS AppSync Events now allows channel namespace data source connectors, allowing developers to build increasingly complex real-time applications. This new feature allows you to link channel namespace handlers to AWS Lambda functions, Amazon DynamoDB tables, Amazon Aurora databases, and other data sources. Building sophisticated, real-time apps with capabilities like data validation, event transformation, and permanent event storage is possible with AWS AppSync Events.
With these new features, developers may use the new AppSync_JS batch utilities to store batches of events to DynamoDB or use Lambda functions to alter and filter events to construct complex event processing workflows. Complex interactive processes are made possible by the integration, which also cuts down on operational overhead and development time. For instance, events may now be automatically stored in a database without the need for intricate integration code.
First look at data source integrations

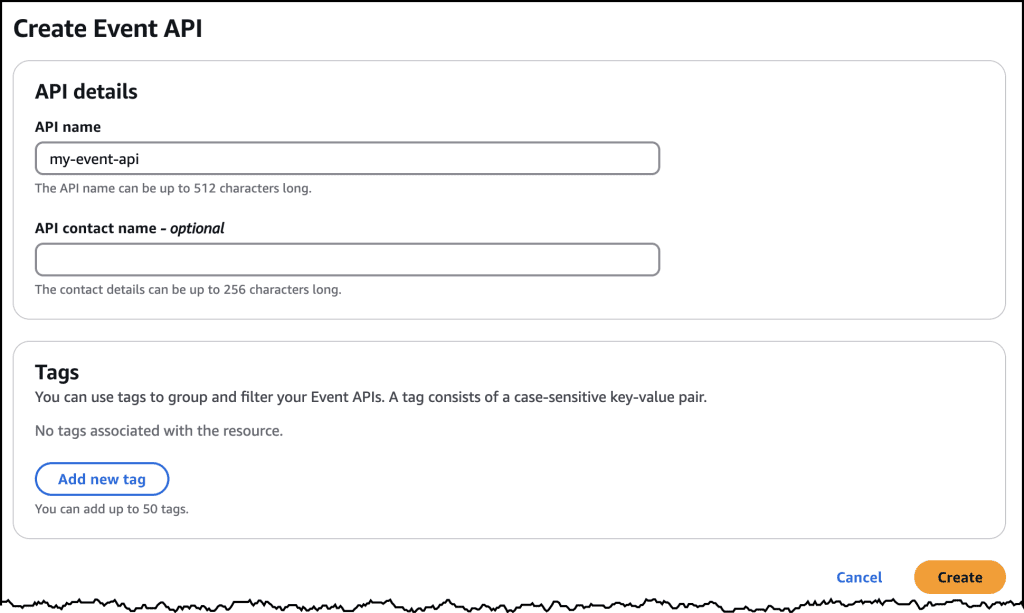

Set up data source connectors with the AWS Management Console. It will start by choosing my Event API (or creating a new one) in the console after navigating to AWS AppSync.
Persisting event data directly to DynamoDB

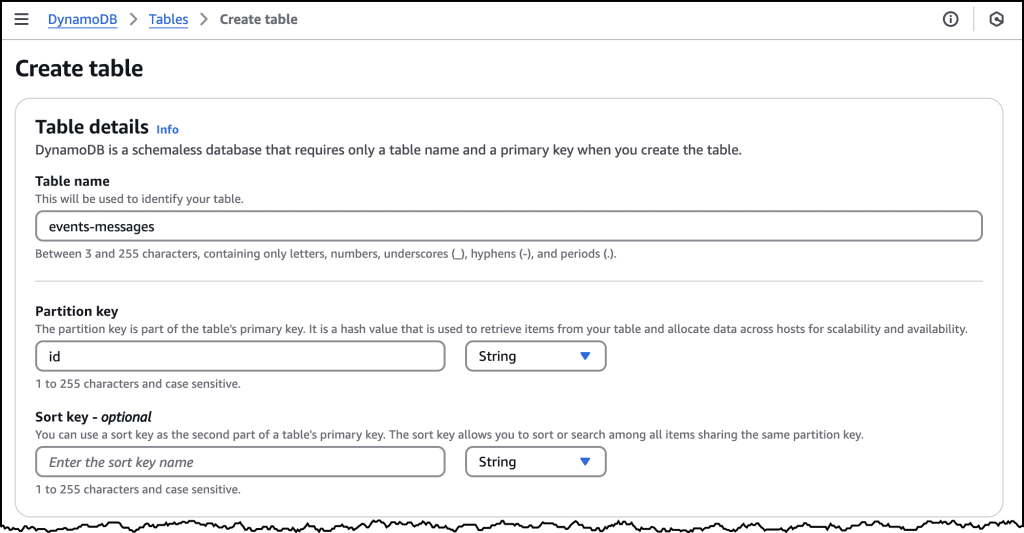

There are several types of data source integrations available. It will make a DynamoDB table to serve as the data source for this initial example. Go to DynamoDB in the console and make a new table named event-messages as it need one first. All it has to do in this case is construct the table using the Partition Key id. Before returning to AppSync in the console, It may select Create table and accept the default table settings.

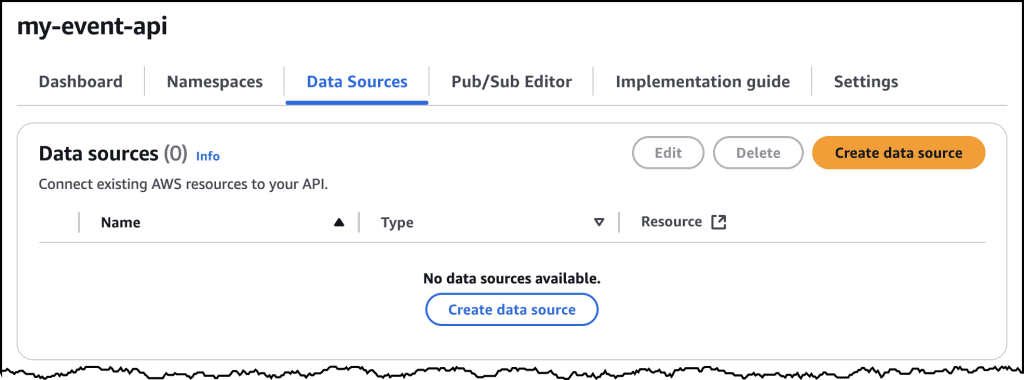

Go back to the Event API that previously configured in the AppSync interface, choose Data Sources from the tabbed navigation panel, and then click the Create data source button.

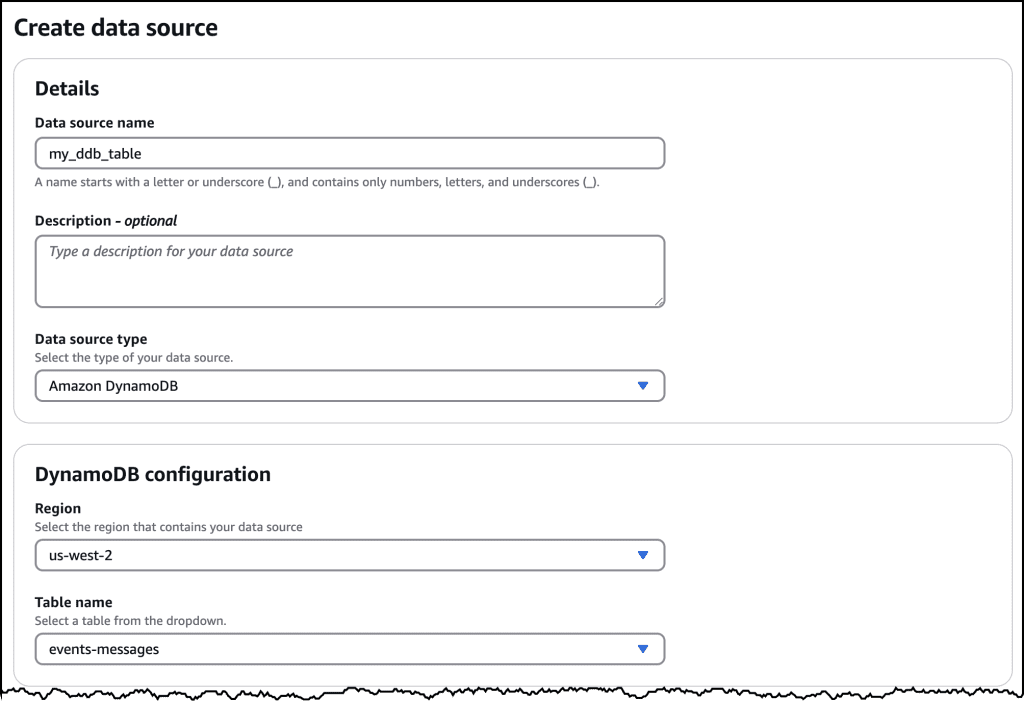

Choose Amazon DynamoDB from the Data source drop-down option after naming my data source. This will display DynamoDB setup choices.
It can put the handler logic into practice after configuring my data source. An illustration of a publish handler that persists events to DynamoDB is provided here:
import * as ddb from '@aws-appsync/utils/dynamodb'
import { util } from '@aws-appsync/utils'
const TABLE = 'events-messages'
export const onPublish = {
request(ctx) {
const channel = ctx.info.channel.path
const timestamp = util.time.nowISO8601()
return ddb.batchPut({
tables: {
[TABLE]: ctx.events.map(({id, payload}) => ({
channel, id, timestamp, ...payload,
})),
},
})
},
response(ctx) {
return ctx.result.data[TABLE].map(({ id, ...payload }) => ({ id, payload }))
},

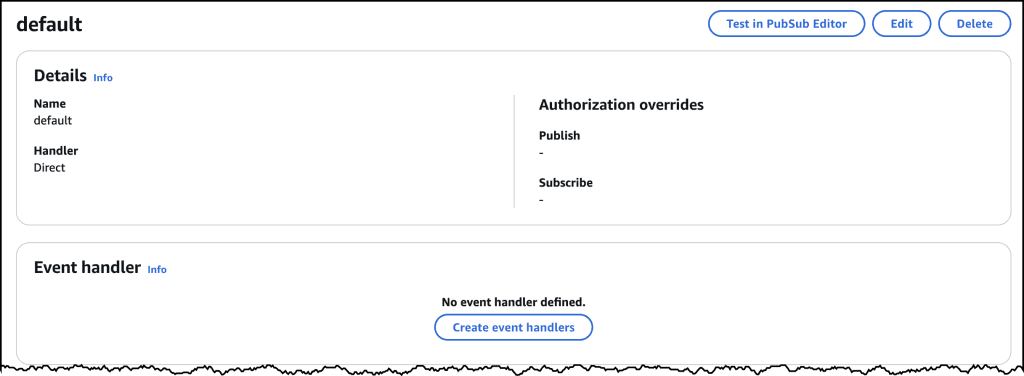

}Proceed to the Namespaces tabbed navigation and select a new default namespace that has already been established for it in order to add the handler code. The opportunity to create an Event handler is located directly beneath the setup details if click to access the default namespace.
Amazon is presented with a new dialogue box when it click on Create event handlers. Configure Code and DynamoDB data sources as publish.
Save the handler to test console tool integration. It has successfully written two events to DynamoDB table using the default settings.
Error handling and security
The extensive error handling capabilities are part of the new data source connectors. In order to ensure security by preventing clients from seeing important backend data, you can return certain error messages for synchronous activities that will be recorded to Amazon CloudWatch. To manage access to particular channels or message types in authorisation situations, you may use Lambda functions to provide custom validation logic.
Available now
All AWS regions where AWS AppSync is accessible now provide data source integrations for AWS AppSync Events. With the AWS AppSync console, AWS command line interface (CLI), or AWS SDKs, you may begin utilising these new functionalities. You only pay for the underlying resources you utilise (such Lambda invocations or DynamoDB operations) and your current AppSync Events use when you employ data source integrations.
AWS AppSync Events
Real-time experiences
Create captivating user experiences
Without having to set up and maintain WebSockets infrastructure, you may publish and subscribe to real-time data updates and events, such as live sports scores and statistics, group chat messages, pricing and inventory level changes, or location and schedule updates, with ease.
Pub/Sub channels
Simplified Pub/sub
Simply naming their Event API and specifying its default authorisation mode and channel namespace(s) allows developers to begin using AppSync Event APIs. That’s all. After that, they may start publishing events to the channels they specify at runtime right away.
Event handlers
Change and filter messages
Developers can utilise event handlers, which are optional, to execute sophisticated authorisation logic on publish or subscribe connection requests and to modify events as they are broadcast.
