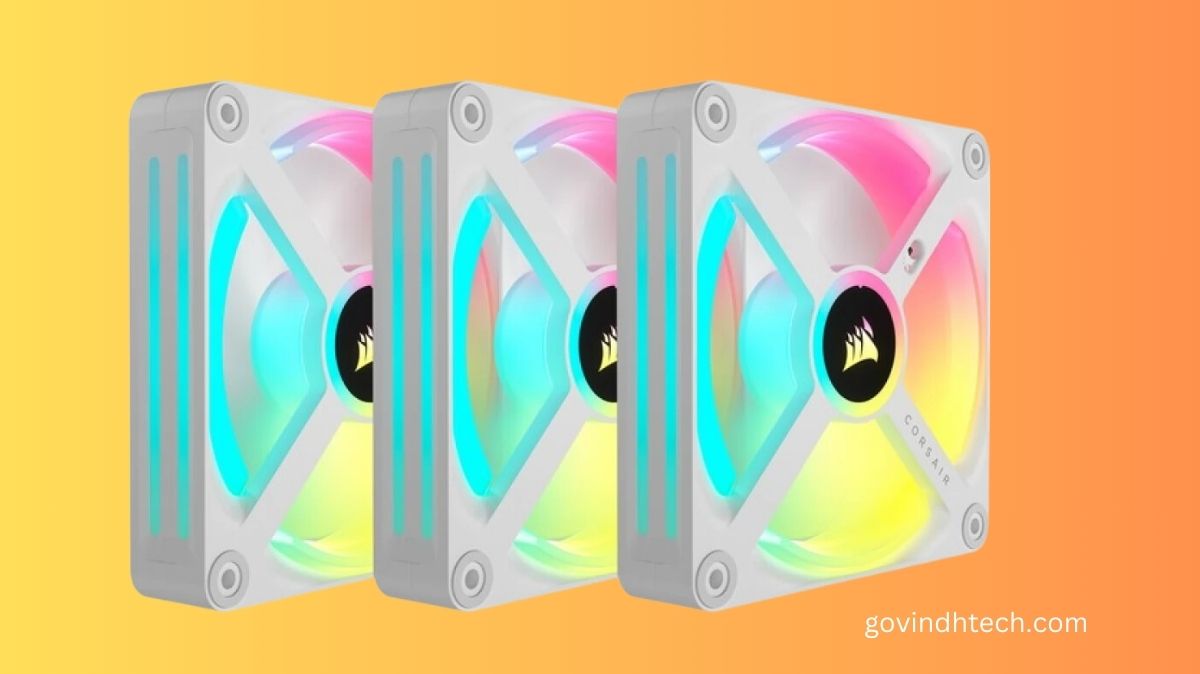

The Corsair iCUE LINK QX120 RGB fan specs

The Corsair iCUE LINK QX120 RGB case fan utilizes the ground-breaking iCUE LINK communication protocol, making it simple to handle and connect the fans to other system parts. This makes cable management easier and lessens cable mayhem. The starting package comes with three fans that have unique lighting features including Time Warp. Users may accurately change the fan speed up to 2,400 rpm using PWM control, and a magnetic levitation bearing provides low friction, long life, and low noise.

The strong PWM-controlled fans have speeds between 480 and 2,400 RPM, which provide effective cooling without extra noise. Overall, users seeking effective cooling, simple installation, and eye-catching RGB lighting options should consider the Corsair iCUE LINK QX120 RGB case fans. The iCUE LINK technology also offers additional advantages in terms of cable management and synchronization with other system components.

Corsair iCUE LINK: What is it? This will do for now:

With clever single-cable connection, Corsair iCUE Link streamlines the handling of cables and connectors in PC systems. With a single system hub, users may connect up to 14 devices to cut down on cabling by synchronizing and managing RGB lighting and cooling across all compatible devices. With the help of this technology, coolers and fans may now be linked together via a single connection to a motherboard or central hub rather than separately.

Users may handle their PC components more effectively and simply by utilizing Corsair iCUE Link, particularly when it comes to RGB lighting and cooling.

What about the fans, then?

Let’s now go into the specifics. The Corsair iCUE LINK QX120 RGB represents a broad range of 120mm fans with the unique iCUE LINK technology for easy administration and integration with the PC system. A fan now costs roughly $42 per unit, although it should be noted that it is inoperable without the extra system hub. As an alternative, Corsair provides a beginning package that includes three QX120 RGB fans and a system hub for little over 140 euros. The single fan, on the other hand, is advertised as an Expansion Pack. The 140mm diameter iCUE LINK QX140 RGB variant is now available for individuals who want a bigger fan.

The full Starter Kit comes with the three fans as well as the necessary System Hub. To enable flexible installation and interface to the system, the package also contains double-sided tape, a 60cm iCUE LINK cable, a PCIe power adapter, a USB cable, and fan screws. The extension Kit, in contrast, simply comprises the fan and a few fan screws and connections, making it simpler to add a complementing extension to the system. It should be noted that while there is no physical manual supplied, both the Starter Kit and Expansion Kit include information on safety and warranties. The webpage serves as the primary digital installation and administration reference since the manual is only accessible online.

Each fan has an exterior ARGB light ring and an ARGB light in the hub, almost creating an apparent RGB area fire. You have to agree with that, but those that need it will undoubtedly be delighted to find this. The company claims that the magnetic levitation bearing (Magnetic Dome), which supports the impeller’s nine somewhat steeply pitched rotor blades, should increase longevity and reduce noise. Another trick is the resistor for temperature detection that is mounted in each fan and controls quite nimbly.

The construction quality is acceptable and reasonable given the cost. Although there are already fans on the market with gaps of less than 1 mm, the gap dimensions are also acceptable. Because there are hardly any burrs on the rotor blades, the tear-off noise should be reduced.

Corsair has significantly lifted the bar with the Corsair iCUE LINK QX120 RGB, mostly in connectivity but also, regrettably, in price

Corsair iCUE LINK QX120 RGB fan specs

Let’s briefly check the table containing the essential information from the manufacturer before we begin the measurements:

Fan size120 mm x 25 mm
Current consumption1.02 A
LED colorRGB
Speed480 to 2,400 rpm
Loudness10 to 37 dB
Max. Delivery volume107,21 m³/h
Max. static pressure3,8 mmH2O
OptimizationUse in front of radiators or in housing
The table with the manufacturer’s key data
