Small Form Factor(SFF)-Ready Eager GeForce Cards & Cases

Small Form Factor PC Gaming

Stylish cases allow Small Form Factor (SFF) PCs to fit into media centers, be brought to LAN parties, and be exhibited on desks. They can also be tucked away in small areas. SFF, which was formerly a niche format only a few boutique builders supported, is now offered by many top case manufacturers.

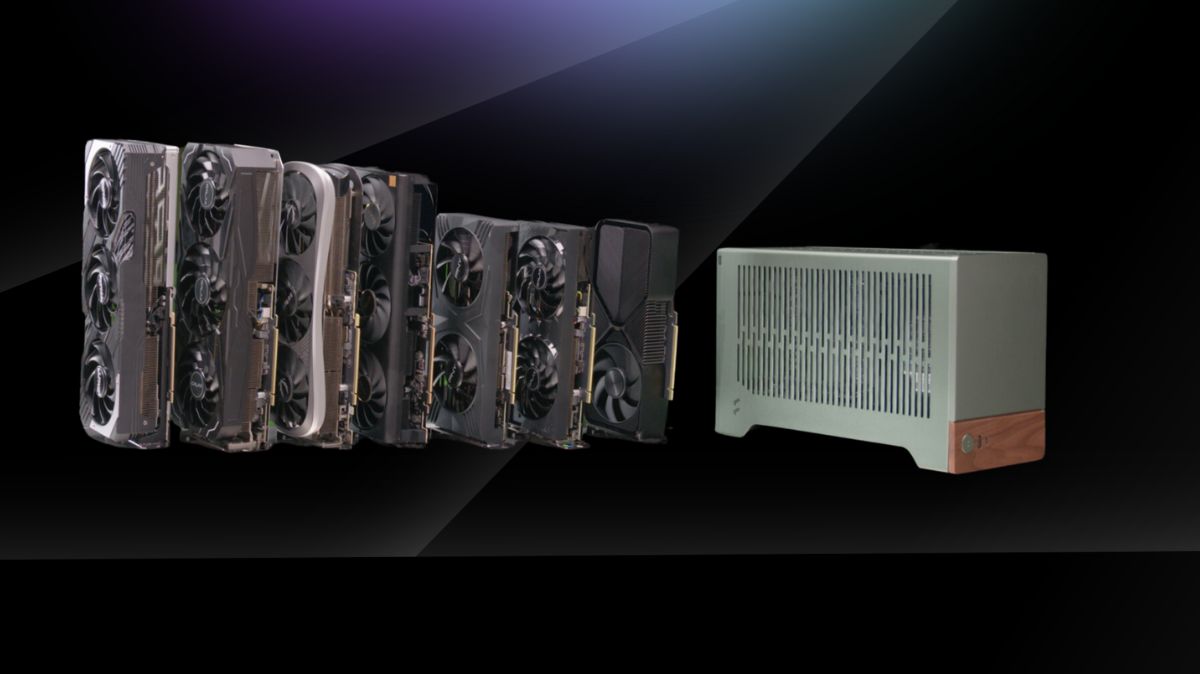

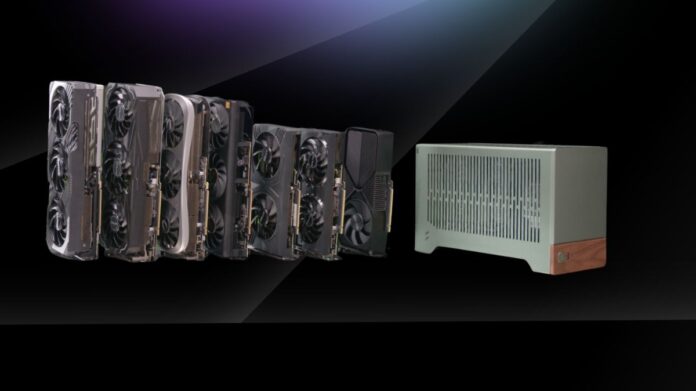

SFF-Ready GeForce Cards and Cases

However, component compatibility is still a problem, so potential buyers must consult specification papers and inquire with other enthusiasts about the availability of room and clearance for assemblies, parts, and cables. The dimensions of GeForce RTX graphics cards are listed on partners’ pages, but clearances for power cables and connectors are typically not mentioned. This means that determining if a graphics card is SFF-suitable will require guesswork and additional study. GeForce RTX graphics cards are available in a wide range of sizes.

NVIDIA is launching a new Small Form Factor-Ready guideline for GeForce RTX enthusiast graphics cards and cases in collaboration with graphics card and case makers to simplify component selection. This new rule will inform you right away if a graphics card is compatible with an SFF case.

“ASUS is thrilled to collaborate with NVIDIA to bring potent performance in small, space-saving designs, as ardent supporters of the small form factor community. PC enthusiasts may fully utilize Small Form Factor technology with NVIDIA’s SFF-Ready Enthusiast GeForce graphics cards and enclosures.

Graphics cards that meet the guidelines will soon be labelled as “SFF-Ready Enthusiast GeForce Cards” and cases as “Compatible with Small Form Factor-Ready Enthusiast GeForce Cards” on manufacturer product pages and listings on international retailers. This will make it easy to identify parts that fit together and give you the confidence to buy and build.

Introducing GeForce Cards for Small Form Factor-Ready Enthusiasts

GeForce Cards that are Small Form Factor-Ready Enthusiast are RTX 4070 or higher and have the following dimensions:

  • Maximum height with power cable bent radius: 151 mm
  • Maximum length: 304 mm
  • Maximum depth: 50 mm or 2.5 slots

By setting restrictions, manufacturers may design to them going forward, allowing you to update your GPU without having to rebuild the chassis of your system. These constraints also ensure that there is the appropriate space, clearance, and working room inside SFF-Ready cases.

As of June, 2024, 36 GeForce RTX 40 Series enthusiast graphics cards from NVIDIA and their partners ASUS, GALAX, GIGABYTE, INNO3D, MSI, Palit, PNY, and Zotac have been revealed as meeting the Small Form Factor-Ready guidelines. More are expected to be revealed in the days ahead at Computex 2024:

Introducing SFF-Ready Enthusiast GeForce Cards
ManufacturerModelGraphics Card Size (H X L x D) in mm
NVIDIAGeForce RTX 4070 Founders Edition112 x 244 x 40
NVIDIAGeForce RTX 4070 SUPER Founders Edition112 x 244 x 40
ASUSPRIME GeForce RTX 4070 SUPER OC Edition 12GB GDDR6X120 x 269 x 50
ASUSProArt GeForce RTX 4080 SUPER 16GB GDDR6X OC Edition120 x 300 x 50
ASUSProArt GeForce RTX 4070 Ti SUPER 16GB GDDR6X OC Edition120 x 300 x 50
ASUSProArt GeForce RTX 4070 SUPER 16GB GDDR6X OC Edition120 x 300 x 50
ASUSProArt GeForce RTX 4070 OC edition 12GB GDDR6X120 x 300 x 50
GALAXGeForce RTX 4070 SUPER 1-Click OC 2X115 x 238 x 45
GALAXGeForce RTX 4070 SUPER 1-Click OC 2X V2115 x 238 x 41
GALAXGeForce RTX 4070 1-Click OC 2X115 x 238 x 45
GALAXGeForce RTX 4070 1-Click OC 2X V2115 x 238 x 41
GALAXGeForce RTX 4070 1-Click OC 3X121 x 299 x 40
GIGABYTEGeForce RTX 4070 EAGLE OC V2115 x 282 x 41
INNO3DGeForce RTX 4070 Ti SUPER TWIN X2 OC WHITE118 x 250 x 42
INNO3DGeForce RTX 4070 SUPER TWIN X2 OC WHITE118 x 250 x 42
INNO3DGeForce RTX 4070 TWIN X2 OC WHITE118 x 250 x 42
INNO3DGeForce RTX 4070 Ti SUPER X3 OC118 x 297 x 42
INNO3DGeForce RTX 4070 SUPER X3 OC118 x 297 x 42
INNO3DGeForce RTX 4070 X3 OC118 x 297 x 42
MSIGeForce RTX 4070 Ti SUPER 16G Shadow 3X119 x 304 x 43
MSIGeForce RTX 4070 Ti SUPER 16G VENTUS 2X OC125 x 242 x 50
MSIGeForce RTX 4070 SUPER 12G VENTUS 2X OC125 x 242 x 43
MSIGeForce RTX 4070 12G VENTUS 2X OC125 x 242 x 43
MSIGeForce RTX 4070 Ti SUPER 16G VENTUS 3X OC119 x 304 x 50
MSIGeForce RTX 4070 SUPER 12G VENTUS 3X OC119 x 304 x 43
MSIGeForce RTX 4070 VENTUS 3X 12G OC119 x 304 x 43
MSIGeForce RTX 4070 VENTUS 3X  E 12G OC119 x 304 x 43
PalitGeForce RTX 4070 Infinity 3116 x 293 x 49
PalitGeForce RTX 4070 SUPER Infinity 3116 x 293 x 49
PalitGeForce RTX 4070 Ti SUPER Infinity 3116 x 293 x 49
PalitGeForce RTX 4080 SUPER Infinity 3116 x 293 x 49
PNYGeForce RTX 4070 SUPER 12GB VERTO Overclocked Dual Fan120 x 247 x 41
PNYGeForce RTX 4070 SUPER 12GB XLR8 Gaming VERTO Overclocked Edition119 x 304 x 40
ZOTACGeForce RTX 4070 Blower111 x 268 x 40
ZOTACGaming GeForce RTX 4070 SUPER Twin Edge123 x 233 x 40
ZOTACGaming GeForce RTX 4070 Twin Edge White123 x 223 x 45

Cases for GeForce Cards Ready for SFF Enthusiasts

Cases designed to accommodate Small Form Factor-Ready Enthusiast GeForce Cards have to possess sufficient room to accommodate any SFF-Ready Enthusiast GeForce Card, the power connector that comes with the product, and all other essential PC components. The amount of space needed between the motherboard and riser PCB and the side or top case panel is 154.5mm, depending on how the graphics card is oriented. A case also needs to have room for an extender, if any, and graphics card that add 312mm to the overall length.

The range of options that are currently accessible is demonstrated by the collection of Small Form Factor cases that are compatible with SFF-Ready Enthusiast GeForce Cards that are listed below. Look for the “Compatible with SFF-Ready Enthusiast GeForce Cards” label on manufacturer websites to view further suitable cases.

Why Build A PC for SFF Gaming?

Many individuals find satisfaction in Small Form Factor systems, and powerful technology can now be packed into Small Form Factor cases without thermal throttling or outright overheating, providing ultra quality gaming or rapid creation without compromising. This is made possible by the rising efficiency of computer components.

Small Form Factor systems fit into any home or area, in a media Centre, behind the TV, or on a shelf because of their compact size, which makes them appear more aesthetically pleasant and fashionable. Additionally, they are compact enough to fit in a cupboard when not in use and can be positioned to the side or behind a desk of average width.

LAN gatherings benefit greatly from Small Form Factor gaming PCs as well, since they make it easy to transport your impressively powerful machine to and from the gathering. For someone who frequently moves, they’re also an excellent choice. Even better, you can bring a fully functional SFF PC on your trip in a hand luggage-sized case that is approved by airlines and ready to be connected to a TV when you get there.
