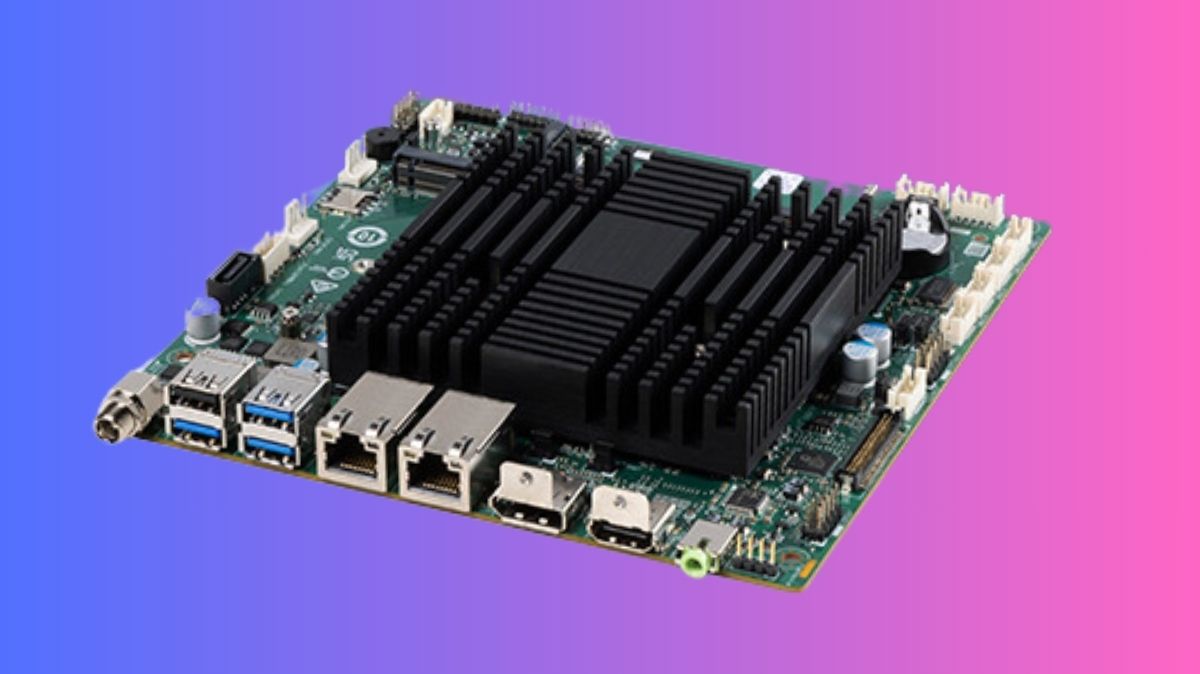

MSI MS-CF13 Mini-ITX: Ultra Low-Power, Fanless Motherboard

- Advertisement -

MSI proudly presents the MS-CF13 Mini-ITX motherboard, a ground-breaking device with ultra low power consumption, low profile, and fanless design that is engineered to satisfy the demands of contemporary applications. Driven by the Intel Alder Lake-N SoC series, the MS-CF13 is a great option for a range of sectors since it provides great performance without sacrificing energy efficiency.

Important characteristics

Intel Alder Lake-N Processor-Powered

With its Intel Alder Lake-N PC Client & Embedded Series SoC, the MS-CF13 offers dependable and effective performance for a wide range of applications.

- Advertisement -

High-Speed Memory

The motherboard supports up to 16GB of memory and has a DDR5 4800 MHz SODIMM slot, which guarantees strong data handling capabilities.

Triple Independent Displays:

Suitable for applications requiring multiple high-resolution screens, it supports DP, HDMI/DP, and LVDS/eDP.

Improved Network Connectivity

Two 2.5 GbE LAN ports with RJ-45 are included, offering fast network connections for jobs requiring a lot of data.

Versatile extension and Storage

This product provides a large amount of extension and storage capacity with its 1 M.2 E Key slot, 1 M.2 B Key (with SIM Holder, supporting B+M keys), and 1 SATA 3.0 connector.

- Advertisement -

Rich I/O Ports:

The MS-CF13 allows for easy connection with a wide range of devices thanks to its 2 USB 10Gbps, 1 USB 5Gbps, 3 USB 2.0, 6 COM, GPIO, Audio, and a 3W amplifier.

Advanced Security:

For critical applications, Onboard TPM 2.0’s improved security capabilities are essential.

DC-IN 12V:

This device is appropriate for settings with constant power needs since it can handle a steady 12V DC input.

Applications in Industry

These sectors are especially well-suited for the MS-CF13 Mini-ITX motherboard because of a number of important features:

E-MAIL

Silent operation is guaranteed by the fanless design, which is essential in settings where noise can be distracting.

Multiple Display Outputs

Enables dynamic and high-resolution digital signage by supporting triple independent displays (DP, HDMI/DP, and LVDS/eDP).

Low Power Consumption

This feature lowers energy expenses and is perfect for installations that need to run continuously.

MEDICAL APPLIANCES

Compact medical devices with limited space can accommodate equipment with a low-profile form factor.

High Reliability

By lowering the possibility of a mechanical breakdown, the fanless design ensures reliable operation.

Improved Connectivity

Several USB and COM connections make it easier to connect different medical equipment and gadgets.

CURRENT COMPUTING

Ultra Low-Power Consumption

A must for edge devices that must function well in isolated or power-constrained locations.

Sturdy Processing Capacity

The Intel Alder Lake-N SoC offers the processing capacity required for real-time analytics and data processing.

SECURITY MONITORING

Several Display Outputs

This feature is essential for monitoring and surveillance applications as it allows for the support of several high-resolution screens.

High-Speed Network Connectivity

Two 2.5 GbE LAN connections provide dependable and quick data transfer for streaming video.

Fanless Design

This improves dependability and lowers maintenance requirements, which is crucial for round-the-clock security systems.

MS-CF13

  • Intel PC Client & Embedded Series SoC Alder Lake-N
  • Up to 16GB DDR5 4800 MHz SODIMM Slot
  • Three separate displays: DP, LVDS/eDP, and HDMI/DP
  • 2 RJ-45 2.5 GbE LAN ports
  • One M.2 B key (with SIM holder) and one M.2 E key slot
  • SATA 3.0 for storage and 1 M.2 B key
  • Six USB 2.0 ports, six COM ports, GPIO ports, audio ports, and a 3-watt amplifier
  • TPM 2.0 on board
  • DC-IN 12V

Technology has increased demand for compact, silent, energy-efficient, high-performance computing equipment. Mini-ITX motherboards are used for industrial, home automation, and personal computers. The remarkable, fanless, low-profile, and ultra-low-power MS-CF13 Mini-ITX motherboard meets users’ expectations for efficiency, silent operation, and compactness.

This Motherboard distinguishes out in compact form-factor computing with a unique blend of characteristics that make it perfect for silent operation and low power usage.

Marvel without fans

MS-CF13 Mini-ITX motherboards are fanless. Without moving parts, fanless operation reduces mechanical failure and increases system durability. This feature is essential for industrial automation, digital signage, and other mission-critical applications. The fanless design makes the system quiet, making it ideal for quiet offices or homes.

Low-profile and compact

The MS-CF13‘s 17 cm by 17 cm size makes it ideal for space-constrained applications. Its modest profile fits inside compact cases or enclosures, making it excellent for space-constrained installations. This mini-ITX motherboard has necessary functions and tremendous flexibility despite its small size.

Ultra-Low Power Use

Ultra-low power consumption distinguishes the MS-CF13. This makes it energy-efficient, lowering power bills and device emissions. Always-on applications or systems that need low-power operation are ideal for the board. IoT devices and digital kiosks can run on the MS-CF13 for hours without drawing power.

Excellent Connectivity

The MS-CF13 has amazing connection despite its compact size. This motherboard supports several devices and peripherals with dual Gigabit Ethernet, numerous USB 3.0, and HDMI and DisplayPort outputs. The MS-CF13 has all the ports you need for networking, data transport, and multimedia.

The board supports SATA III and M.2 SSDs for rapid data transfer and flexible storage choices. This suits data-intensive applications like media servers and NAS.

Flexible Use Cases

The MS-CF13 Mini-ITX motherboard can be utilized in several ways:

Industrial Automation

Its fanless design and low power consumption make it perfect for harsh industrial applications.

Digital Signage

Its small size and long-term quietness make it ideal for digital signage displays.

Home Servers

The board’s low energy consumption and silent operation make it ideal for home servers.

IoT Gateways: The MS-CF13 supports various sensors and devices with low power.

Energy Efficiency for Green Future

Sustainability-conscious consumers might consider the MS-CF13 Mini-ITX motherboard as the globe evolves toward greener technologies. Ultra-low-power design reduces electricity expenses and computing device carbon footprint. This makes it appealing to companies and individuals that wish to become green without sacrificing performance.

Designed for Tomorrow

The MS-CF13 motherboard is designed for the future. As energy-efficient, compact computer solutions become more popular, the MS-CF13 can meet those needs. Its fanless design, low-profile build, and ultra-low power consumption make it relevant for years in industrial environments, smart homes, and the Internet of Things.

Conclusion

The MS-CF13 Mini-ITX motherboard is a great choice for fanless, low-profile, ultra-low-power computing. Its remarkable features, flexible connection, and energy efficiency make it excellent for many applications. The MS-CF13 provides the power and versatility to build a silent, power-saving home server or an industrial automation configuration.

MS-CF13 Mini-ITX motherboard Specs

FeatureSpecification
Form FactorMini-ITX, fanless, low-profile
Processor SupportSupports low-power Intel/ARM processors
Power ConsumptionUltra-low power design
Cooling SystemFanless
Expansion SlotsPCIe 3.0 x16 slot, M.2 for SSDs
Memory Support2 x DDR4 SO-DIMM slots, up to 32 GB
Storage Options1 x SATA III port, 1 x M.2 slot
Connectivity2 x Gigabit Ethernet, multiple USB 3.0 ports
Display OutputsHDMI 2.0, DisplayPort
AudioHigh-definition audio chipset
Power InputDC-in, 19V (with support for external power supplies)
