New MS CF10 Mini-ITX Motherboard: Powerful & Flexible

- Advertisement -

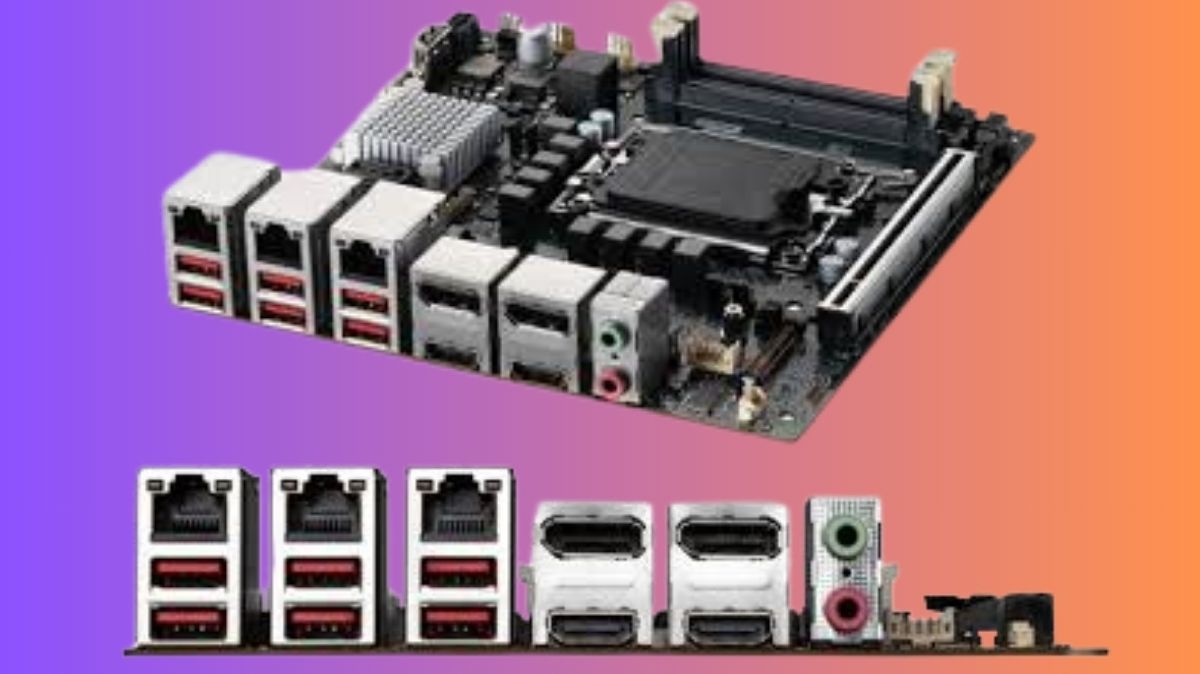

MS CF10 Mini-ITX Motherboard

Presenting the MS-CF10 Mini-ITX Motherboard: An Exceptionally Fast and Adaptable Option for Contemporary Uses

The powerful, flexible MS-CF10 Mini-ITX motherboard is now available. The MS-CF10 employs 14th/13th/12th Gen Intel Raptor Lake-S Refresh/Raptor Lake-S/Alder Lake-S CPUs such Core i9/i7/i5/i3, Pentium, and Celeron for high-performance computing.

- Advertisement -

Important characteristics:

Advanced Processor Support

MS-CF10 R680E/Q670E/H610E chipsets maximise Intel 14th, 13th, and 12th Gen Raptor Lake-S Refresh/Alder Lake-S series CPU efficiency.

High-Speed Memory

The motherboard can accommodate up to 64GB of memory and has two DDR5 5200 MT/s ECC/non-ECC SODIMM slots, which provide strong data processing capabilities.

Many Display Outputs

The MS-CF10 is perfect for applications demanding many high-resolution screens since it has quadruple independent displays with 2 DP, HDMI 2.0, and LVDS/eDP.

Improved Connectivity

Three 2.5GbE LAN ports with RJ-45 are included on the motherboard, guaranteeing fast network connectivity for jobs requiring a lot of data.

- Advertisement -

Extension and Storage Options

The MS-CF10 provides a wide range of extension and storage options, including support for SATA RAID 0/1/5, with 1 PCIe x16 (Gen 5) slot, 1 M.2Two SATA 3.0 ports, one M.2 B key (with SIM Holder), one M.2 M key, and an E key (with CNVi).

Extensive I/O interfaces

The MS-CF10 offers smooth communication with a range of devices thanks to its 6 USB 10Gbps, 2 USB 5Gbps, 3 USB 2.0, 4 COM (4 RS-485), GPIO, Audio, and System FAN interfaces.

Security and Management

Improved security and remote management capabilities are offered by TPM 2.0 onboard as well as compatibility for SMBus and iAMT 16.x.

Broad Voltage Support

The motherboard is able to operate in a variety of power situations due to its broad voltage DC-IN range of 8-48V.

With its excellent performance and adaptability, the MS-CF10 Mini-ITX motherboard is perfect for the following application industries, according to its specifications:

Automation in Industry

High-Performance Processor

Equipped with processors from generations 14 through 13, 12, and 13, the Intel Raptor Lake-S Refresh/Raptor Lake-S/Alder Lake-S series ensures rapid and efficient data processing.

Support for Multiple monitors

Fits automation control systems that need more than one monitoring screen; supports up to four separate monitors.

Rich I/O connectors

Connecting a range of sensors and devices is made simpler by the six USB 10Gbps and three 2.5GbE LAN interfaces.

Digital Advertising and Signage

High-Resolution Display Output

Suitable for high-resolution digital signage applications, this display output supports two DP and HDMI 2.0 connectors.

Strong Graphics Processing

Supports high-performance graphics cards with a PCIe x16 (Gen 5) slot.

Versatile Storage Options

Provides rapid read and write rates for data with support for RAID 0/1/5 and M.2 and SATA 3.0 ports.

Medical Devices

Superior Reliability and Stability

DDR5 ECC/non-ECC memory slots provide up to 64GB of RAM, guaranteeing system stability and data integrity.

Various Connectivity Options

Numerous USB and COM connections are included, providing a multitude of connectivity options for connecting to different medical equipment.

TPM 2.0 and iAMT 16.x

The medical industry’s requirements for data protection and remote diagnostics are met by TPM 2.0 and iAMT 16.x, which provide enhanced security and remote administration functions.

Cutting-Edge Computing

Strong Processing Capability

Large data analysis and real-time processing operations may be handled by high-performance Intel CPUs with a wealth of I/O ports.

Wide Voltage Support

DC-IN 8-48V, flexible enough to operate in a range of power conditions.

Several Expansion Options

Facilitates the integration of different functional modules by enabling both PCIe and M.2 expansion.

Safety Monitoring

Multi-Display Output

Up to four separate displays may be supported by the multi-display output, making it appropriate for security systems that need to monitor many screens.

High-Bandwidth Network Connection

Three 2.5GbE LAN ports make up a high-bandwidth network connection that may be used to transmit video data at high speeds.

Rich Connectivity Options

Several USB and COM ports make it easier to attach cameras and other security gear.

The MS-CF10 Mini-ITX motherboard‘s excellent performance, adaptability, and expandability may be completely used by these industries to suit their unique application requirements.

By providing innovative solutions that meet the constantly shifting needs of its clients, MSI stays at the forefront of the industry.

MS-CF10

  • Intel Raptor Lake-S Refresh/14th, 13th, and 12th Generation, R680E/Q670E/H610E
  • FweUp to 64GB of DDR5 5200 MT/s ECC/non-ECC SODIMM slots
  • Independent quadruple displays: LVDS/eDP, HDMI 2.0, and 2DP
  • Three RJ-45 2.5GbE LAN ports
  • One M.2 B key (with SIM Holder), one M.2 E key (with CNVi), and one PCIe x16 (Gen 5) slot
  • 2 SATA 3.0 for storage and M.2 M key
  • SATA RAID 0/1/5
  • GPIO, Audio, System Fan, 4 COM (4RS-485), 6 USB 3.2 Gen 2, 2 USB 3.2 Gen 1, and 3 USB 2.0 ports
  • TPM 2.0 on board
  • SMBus and iAMT 16.x
  • DC-IN 8-48V Wide Voltage
