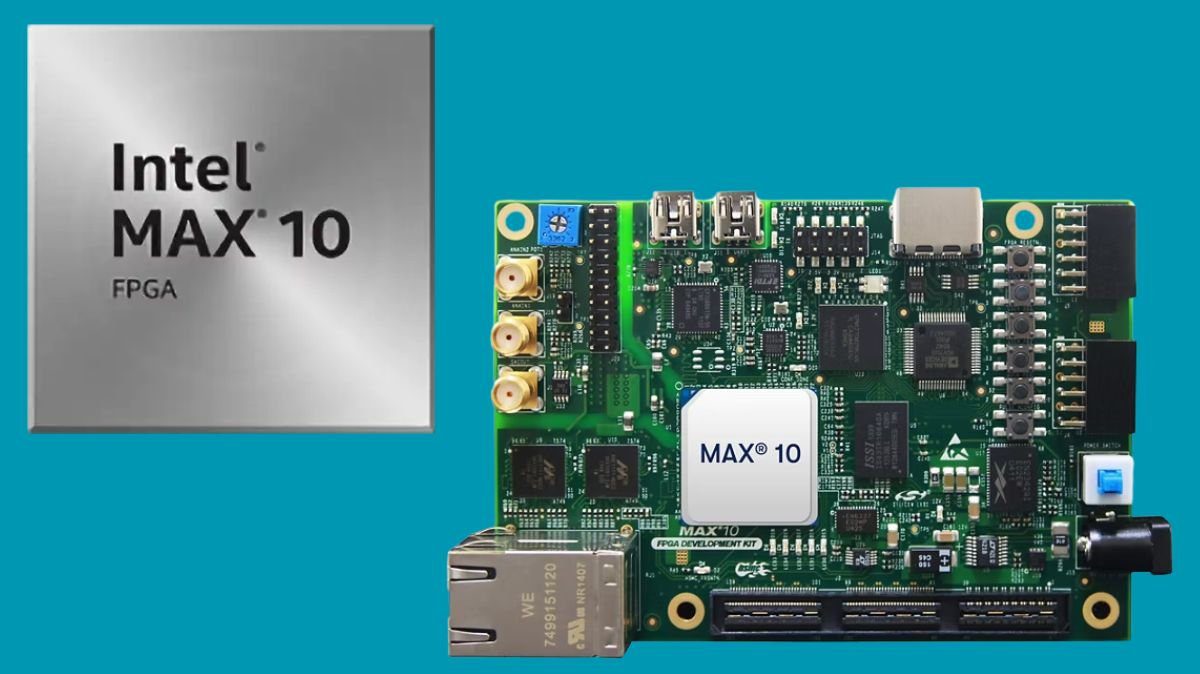

FPGA MAX 10
By providing sophisticated processing capabilities in a single programmable logic device with a compact form footprint for low power and cost-sensitive applications, the MAX 10 FPGA transforms non-volatile integration.
FPGAs with a small form factor and low power for applications that are cost-sensitive.
Advantages
Low Static Power
The low static power architecture on a power-optimized, 55nm flash-enabled manufacturing technology is how the MAX 10 FPGA core fabric architecture provides low static power.
Flexibility and Integration
Digital signal processing (DSP), DDR3 external memory interface, non-volatile flash memory, programmable logic devices (PLD), random access memory (RAM), analog-to-digital converters (ADC), phase-locked loops (PLLs), and multiple I/O standards are all integrated into a single device in compact 3mm x 3mm packages.
Easy and Quick Configuration
Device configuration takes less than 10 ms because to the secure on-die flash memory.
Use Cases and Applications
Board Management Applications
Utilise MAX 10 FPGAs with power management integrated circuits to push the limits of power and performance. These devices support thermal management with an integrated on-chip temperature sensing diode and provide power management IC (PMIC) solutions.
The Top 7 Arguments for Using a MAX 10 FPGA in Place of Your Microcontroller
Manage the risk of processor obsolescence, differentiate your goods, and adhere to time-to-market deadlines. For today’s embedded designers, the novel architecture of MAX 10 FPGAs offers an unrivalled alternative.
Lowering the Total Cost of Ownership (TCO) in Industrial Applications
Discover how MAX 10 FPGAs provide product success and profitability by reducing TCO as determined by development, enhancement, replacement, and maintenance expenses across the system’s lifespan.
How to Design for Increasing Power Constraints
Discover how system designs can overcome power constraints with the aid of MAX 10 FPGAs.
Important Features
Low Power
Longer battery life is provided by devices that can be restarted from a complete power-off in less than 10 ms and resumed in less than 1 ms in sleep mode, which reduces standby power.
Instant On
High-density FPGAs, ASICs, ASSPs, and processors are just a few of the components that can be controlled by MAX 10 FPGA, which can be the first functional device on a system board.
Interfaces for External Memory
Soft intellectual property (IP) memory controllers enable MAX 10 FPGA to support DDR3 SDRAM and LPDDR2 interfaces, making them ideal for embedded, datapath, and video applications.
10 advantages of building your own unique MAX 10 FPGA controller
A ubiquitous single-chip solution is the MAX 10 FPGA. Even if you don’t know what you want when you ship it, you can make a chip that can perform nearly whatever you want it to by just providing 3.3V. This is an FPGA that you may build with now and in the future because of its quality and dependability, which make it appropriate for automotive use, and its expected life cycle through 2040.
Instant-On
In order to simplify the board design and conserve board space, MAX 10 FPGAs feature inbuilt flash for instantaneous self-configuration.
Single Supply
This is appropriate for supervisory operations that must be operational before all other system voltage rails have been activated, in addition to saving the cost and board space of additional regulators.
Soft Processors
With Nios V processors and Platform Designer software, you may design your own unique controller based on a RISC-V SoC.
Extra Storage
With the dual image capability that MAX 10 FPGAs offer, you can store a golden image for dependable updates. As an alternative, you can store processor program code or rare data logging on the additional flash.
Integrated Analog
The real world is analogue, but FPGAs are digital. Analogue sensors or power supply monitoring are excellent uses for the integrated analog-to-digital converter.
Flexibility in Frequency
The integrated PLLs allow you to drive those clocks out to other devices in your system and utilise nearly any reference frequency for the internal logic.
Number Crunching
You can use the provided multipliers to construct a variety of DSP operations, such as color-space converters, digital filters, and AI accelerators for TinyML.
Flexible I/O
Only single-ended signals at the same voltage level are supported by the majority of microcontrollers. With several banks that can interface at various voltages without the need for level shifters, MAX 10 FPGAs support a broad range of single-ended and differential I/O standards.
Options for Packages
MAX 10 FPGAs come in a variety of formats, ranging from small 3×3 mm2 chip-scale packages to BGAs with 500 I/O. If you would rather have a package with pins, you can still obtain devices in Quad-Flat Packs (QFP).
Free Tools
The best part is that Quartus Prime Lite, a free program, is compatible with MAX 10 FPGAs. Best-in-class design automation and smooth IP integration, including the Nios V RISC-V CPU and tools, are provided to developers by the Quartus FPGA software.
MAX 10 FPGA price
But to give you a ballpark, here are some Digi-Key Electronics MAX 10 FPGA pricing examples:
- A smaller MAX 10 FPGA with 8,000 logic pieces is the 10M08SAU169C8G. When bought in a tray, it costs about ₹1,884.14 (about $23 USD) per unit.
- A bigger MAX 10 FPGA with 50,000 logic elements is the 10M50DCF484I7G. When bought in a tray, it costs about ₹4,487.77 (about $55 USD) per unit.
- The EK-10M08E144 is a 10M08 MAX 10 FPGA evaluation kit.
- Each kit costs roughly ₹4,395.46 (about $54 USD).
