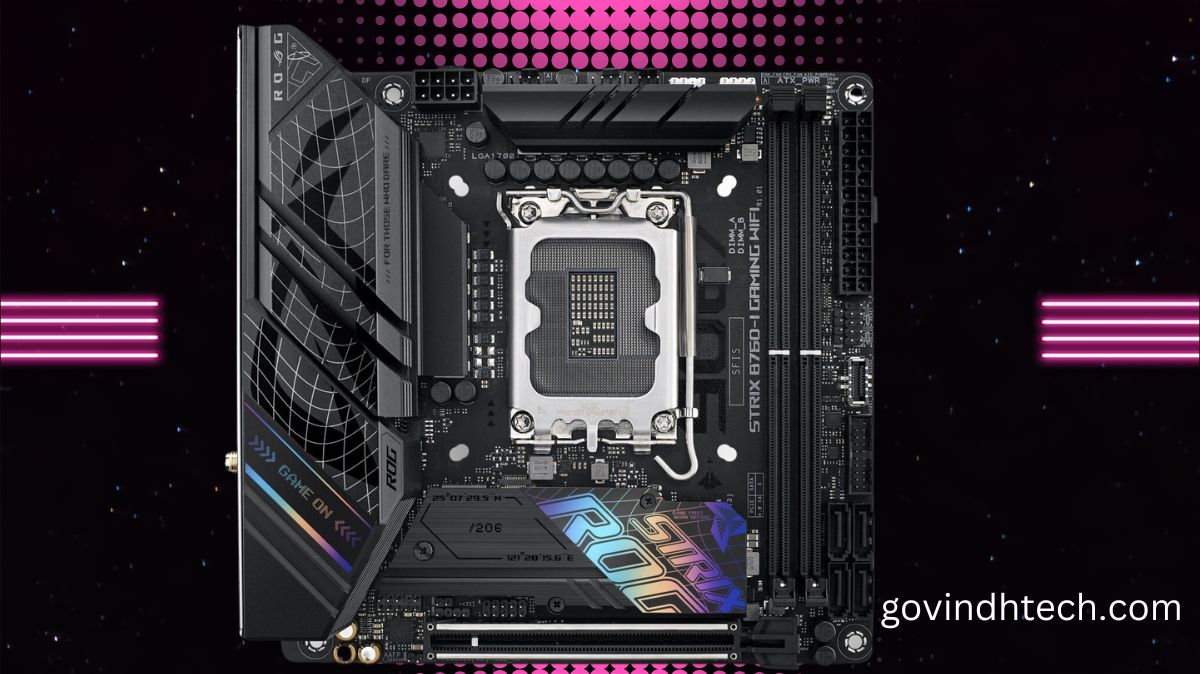

ASUS ROG STRIX B760-I Gaming WIFI

With the ROG Strix B760-I gaming WIFI, a formidable base for your next SFF build, you can let your rig go wild. With its lightning-fast DDR5 memory, future-ready PCIe 5.0 slot, low-latency Wi-Fi 6E networking, and strong VRM and cooling solution, it sets you up for ferocious performance and offers amazing 13th Gen support.

ROG STRIX B760-I Gaming WIFI

M.2 Q-LATCH

It’s simple to insert or remove an SSD from an M.2 slot thanks to the novel Q-Latch. Instead of using a conventional screw to secure the drive, the design uses a simple locking mechanism.

- Advertisement -

Q-LED

For speedy diagnostics, four onboard LEDs show the power status and pinpoint issues with the CPU, RAM, graphics card, or boot device.

READY-MADE I/O SHIELD

Pre-mounted and polished in a sleek matte black, the proprietary ROG I/O shield makes mounting the motherboard even easier.

Total performance

The ASUS ROG STRIX B760-I Gaming WIFI packs a punch, including an octet of power stages paired with a sizable cooling array to provide all the ferocity of Raptor Lake. The memory slots can support dizzying DDR5 rates, and the PCIe 5.0 slot is ready for the strongest graphics card you can put into your chassis to pack on the FPS.

ASUS ROG STRIX B760 I Gaming WIFI DESIGN POWER

Powerful design enough current is provided by 8 + 1 power stages, each rated at 80A, to easily power the most powerful Intel 13th Gen CPUs through any task.

Duty capacitors and alloy chokes superior chokes and robust capacitors are designed to withstand high temperatures, allowing for performance that beyond industry norms.

- Advertisement -

PCB with eight layers to increase overall system stability, a printed circuit board design with several layers swiftly dissipates heat surrounding the voltage regulators.

ASUS ROG STRIX B760-I Gaming WIFI DDR5

The DDR5 is not an exception in ROG’s long history of exhibiting the quickest memory performance. Now that enthusiast-grade kits have been pushed far beyond 7 GT/s on the ASUS ROG STRIX B760-I Gaming WIFI, it’s possible to achieve even higher speeds with future DIMMs thanks to enhanced signal routing. Expert users may put their skills to the test by adjusting the vast range of tuning options available in the UEFI.

AEMP II

A unique hardware and firmware approach for overclocking generic memory modules is ASUS Enhanced Memory Profile (AEMP). The second edition of AEMP makes use of the PCB trace optimisations of the ASUS ROG STRIX B760-I Gaming WIFI to push frequencies higher than ever before and enables automated tuning of kits during system startup. In a quad-DIMM configuration, AEMP II can even overclock mixed kits, and the extensive library of compatibility now encompasses almost all DDR5 modules that do not have XMP support.

ASUS ROG STRIX B760-I Gaming WIFI

AIR COOLING

Heatsink array VRM two substantial heatsinks with well-placed airflow channels to enhance heat dissipation are positioned above the power solution to support the high-end Intel 13th Gen CPUs.

M.2 Heatsink the front NVMe SSD slot is covered by a large heatsink that helps maintain your drive at ideal temperatures for dependability and continuous performance.

M.2 Backplate underneath the slot is extra bulk to handle the heat load of high-end M.2 SSDs.

Processor fan header CPU coolers can easily access a PWM/DC fan header, which is positioned close to the top of the motherboard.

AIO pump fan header self-contained water-cooling installations are connected via a specialised PWM/DC header.

4-PIN fan header a chassis fan header on the ASUS ROG STRIX B760-I Gaming WIFI can automatically identify any PWM or DC fan that is attached to it.

RUNNING AN INTERACTIVE

High-bandwidth USB ports and sophisticated networking adapters let the ROG Strix B760-I WiFi to handle massive traffic, which lets you play games without interruption and provides immersive on-board audio.

PCIE OPERATIONS

With its amazing PCIe 5.0 bandwidth and SafeSlot retention bracket to handle the majority of the newest graphics cards, the x16 expansion slot is future-ready. Fast storage is provided by the two PCIe 4.0 M modules. Two spaces are located to save space: one underneath the front-side heatsink and the other on the rear.

ASUS ROG SRTIX B760 I gaming WIFI networking

ASUS ROG STRIX B760 I gaming WIFI 6E

Utilising recently released 6 GHz spectrum, onboard Wi-Fi 6E technology offers up to seven 160 MHz channels for faster throughput and improved performance in crowded wireless scenarios.

The availability and functionalities of Wi-Fi 6E are contingent upon legal restrictions and its coexistence with 5 GHz Wi-Fi.

Ethernet 2.5 GHz Intel

The many benefits of onboard Intel 2.5 Gbps Ethernet include high-resolution video streaming, quick file transfers, and low-latency gaming.

USB

Many fast USB options are included with the Strix B760-I. There are five USB 3.2-compliant back I/O ports; the quickest is a USB 3.2 Gen 2×2 Type-C connector that supports data transfers of up to 20 Gbps. It is also possible to apply turbo treatment to a chassis port using the USB Gen 3.2 Gen 2 front-panel connection.

AUDIO SUREMEFX

Superior audio is produced by a special fusion of software and hardware called ROG SupremeFX. The S1220A codec is included in the ROG STRIX B760-I Gaming WIFI implementation to enable high-resolution playback up to 32-bit/192 kHz on all channels. The inbuilt Savitech amplifier streams the front-panel output to a range of speakers and headsets with high-fidelity acoustics.

ROG STRIX B760 I Gaming WIFI ACT STYLISHLY

The Strix B760-I’s black shrouds and PCB go well with the majority of goods from the varied ROG ecosystem, adding a pop of polychromatic contrast to your build and giving it a unique look.

ID DESIGN

Clearly a ROG strix the ROG Strix B760-I maintains a low profile in small setups with a vertically mounted graphics card, since only the top of a wavy grid decal is likely to show through. However, if the construction is a little bit larger, two large pastel insignias provide some vibrant flare to the otherwise subtle fascia.

COMPATIBILITY OF COOLER

Since the ROG Strix B760-I shares the same LGA 1700 socket as the Z690 and B660 models, it is compatible with a wide range of current cooling, including all ASUS and ROG AIO options.

ECOSYSTEM

Awaiting is the ROG STRIX ecosystem upgrade your experience with ROG Strix. Take advantage of complementary controls, compatibility, and looks across AIO coolers, cases, peripherals, and much more. Compared to other brands, ROG provides the most options.

ASUS ROG STRIX B760-I GAMING WIFI Specs

FeatureSpecification
SocketLGA 1700
Supported Processors13th Gen and 12th Gen Intel Core, Pentium Gold, Celeron
ChipsetIntel B760
MemoryDDR5 up to 7600 MT/s
Expansion Slots1 x PCIe 5.0 x16, 1 x PCIe 4.0 x1
Storage2 x PCIe 4.0 M.2 slots
NetworkingWiFi 6E, 2.5G Ethernet
USBUSB 3.2 Gen 2×2 Type-C, multiple USB 3.2 Gen 1 and Gen 2 ports
AudioSupremeFX S122A Codec
RGB LightingAura Sync RGB support
Power Supply8 + 1 power stages
