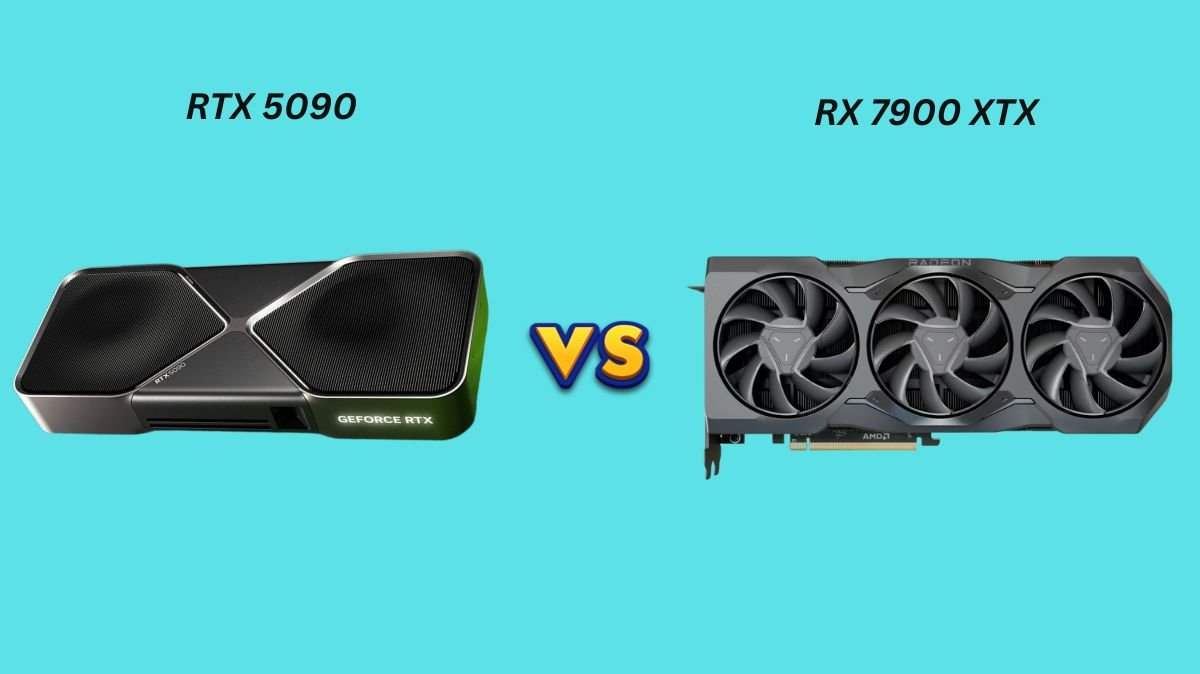

NVIDIA GeForce RTX 5090 vs RX 7900 XTX
Architecture
AMD Radeon RX 7900 XTX
- Constructed using AMD’s RDNA 3 architecture.
- Combines a 6nm Memory Cache Die (MCD) with a 5nm Graphics Compute Die (GCD) in a chiplet architecture.
- This design is the first GPU architecture to use it, increasing scalability and manufacturing efficiency.
- Allows DisplayPort 2.1, in contrast to the majority of NVIDIA GPUs.
NVIDIA GeForce RTX 5090
- According to the Blackwell architecture of NVIDIA.
- Manufactured with the specialized 4N manufacturing node (4nm-class) from TSMC.
- Emphasises ray tracing, AI acceleration, and rendering at extremely high resolution.
- Enhanced GPU utilization using two execution streams and sophisticated scheduling.
Gaming Performance
AMD Radeon RX 7900 XTX
- In the majority of 4K games, it closely rivals the RTX 4080 with its outstanding rasterization performance.
- Works effectively in contemporary games without ray tracing.
- Games that extensively rely on ray-traced effects will find it less suitable because of its lag in ray tracing performance compared to NVIDIA.
NVIDIA GeForce RTX 5090
- Provides outstanding 4K and 8K gaming performance.
- Even in situations requiring a lot of graphics, DLSS 4 dramatically increases frame rates.
- Excels at ray-traced titles with improved reflections, shadows, and lighting.
- Games such as Hogwarts Legacy and Cyberpunk 2077 exhibit up to a twofold boost in performance compared to the preceding generation.
You can also read NVIDIA GeForce GTX 1080 Ti Vs RTX 4070 Specs And Price
Features
AMD Radeon RX 7900 XTX
- FidelityFX Super Resolution (FSR) and Smart Access Memory from AMD are supported.
- Higher 4K and 8K refresh rates are possible with DisplayPort 2.1.
- There are 192 AI accelerators and 96 ray accelerators.
- AV1 is supported for both encoding and decoding by Advanced Media Engine.
NVIDIA GeForce RTX 5090
- AI frame interpolation and multi-frame generation are supported for DLSS 4.
- For AI and ray-tracing operations, there are 170 RT cores and 680 Tensor cores.
- Native AV1 encode/decode support.
- Path tracing and RTX Remix are used for customising and creating dramatic images.
AI and Ray Tracing
AMD Radeon RX 7900 XTX
- Lacks the strength and support of NVIDIA’s Tensor cores, but it does include AI accelerators.
- Compared to their RTX equivalents, ray tracing performance is there but less effective.
- No comparable DLSS technology to NVIDIA’s.
NVIDIA GeForce RTX 5090
- Dominates AI tasks with more powerful Tensor cores.
- Massive improvements to the RT core enable real-time route tracing.
- Better quality and frame rates are provided simultaneously by AI-driven features like DLSS 4.
You can also read AMD Radeon RX 6800 XT graphics cards Pricing and Specs
Memory and Bandwidth
AMD Radeon RX 7900 XTX
- 24-gigabyte GDDR6 RAM.
- 384-bit interface for memory.
- Bandwidth of memory: 960 GB/s.
- Supported by a 96 MB Infinity Cache.
NVIDIA GeForce RTX 5090
- 32GB of RAM using GDDR7.
- Memory interface of 512 bits.
- 1792 GB/s is the bandwidth of memory.
- Higher throughput is achieved using the 98MB L2 cache.
Power and Efficiency
AMD Radeon RX 7900 XTX
- TDP: 355W
- Cooler and more power-efficient than NVIDIA’s top-tier cards.
- May be powered by a top-tier 850W PSU.
NVIDIA GeForce RTX 5090
- TDP: 575W
- Demands substantial power delivery and expensive cooling systems.
- Although performance per watt is better than the RTX 4090, AMD still uses more power.
You can also read AMD Radeon RX 7900 XTX Price, Features And Specifications
Advantages
AMD Radeon RX 7900 XTX
- Reduce the amount of power used.
- 4K rasterisation performance that is competitive.
- Cheaper when it first launches.
- Compact triple-fan designs are more adaptable.
- Support for next-generation displays via DisplayPort 2.1.
NVIDIA GeForce RTX 5090
- Exceptional 4K/8K gaming capabilities.
- AI and ray tracing features that are best in class.
- A 32GB GDDR7 memory capacity provides future-proofing.
- Frame generation and DLSS 4 increase fps.
- Improved developer ecosystem and modding.
Disadvantages
AMD Radeon RX 7900 XTX
- Ray tracing performance is not as good as NVIDIA’s.
- FSR 2.x is still inferior than DLSS 4.
- Less suitable for jobs using AI.
- Could have trouble playing 8K games.
NVIDIA GeForce RTX 5090
- Extremely high (575W) power usage.
- Larger physical footprint and increased heat production.
- A lot more costly (about $1999 at launch).
- Overkill for a lot of players that don’t require AI or 8K processes.
You can also read NVIDIA GeForce RTX 50 Series GPUs For Adobe Premiere Pro
Price
| Graphics Card | Launch Price (USD) | Current Estimated Price (USD) | Availability |
|---|---|---|---|
| AMD Radeon RX 7900 XTX | $999 | $850–$999 | Widely Available |
| NVIDIA GeForce RTX 5090 | ~$1,999 (expected) | ~$1,999–$2,299 (early market) | Limited / Early Adopters |
AMD Radeon RX 7900 XTX and NVIDIA GeForce RTX 5090 Specifications
| Specification | AMD Radeon RX 7900 XTX | NVIDIA GeForce RTX 5090 |
|---|---|---|
| Architecture | RDNA 3 | Blackwell |
| Process Node | 5nm (GCD) + 6nm (MCD) | TSMC 4N (Custom 4nm) |
| CUDA / Stream Processors | 6,144 Stream Processors | 24,576 CUDA Cores (estimated) |
| Ray Tracing Cores | 96 Ray Accelerators | 170+ RT Cores |
| AI / Tensor Cores | 192 AI Accelerators | 680+ Tensor Cores |
| Base Clock | 1.9 GHz (approx) | 2.0 GHz+ (estimated) |
| Boost Clock | Up to 2.5 GHz | Up to 2.8–3.0 GHz (estimated) |
| Memory Type | 24GB GDDR6 | 32GB GDDR7 |
| Memory Bus Width | 384-bit | 512-bit |
| Memory Bandwidth | 960 GB/s | 1792 GB/s |
| Infinity / L2 Cache | 96MB Infinity Cache | 98MB L2 Cache |
| DLSS / FSR Support | FSR 2.x / FSR 3 | DLSS 4 (with Frame Gen) |
| Ray Tracing Performance | Moderate | Exceptional |
| TDP (Power Draw) | 355W | 575W |
| Recommended PSU | 850W | 1000W+ |
| PCIe Interface | PCIe 4.0 | PCIe 5.0 |
| Display Outputs | DisplayPort 2.1, HDMI 2.1 | DisplayPort 1.4a, HDMI 2.1a |
| AV1 Encoding/Decoding | Yes | Yes |
| Launch Price | $999 | ~$1,999 (expected) |
| Target Resolution | 4K Gaming | 4K / 8K Gaming |
| Form Factor | Triple-fan, 2.5-slot | Quad-slot (estimated) |
Conclusion
Select the RX 7900 XTX if you’re a high-end gamer seeking rasterisation, good power efficiency, and 4K performance at a cheaper price.
If you’re a gamer looking for the greatest ray tracing, AI capabilities, and gaming performance without breaking the bank, go for the RTX 5090.
