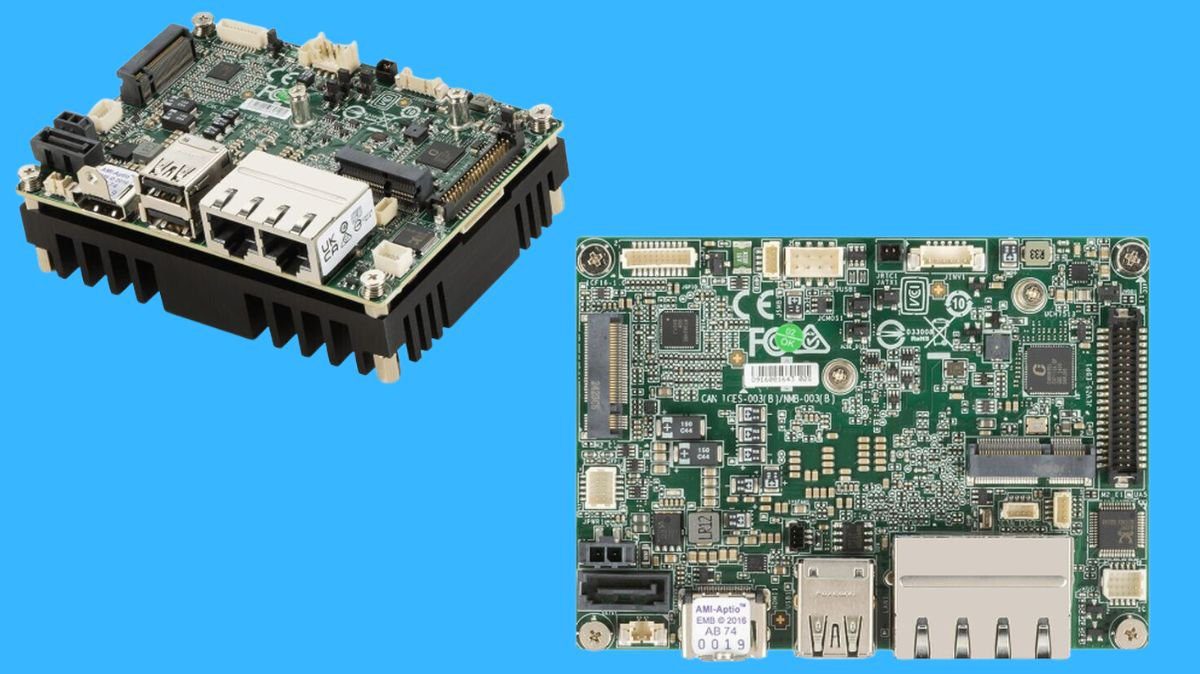

MSI Introduces the MS-CF16 Pico-ITX SBC, a Wide Temperature Range SBC for Severe Uses.
Intel Alder Lake-N/Amston Lake family CPUs, which provide up to 16GB of LPDDR5X memory for effective, high-performance computing, power the MS-CF16 Pico-ITX SBC. It has two M.2 slots for flexible connection, USB 10Gbps/5Gbps, 2.5 GbE/1GbE, and many I/O choices, including support for two separate displays via HDMI and LVDS/eDP interfaces. The board’s very small 2.5″ Pico-ITX form size makes it simple to integrate into situations with limited space.
MS-CF16 Pico-ITX Features
Packed with cutting-edge features appropriate for severe environment and industrial applications, the MS-CF16 Pico-ITX includes:
Compact Pico-ITX Form format
The MS-CF16 provides powerful computing in a compact, space-efficient design with to its 2.5″ Pico-ITX form format (101mm x 73mm). It combines excellent performance with a wide range of connection choices, making it perfect for portable devices or embedded systems. Industrial robots and kiosks may use this compact form size without sacrificing functionality or expandability.
Broad Operating Temperature
The MS-CF16 can tolerate tough situations from -40°C to 85°C. For exterior installations and industrial devices, this wide range offers durability and reliable performance in extreme conditions from freezing to high heat.
Rich Connectivity Options
The MS-CF16 facilitates flexible device integration and extension with a variety of I/O interfaces, including USB 10Gbps/5Gbps, HDMI, and COM connections. It makes connectivity with industrial machines, dual independent displays, and quick data transfers possible. It may be expanded for wireless modules or storage with to the M.2 slots, which makes it suitable for a range of sectors.
Fanless Design for Low Power Operation
The MS-CF16’s fanless, low-power design improves durability and energy economy. It lessens wear and tear by doing away with mechanical cooling, which makes it appropriate for dusty or debris-filled situations. Additionally, the fanless design allows for quiet operation, which makes it ideal for applications that are sensitive to noise and medical equipment.
Twin Independent Display Support
The MS-CF16 has twin independent displays that enable users to operate two screens at once with to its HDMI and LVDS/eDP connectors. This improves user experience and efficiency without the need for extra hardware in applications like digital signs, control rooms, or monitoring systems where crisp, real-time data presentation is crucial.
MS-CF16 Pico-ITX Applications
The MS-CF16 Pico-ITX board is intended for a range of embedded and industrial uses, such as:
Industrial Automation
The MS-CF16 is perfect for industrial automation due to its sturdy design and broad working temperature. It can withstand the demands of robotics, machine control systems, and industrial settings. It provides dependable operation under harsh circumstances, guaranteeing steady performance for applications needing round-the-clock uptime in demanding production settings.
Edge Computing for the Internet of Things
The MS-CF16 is a good fit for edge computing devices and Internet of Things gateways because of its strong processing capabilities and flexible connections. In smart city and industrial IoT configurations, it facilitates local data processing, lowering latency, increasing productivity, and enabling real-time decision-making in dispersed and distant areas.
Medical Equipment
The MS-CF16 is perfect for medical applications because of its small size, low power consumption, and fanless design. It integrates easily into embedded or portable medical diagnostic instruments, providing dependable performance in crucial healthcare settings where silent operation, energy efficiency, and space are crucial.
Digital Signage Outside
The MS-CF16’s robust construction and broad working temperature range make it ideal for outdoor digital signs, kiosks, and other systems that interact with the public. It is a reliable option for interactive kiosks or public information displays since it guarantees seamless functioning in inclement weather, from very cold to extremely hot temperatures.
The MSI MS-CF16 is a crucial tool for companies wishing to deploy dependable, high-performance computing solutions in demanding settings because of its characteristics and application areas.
MS-CF16 Pico-ITX Specs
| Specification Category | Details |
|---|---|
| Form Factor | Pico-ITX, compact design |
| Processor Support | Compatible with ARM and x86 processors |
| Chipset | Varies based on model configuration |
| Memory | Up to 8GB DDR4, SODIMM slot |
| Storage | 1x mSATA slot, supports up to 512GB SSD |
| Graphics | Integrated GPU support (dependent on CPU) |
| Display Interface | 1x HDMI 1.4, max resolution 1920×1080 |
| Audio Interface | Integrated audio codec, stereo output |
| USB Ports | 2x USB 3.0, 2x USB 2.0 |
| Ethernet | 1x Gigabit Ethernet port |
| Expansion Slot | 1x Mini PCIe slot |
| GPIO | 8x programmable GPIO pins |
| Operating System | Supports Linux and Windows IoT |
| Power Supply | 12V DC input, power consumption varies |
| Operating Temperature | -20°C to 60°C (standard); extended range available |
| Dimensions | 100mm x 72mm |
| Additional Features | Watchdog timer, power management options |
