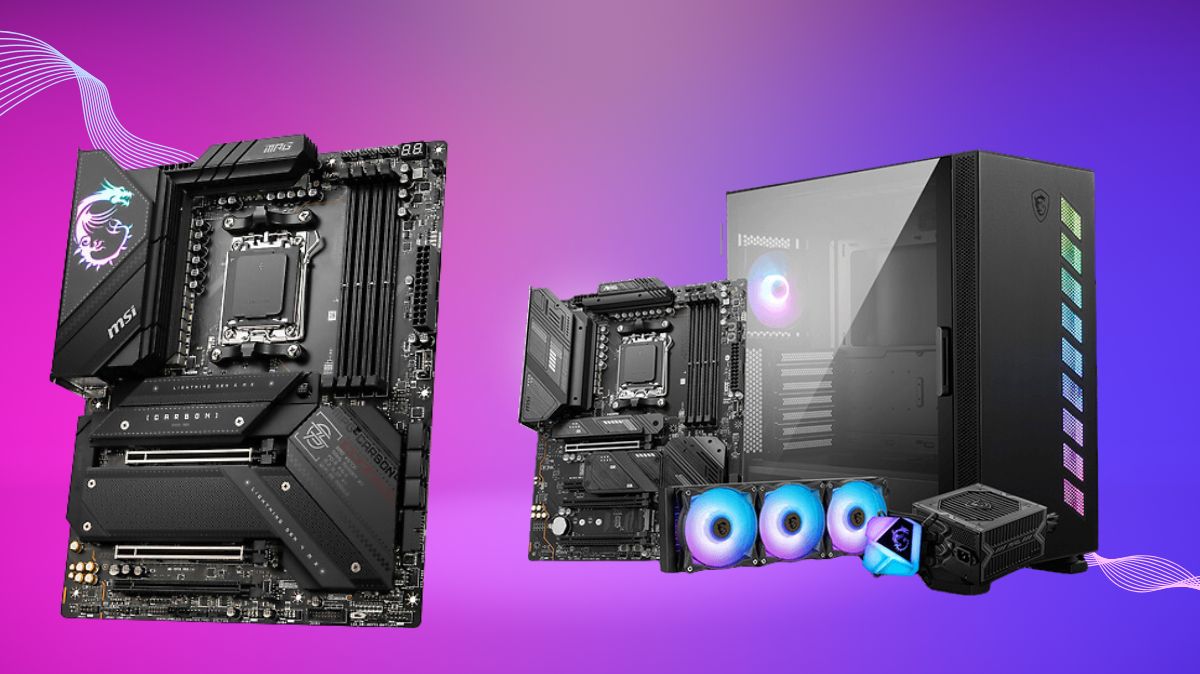

MSI 600 Series Motherboard
DDR5
The newest DDR5 memory is available on MSI motherboards, MEG X670E GODLIKE which also have specially designed layouts for unleashing maximum performance. MSI’s proprietary Memory Boost technology allows for consistently impressive performance. With MSI Centre, you can achieve better performance if you’re an unrestricted over clocker.
AM5
The desktop AMD Ryzen 8000 & 7000 Series processors, built on 5nm architecture, offer remarkable increases in speed and connectivity. The Ryzen 8000 & 7000 Series offers excellent expandability and supports PCIe 5.0 and the newest DDR5 memory. MSI is going to make the most out of this new platform.
MSI X670 Motherboards
Double the transfer throughput of the previous generation up to 128GB/s of transfer bandwidth is provided by the most recent PCIe 5.0. Get ready for the next generation of gadgets.
Direct Touch Heat-Pipes, which connect two MOS heatsinks to increase the surface area of the heatsinks and disperse heat produced by the capacitors to preserve performance, are a feature of MSI X670 motherboards.
The ideal configuration for AM5
It is revealed that the MEG series is a legend that embodies the pinnacle of gaming elegance. The flagship models strive to be the best gaming goods available, pushing the boundaries of what an extreme gaming series can be.
Motherboards MSI X670 / B650 / A620
MSI MEG GODLIKE X670E
The MEG X670E GODLIKE has a massive, black heatsink with a dark mirror and a time-carved design in pale gold illumination. These elements signify perfection in its most basic form and reflect eternal form and function. The MEG X670E GODLIKE, equipped with the newest technology, high-speed gearbox, ultra-performance, and the industry’s first M-Vision Dashboard, is designed to fully utilise the AMD X670 chipset’s incredible gaming capability and is prepared to take the competition by storm.
CURRENT DDR5 RAM
With the newest DDR5 memory, take a significant step towards improving DDR performance. With the combination of MSI memory boost technology and the dedicated SMT welding process, the MEG X670E GODLIKE is prepared to provide exceptional memory performance.
GEN 5 LIGHTNING
The unidirectional transfer bandwidth of an x16 interface can reach 128GB/s using the newest and fastest PCI-e data transfer technology, which doubles over its previous iteration. Thanks to server grade PCB and Steel Armour design optimisation, you may experience next-generation gadgets without sacrificing performance.
EXTREME POWER & THERMAL SOLUTION
Godlike efficiency and cooling are largely attributed to the heat dissipation module. Gamers don’t need to worry about temperature issues because to the flagship and distinctive cooling solution.
Without compromising on quality, the premium power solution, excellent layout design, cutting-edge PCB material, and improved tuning parameters deliver exceptional performance and enduring system stability.
Lightning-quick archiving
Four M.2 ports on board provide the best storage performance possible with a single Lightning Gen 5 solution.
The revolutionary screwless M.2 design offers the simplest method of M.2 installation, enabling you to set your M.2 and Shield Frozr without the bothersome screws.
True “wire-less” RGB functionality is made possible by the revolutionary magnetic M.2 Shield Frozr design, which also improves installation efficiency and optimises storage performance.
With two additional PCI-e 5.0 M.2 slots and a clever fan cooling solution, the exclusive PCI-Express card increases storage capacity at maximum speed. It also has an auto detect function for M.2 access and M.2 temperature for convenient checking.
Six times M, maximum Two connectors provide for the highest possible storage performance.
MSI Pro X670-P WiFi
With no lag, the fastest online experience is provided by the onboard 2.5G LAN and 10G Super LAN.
With speeds up to 2400Mbps, the most recent P Wi-Fi 6E solution offers MU-MIMO, BSS colour technology, and the 6GHz band.
M-VISION DASHBOARD
In addition to providing a hardware the monitor and debug function for your gaming setup, the touch-enabled 4.5-inch full-color IPS LCD also lets you customise and operate your system.
Function of the System
System Adjustment Turn Off and On Again
System Details
Hardware Status Detection, CPU Overheat Warning, Flash BIOS State
Instruments
Live weather, system clock, media controller, countdown timer, and hot key customisation
A SINGLE BOARD TO MANAGE THEM ALL
Greater exclusivity in design
- Backplate made of aluminium
- Most recent DDR5 memory
- IO Shield already installed
- Server Grade with Ten Layers and a Two-Oz Copper PCB
- 20G Type-C front USB with 60W PD
- Intelligent Button
- Boost 5 HD Audio
- MSI Centre
MEG X670E GODLIKE SUITABLE CASES
- GODLIKE MEG X670E
- AMD Ryzen 8000 and 7000 Series Desktop Processors are supported.
- Supports Dual Channel DDR5 8000+MHz (OC) DDR5 Memory
- M-Vision Dashboard: This 4.5-inch full-color, touchable IPS LCD not only shows the current state of your gaming setup by combining a hardware monitor and debug function, but it also provides touch control for system customisation and operation.
- Extreme Power Design: Equipped with twin CPU power connectors, a 105A Smart Power Stage, and 24+2+1 phases of power, this power design is poised to unleash peak performance.
- Premium Thermal Module: Double-Sided M.2 Shield Frozr and Frozr AI software, Wavy fin design, Direct Touch Cross Heat-pipe, MOSFET Baseplate, 7W/mK thermal pads, and MOSFET Baseplate guarantee optimal performance at low temperatures.
- The onboard and unique M.2 XPANDER-Z GEN5 DUAL PCI-Express card has a full sextuple of M.2 ports for optimal storage performance. Because of the double-sided Shield Frozr architecture, M.2 SSDs are protected from throttling and can operate at a higher speed.
- Newest Network Solution: The fastest online experience is provided without latency by the latest Wi-Fi 6E solution, Intel 2.5G LAN, and onboard 10G Super LAN.
- The Lightning Fast gaming experience is enhanced by PCIe 5.0 slots, front USB 3.2 Gen 2×2 20G with 60W USB Power Delivery, and Lightning Gen 5 x4 M.2.
- EZ M.2 Clips, Smart Button, Pre-installed I/O Shield, Steel Armour, Patented Magnetic M.2 Shield Frozr, Screwless M.2 Shield Frozr, and DIY-friendly design
- 10 Layer PCB with 2 oz Thickened Copper: Offers un compromised long-term system stability and improved performance.
- With the most recent high-end ALC4082 audio processor, which combines an ESS audio DAC and amplifier to produce an amazing experience, Audio Boost 5 HD is the ultimate audio solution.
THE LEGEND’S REVELATION
It is revealed that the MEG series is a legend that embodies the pinnacle of gaming elegance. The flagship models strive to be the best gaming goods available, pushing the boundaries of what an extreme gaming series can be.
Design of Stacked Fin Array
The highest surface area for heat dissipation is provided by the stacked fin array design, which increases heat dissipation by up to 50%.
Heat-pipe with Direct Touch
To increase the heat dissipation surface, connect two MOS heatsinks.
M.2 Shield Frozr with two sides
By reducing throttling and maintaining the safety of M.2 SSDs, double-sided M.2 thermal solution allows them to operate quicker and cooler.
MOSFET Baseplate
These solid metal-designed backplates lower the MOSFET temperature.
7W/mK Warming Pad
All cores operate at peak efficiency thanks to additional choke thermal pads and premium 7W/mK MOSFET thermal pads.
Greater PCH Heatsink Size
In order to retain high heat dissipation efficiency while reducing dust and noise, MSI replaced the PCH fan with an expanded heatsink design.
Steel armoured Lightning Gen 5 PCI-E
PCI-E Lighting Gen 5
An x16 interface can have double the bandwidth of the previous generation up to 128GB/s.
SMT PCIE 5.0 SLOT
The sophisticated SMT (Surface Mount Technology) PCIE slot completely supports the PCI-E 5.0 signal while reducing interference and electrical noise.
REMARKABLE STRONG SOLDERED LINKS
Use more solder points to secure to the motherboard and sustain the weight of bulky graphics cards.
ACE MEG X670E
- Supports AMD Ryzen 8000 and 7000 Desktop Processors.
- Supports Dual Channel DDR5 8000+MHz (OC) DDR5 Memory
- Extreme Power Design: Equipped with a 90A Power Stage, twin CPU power connectors, and a 22+2+1 phase power design, this system is ready to maximise performance.
- The unique onboard M.2 XPANDER-Z GEN5 DUAL PCI-Express card features a full sextuple M.2 ports for maximum storage performance. Because of the double-sided Shield Frozr architecture, M.2 SSDs are protected from throttling and can operate at a higher speed.
- Superb Cooling Solution: Double-sided M.2 Shield Frozr and Frozr AI software, stacked fin array, direct touch VRM heat-pipe, MOSFET baseplate, 7W/mK thermal pads, and frozen fin array assure high performance at low temperatures.
- 10G Super LAN using the most recent 6E Wi-Fi solution: The best online gaming experience is provided by the newest Wi-Fi 6E solution, which supports 6GHz spectrum and has an onboard 10Gbps LAN.
- Thunderstorm Quick gaming experience: Front USB 3.2 Gen 2×2 20G with 60W USB Power Delivery, PCIe 5.0 ports, Lightning Gen 5 x4 M.2.
- DIY-Friendly Style: Steel Armour, screwless M.2 shield fryers, EZ M.2 clips, smart buttons, pre-installed I/O shields, and patent magnetic M.2 shield fryers
- 8-layer PCB with 2 ounces of thickened copper: Offers uncompromised long-term system stability and improved performance.
- With the most recent high-end ALC4082 audio processor, which combines an ESS audio DAC and amplifier to produce an amazing experience, Audio Boost 5 HD is the ultimate audio solution.
