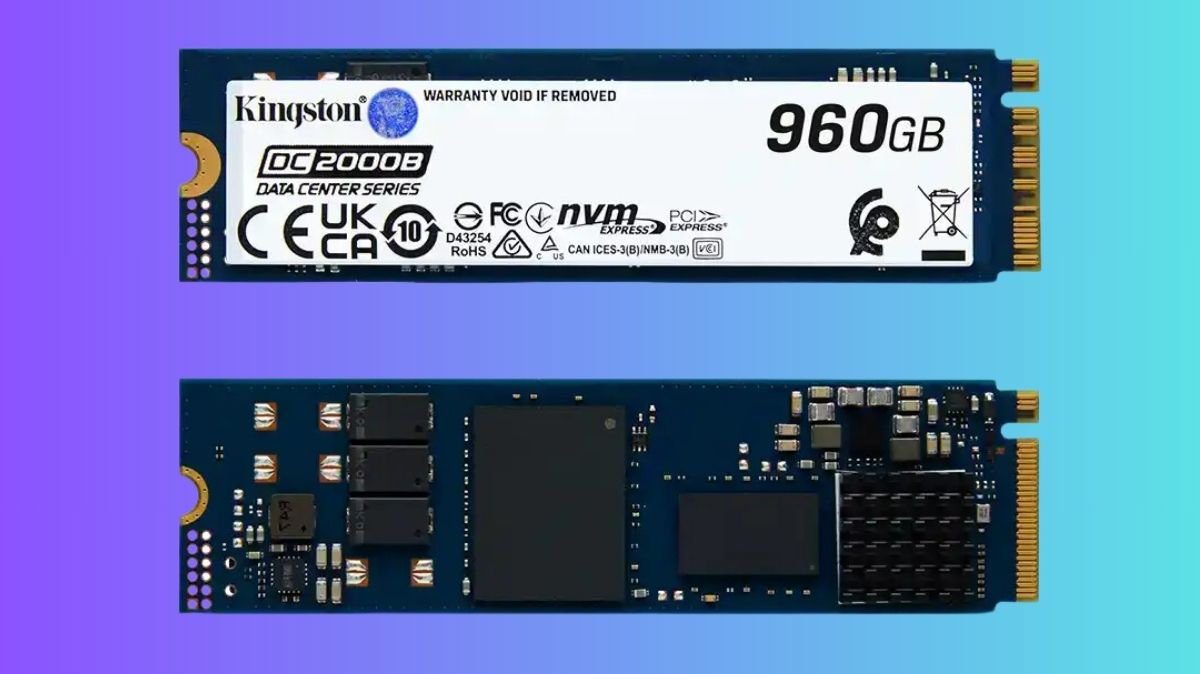

Kingston DC2000B PCIe 4.0 NVMe SSD For Data Centers

Kingston launches enterprise DC2000B NVMe SSD for data centers

The most recent data center SSD The Kingston DC2000B is a high-performance PCIe 4.0 NVMe M.2 SSD designed for internal boot drives in high-volume rack-mount systems. Kingston Digital Europe Co LLP, a flash memory subsidiary of Kingston Technology.

The DC2000B is ideal for internal server boot drive applications and purpose-built systems applications that require high performance and reliability due to its 112-layer 3D TLC NAND and the latest Gen 4×4 PCIe interface. On-board hardware-based power loss protection (PLP), a data security feature uncommon on M.2 SSDs, is a feature of the Kingston DC2000B. In order to provide broad thermal compatibility across a wide range of system designs, it also has a new integrated aluminum heatsink.

As stated by Kingston EMEA’s the SSD business manager, Tony Hollingsbee, “Whitebox server manufacturers and Tier 1 server OEMs continue to equip their latest generation servers with M.2 sockets for boot purposes as well as internal data caching.” The DC2000B was designed to deliver the write endurance and performance needed to handle a variety of high duty cycle server workloads.The crucial front loading drive bays for data storage are preserved when the boot drives are moved inside the server.

The Kingston DC2000B is supported by a limited five-year warranty, free technical support, and renowned Kingston dependability. It comes in 240GB, 480GB, and 960GB capacities.

PCIe 4.0 NVMe M.2 SSD DC2000B

Server applications in the enterprise class

The Kingston DC2000B is a high-performance PCIe 4.0 NVMe M.2 SSD with 112-layer 3D TLC NAND and the newest Gen 4×4 PCIe interface. Perfectly suited for usage in purpose-built systems that require a high-performance M.2 SSD with hardware-based on-board power loss protection (PLP) and high-volume rack-mount servers as an internal boot drive or drives to safeguard expensive front-loading drive bays. An integrated aluminum heatsink, which is new for the Kingston DC2000B, provides greater thermal compatibility for a variety of applications. Low latency and good IO consistency are provided by the DC2000B to manage a range of workloads, including high-speed application caching and boot drive applications. The Kingston DC2000B has a five-year guarantee and a write endurance rating of 0.4 DWPD.

Performance of PCIe 4.0 NVMe Gen 4×4

Security against power outages through the utilization of hardware

Consistency in latency and IOPS

Designed to meet the requirements of data centers

Consult an SSD Server Expert

Knowing the security objectives of your project is essential to planning the best course of action. Let Kingston’s professionals help you.

Important Features

NVMe performance on PCIe 4.0

makes use of PCIe Gen 4×4 lanes to achieve fast speeds.

Protection against on-board power loss (PLP)

Minimize the chance of data damage and/or loss from unplanned power outages.

Consistent IOPS and little latency

Firmware optimized to provide consistent IO and minimal latency for workloads with high duty cycles.

Made for conditions in data centers

Low latency and IO consistency were the primary design criteria, and the system was optimized to satisfy the requirements of server boot applications.

Kingston DC2000B Specs

Form factorM.2 2280
InterfacePCIe 4.0 x4 NVMe
Capacitie240GB, 480GB, 960GB
NAND3D TLC
Sequential read/write240GB – 4500/400 MBs
480GB – 7000/800 MBs
960GB – 7000/1300 MBs
Steady-state 4k read/write240GB – 260000/18000 IOPS
480GB – 530000/32000 IOPS
960GB – 540000/47000 IOPS
Total bytes written (TBW)240GB – 175 TBW
480GB – 350 TBW
960GB – 700 TBW
Latency read (avg)240GB-960GB: 70µs
Latency write (avg)240GB – 53µs
480GB – 29µs
960GB – 20µs
Power loss protection (power caps)Yes
Enterprise SMART toolsReliability tracking, usage statistics, SSD life remaining, wear levelling, temperature
Endurance240GB -(0.4 DWPD/5yrs)
480GB -(0.4 DWPD/5yrs)
960GB -(0.4 DWPD/5yrs)
Power consumption240GB: Average read: 2.97W Average write: 4.02W Max read: 3.01W Max write: 4.09W
480GB: Average read: 3.22W Average write: 5.60W Max read: 3.29W Max write: 5.77W
960GB: Average read: 3.26W Average write: 7.36W Max read: 3.36W Max write: 7.80W
Storage temperature-40°C ~ 85℃
Operating temperature0℃ ~ 70℃
Dimensions80mm x 22mm x 8.3mm
Weight240GB – 9g
480GB – 10g
960GB – 11g
Vibration non-operating20G peak (10-2,000Hz)
MTBF2 million hours
Warranty/supportLimited five-year warranty with free technical support
