How AMD OPP & MSI Memory Enhance Ryzen 9000 Gaming

- Advertisement -

AMD unveiled the AMD Optimised Performance Profile (OPP) function with the Ryzen 9000 series processors. This capability allows users to overclock DDR5-6000 CL30 memory to improve gaming and memory performance.

To optimise the performance of your memory, MSI Memory Try It! offers a range of memory frequency and timing combinations in addition to AMD OPP. When used in conjunction with the High-Efficiency Mode optimisation options, more performance improvements are possible.

- Advertisement -

AMD Optimised Performance Profile: 17% Game Performance Increase

Designed for Hynix-based RAM modules, AMD OPP offers a DDR5-6000 CL30-38-38-96 overclocking profile. For Ryzen 7000 and 9000 series processors, DDR5-6000 is the sweet spot, providing optimal performance.

They evaluated the Ryzen 7 9700X processor’s memory and gaming capabilities. AMD OPP lowers latency by roughly 19% when compared to the default DDR5-4800 and by roughly 5% when compared to DDR5-6000 EXPO. Gaming performance is 2~13% faster at 1080p resolution than with the DDR5-4800 default memory.

Ryzen 7 9700X processor's memory
Image credit to MSI

AMD OPP + MSI High-Efficiency Mode boosts gaming by 28%

In order to achieve even greater performance that AMD OPP provides, consider combining it with MSI’s High-Efficiency Mode. It offers memory options that are optimised to further improve performance.

With four presets available in High-Efficiency Mode Tightest, Tighter, Balance, and Relax users can select the most appropriate setting depending on how well their RAM overclocks.

- Advertisement -

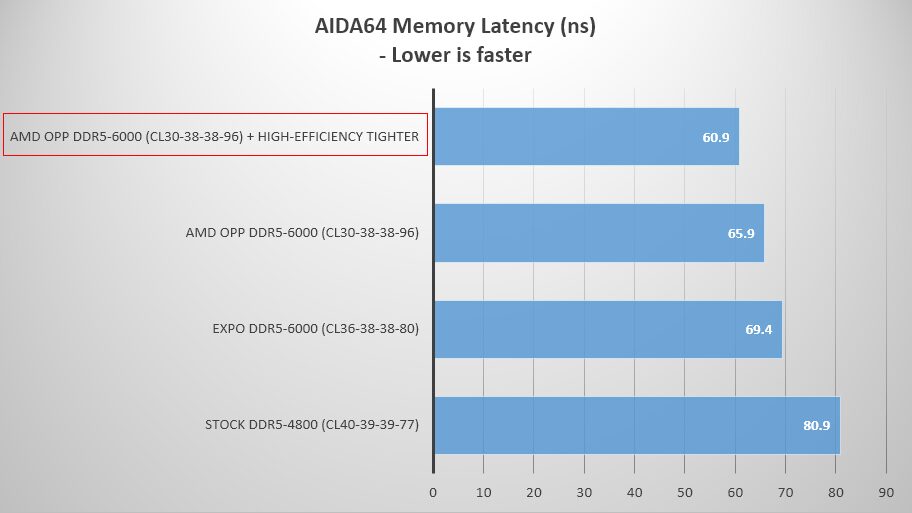

In comparison to AMD OPP alone, using AMD OPP plus the Tighter configuration in High-Efficiency Mode can cut latency by roughly 8% and improve 1080p gaming performance by about 2.8 percent.

AMD OPP + MSI High-Efficiency Mode boosts gaming
Image credit to MSI

MSI High-Efficiency Mode Faster AMD OPP, 6–21% Faster Gaming Performance

Experience MSI Memory Now! + High-Efficiency Mode: 3–10% Faster AMD OPP, 6–21% Faster Gaming Performance than Default

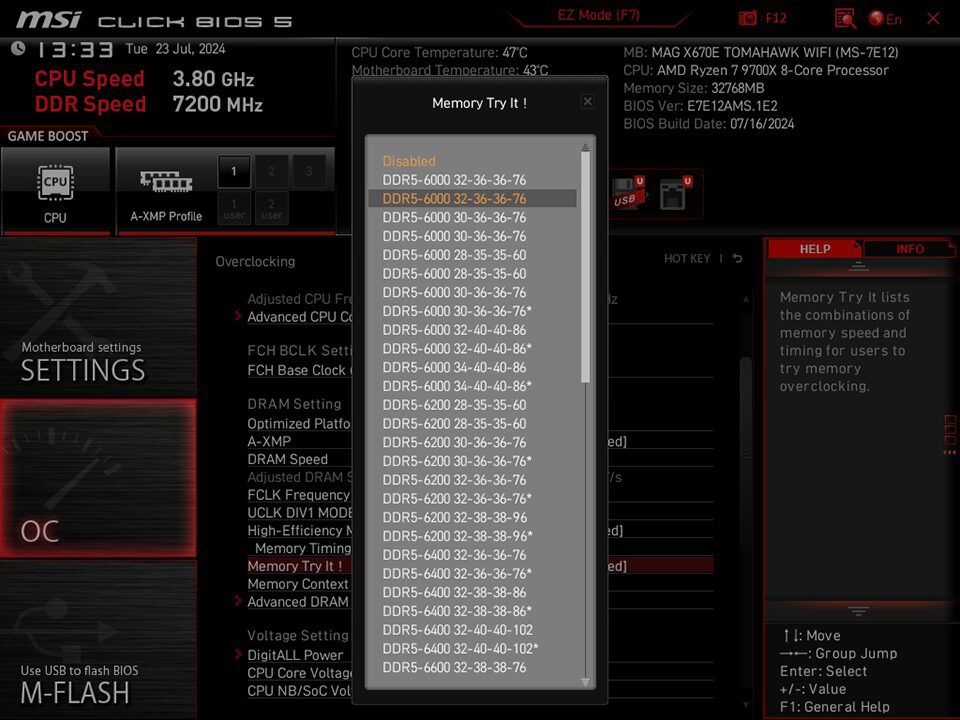

In order to assist consumers in finding the optimal settings for their memory, MSI Memory Try It! provides a variety of overclocking options for popular memory chips such as Hynix, Samsung, and Micron.

Memory Try It! in comparison to the AMD OPP DDR5-6000 CL30-38-38-96 configuration! provides finer timing combinations and a higher frequency for improved performance. When compared to AMD OPP, the DDR5-6000 CL28-35-35-60 option, for instance, lowers memory latency by almost 7%. When paired with the High-Efficiency Mode Tighter configuration, latency is lowered by roughly 10% in comparison to AMD OPP.

Regarding 1080p gaming performance, Memory’s DDR5-6000 CL28-35-35-60 setting Give it a go! When paired with the Tighter profile of High-Efficiency Mode, it outperforms AMD OPP by around 10%, DDR5-6000 EXPO by about 13%, and the normal DDR5-4800 by about 21%.

MSI High-Efficiency Mode Faster AMD OPP
Image credit to MSI

Configurations of the System

  • The AMD Ryzen 7 9700X processor
  • Motherboard: MASHAWK WIFI MSI MAG X670E
  • Memory: Kingston FURY Beast DDR5-6000 16GB x2, Galax HOF Pro D5-7200 16GB x 2
  • MSI GeForce RTX 4080 16GB SUPRIM X graphics card
  • MSI MAG CORELIQUID I360 CPU cooler
  • The MSI MEG Ai1000P PCIE5 power supply
  • Operating system: Windows 11 Pro 23H2 from Microsoft

Tested memory profiles

  • DDR5-4800 CL40-39-39-77 is the stock.
  • DDR5-6000 CL36-38-38-80 EXPO
  • DDR5-6000 AMD OPP – CL30-38-38-96
  • Try It With Memory: DDR5-6000 CL28-35-35-60

The Ryzen 9000 series from AMD has revolutionised desktop CPU technology by providing outstanding performance for both productivity and gaming applications. AMD unveiled Optimised Performance Profile (OPP) to further maximise this potential, and MSI added cutting-edge memory-related capabilities. The combination has improved users’ gaming experience substantially.

Comprehending AMD OPP

A software program called AMD OPP may determine the ideal memory frequency for a Ryzen 9000 series processor automatically. OPP guarantees that the DDR5-6000 sweet spot is being utilised by your system to operate at maximum efficiency. By doing away with the necessity for manual RAM overclocking, this function maximises performance while making things easier for customers.

The Memory Enhancements of MSI

Two significant additions from MSI to AMD’s efforts are as follows:

Recall Try It

With this program, users can experiment with various memory profiles to determine the best setup for their system. It offers an easy-to-use interface for experimenting with different configurations and choosing the optimal one based on stability and performance.

High Efficiency Mode

Memory modules that are commonly used for gaming are optimised in this mode. It seeks to improve game performance by lowering latency and increasing bandwidth through timing and frequency adjustments. Depending on the user’s choices, MSI provides four distinct configurations to balance stability and performance.

How It Affects Gaming Performance

The performance of games is significantly improved by the combination of AMD OPP and MSI’s memory improvements. What users can anticipate:

Increased frame rates

Smoother gaming is a result of optimised memory speeds and timings.

Decreased input latency

Players have an advantage over rivals because of faster reaction times brought about by lower latency.

Enhanced overall responsiveness

The overall gaming experience is improved as a result of the system seeming snappier and more responsive.

In summary

With AMD OPP and MSI’s memory features, the Ryzen 9000 series from AMD provides a very attractive bundle for gamers. Through the optimisation of memory and speed, these technologies make it easier for users to fully utilise their systems.
