MSI EZ DIY Features with X870E and X870 Motherboards for AMD Ryzen Processors.
MSI X870E
MSI is known for creating high-quality PC hardware with user-friendly designs and functionality. They introduced the first tool-less M.2 slot in 2022, enabling storage drive installation without a screwdriver. This simple function generated a lot of favorable response, prompting us to add it to other motherboard components.
EZ DIY
MSI’s X870E and X870 Motherboards provide EZ DIY
MSI is introducing additional DIY-friendly capabilities to the 800-series AM5 motherboards to ease constructing, troubleshoot, and modify your PC. They made creating your PC simpler and more fun, whether you’re an expert or a beginner.
One-Hand PC Build
The motherboard might be difficult to install in your PC case due to case stand-offs, I/O backplates, etc. The MSI X870E and X870 motherboards‘ EZ Slide Installation and EZ Mounting ease this procedure and protect your important components.
Pre-installed I/O Shield + Smart Backplate Design=EZ Slide Installation
PC construction may be unpleasant and painful when installing an I/O shield manually. To simplify installation, a pre-installed I/O shield removes this step. They’re pleased to announce that all MSI X870E and X870 motherboards will come with I/O Shields.
The MEG X870E motherboards include a metal backplate to protect the back components and make installation easier.
Easy mounting: Collision Notification, Double ESD Protection, Keep Out Zone
PC builders worry about safety while installing the motherboard in a case. EZ Mounting features ensure component safety and allow for mistakes without catastrophic failure.
MSI X870E Motherboard
Installation with One Finger
MSI invented the tool-less M.2 slot in 2022, and your support has kept us going. The MSI X870E and X870 motherboards now include EZ DIY capabilities that let you install numerous popular PC components with a single finger, making installation and upgrades easy.
Installation: EZ Magnetic M.2 Shield Frozr II + EZ M.2 Clip II
All MEG and MPG X870E motherboards’ EZ Magnetic M.2 Shield Frozr II makes M.2 heatsink installation/removal so easy you’ll forget you required a screwdriver to access your NVMe SSD.
For other MSI 800-series AM5 motherboards, tehir tool-less EZ M.2 Shield Frozr II heatsink will improve installation and removal.
When updating or creating a new PC, the little M.2 drive screws mysteriously disappear, which everyone dislikes. With an easy clip, the EZ M.2 Clip II installs your NVMe SSD in seconds without tools!
EZ GPU Installation: PCIe Release + Clip II
Since SSD installation is tool-less, They focused on simplifying graphics card installation and removal, one of your PC’s most costly components! Beginners find it tough to fiddle with an uncomfortable PCIe latch beneath their graphics card to remove it without hurting it or their motherboard.
All MSI AM5 800-series gaming motherboards include an EZ PCIe Release button to remove your graphics card from its slot with one finger. The EZ PCIe Clip II, available on other 800-series motherboards including MSI’s PRO line, has an expanded latch that makes it simpler to remove your graphics card.
Easy System Command: Buttons and Switches
Whether a BIOS update abruptly ends or a faulty setting causes boot loops or instability, difficulties might arise unexpectedly. The Clear CMOS, Flash BIOS, and Dual BIOS switches help you recover quicker.
- Smart Button: You may configure the Smart Button on the rear I/O to initiate a Safe Boot, reboot, maximum fan speed, or toggle your Mystic Light RGB lighting in your BIOS.
- Boot and Reset Button: These onboard buttons let users boot or reset their device without the front panel buttons. As a Smart Button, the Reset Button adds functionality.
- The Flash BIOS Button lets you update your BIOS without a CPU or memory.
- Avoid removing the CMOS battery again using the clear button. This button on the motherboard’s back resets the BIOS to default and boots.
- If anything goes wrong, Dual BIOS Switch takes control. Flip the switch to use the second BIOS!
- EZ LED Switch: Faster, simpler system lighting control.
Single-Look Identification
Without the necessary features, troubleshooting is unpleasant. That’s why all MSI X870E and X870 gaming motherboards provide debug tools like a 7-segment POST code display!
EZ Digi-Debug, Debug, and Memory Detection LEDs
Startup or boot troubles unrelated to your OS may make even the simplest PC-building experience a misery. MSI’s Gaming Series (MEG, MPG, and MAG) motherboards now include an EZ Digi-Debug LED, a 7-segment display displaying POST codes, to help diagnose boot difficulties.
- EZ Debug LEDs on other MSI motherboards help PC builders identify the component causing boot issues.
- EZ Memory Detection LEDs solve the age-old tech support question: Is your RAM working? After detecting a memory stick misbehaving or no memory in that slot, these LEDs flash up.
EZ Monitoring: Dynamic Dashboard III
Monitoring CPU/GPU temperatures, clock speeds, and fan speeds may make or break a steady overclock or boot loop.
Dynamic Dashboard III on the MEG X870E GODLIKE makes hardware monitoring easy. Its huge 3.99-inch LCD screen displays CPU/GPU temperatures, fan speeds, clock speeds, and more in real time, helping you maintain system stability and performance.
Lost EZ Identify Manual? Not to worry!
They’ve added a lot of useful information to the motherboard, but consulting your manual is always a smart idea. For instance, legends surrounding M.2 slots now indicate which drives they support (PCIe or SATA). On the back I/O, USB speeds are clearly marked.
Do More in One Step
A few steps might make PC building unpleasant. The MSI X870E and X870 motherboards include several one-step features that make PC construction easier.
EZ Link: GODLIKE Cable Management
The MSI Project Zero motherboard for a clean, cable-free design to produce the MEG X870E GODLIKE motherboard.
EZ Link reduces cable clutter without modifying the motherboard architecture, allowing neater setups with common PC components. With the EZ Bridge and EZ Control Hub, you can route untidy case front panel wires, fan cables, ARGB/RGB connections, and more to the motherboard’s back and side!
Connecting: EZ Conn-Design + Front Panel Cable
Some MSI-exclusive connections decrease PC clutter. First, MSI PRO series X870 motherboards include a 7-pin (4-pin Fan + 3-pin ARGB) header for one-step ARGB fan wiring.
The X870E and X870 gaming series motherboards’ JAF_V2 11-pin (4-pin Fan + 3-pin ARGB + 4-pin USB) connector lets you connect MPG CORELIQUID P-Series Liquid AIO Coolers with a single cable! Even without one, this JAF_V2 header works with the accompanying 1 to 3 EZ Conn-Cable to connect to the ARGB, Fan, and internal USB ports on many AIO Coolers.
Digging into your case to plug in small connections is difficult. The EZ Front Panel cable has an extension to plug in the headers outside the case, making this simpler.

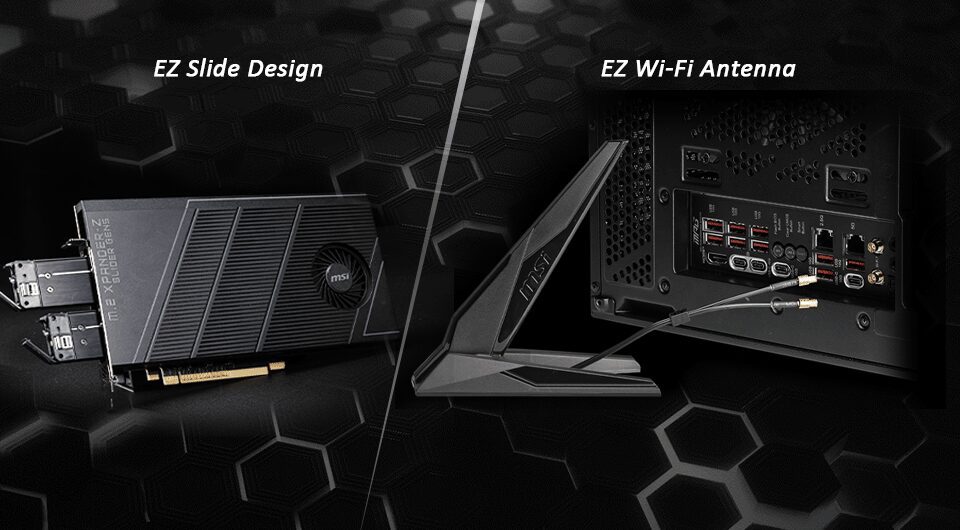

EZ Plug: Slide M.2 + Wi-Fi Antenna
Installing or replacing an M.2 drive requires opening your PC, which might be difficult. Accessing M.2 SSDs via the rear I/O using MSI’s M.2 XPANDER-Z SLIDER GEN5 in the MEG X870E GODLIKE removes this problem. It supports two M.2 drives at PCIe 5.0 x4, so performance never suffers for convenience.
The EZ Wi-Fi Antenna is another cool addition to their X870E and X870 motherboards. It plugs in one step for fast installation and removal.

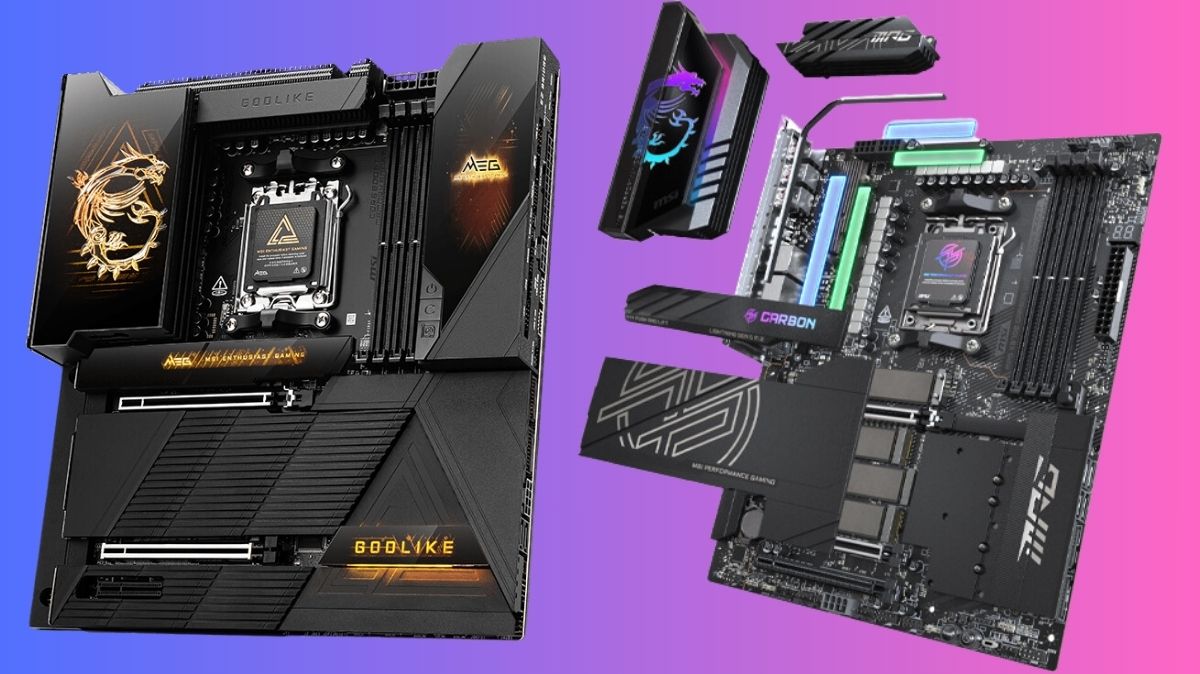

MSI X870 Motherboards
Performance Boost in One Click
Even the simplest construction method is useless without top-notch hardware performance. The MSI X870E and X870 motherboards include several EZ DIY features that boost thermal, CPU, and networking performance.
Click BIOS X, MSI newest BIOS interface, streamlines and simplifies the interface for both experienced and novice over clockers on these motherboards.
EZ Overclocking: Game Boost, AI Boost, EXPO with New Click BIOS X
Overclocking improves hardware performance without overheating. When utilizing a suitable RAM kit, enable EXPO with one click to overclock! Memory Try It lets you overclock your memory to higher clock rates or tighter timings! It provides a list of typical memory settings to easily cycle through.
To simplify overclocking, they created Game Boost, a one-click CPU overclock that optimizes CPU performance instantaneously. However, AI Boost is a clever algorithm that boosts NPU performance for optimal AI performance when horsepower is needed.
MSI Center Smart Management: EZ Optimization
Many AI capabilities integrate AI into your computing experience to make better, real-time choices. Manage and customize your PC experience using the MSI Center’s sleek, basic interface. For instance, AI Engine optimizes PC performance depending on applications.
