ASUS Keyboard
The ROG Azoth Extreme is a premium aluminum-alloy gaming keyboard featuring a metal frame and 75% customisation options. When utilising ROG Polling Rate Booster, it reports at 8000 Hz, and ROG SpeedNova gives it over 1600 hours of battery life. 2.4 GHz wireless mode. The upgraded OLED touchscreen and three-way knob enable quick changes and monitoring of the system. The carbon-fiber positioning plate ensures a clean typing sound, and three dampening layers minimise vibrations. There are two typing possibilities with an adjustable gasket mount and paddle switch.

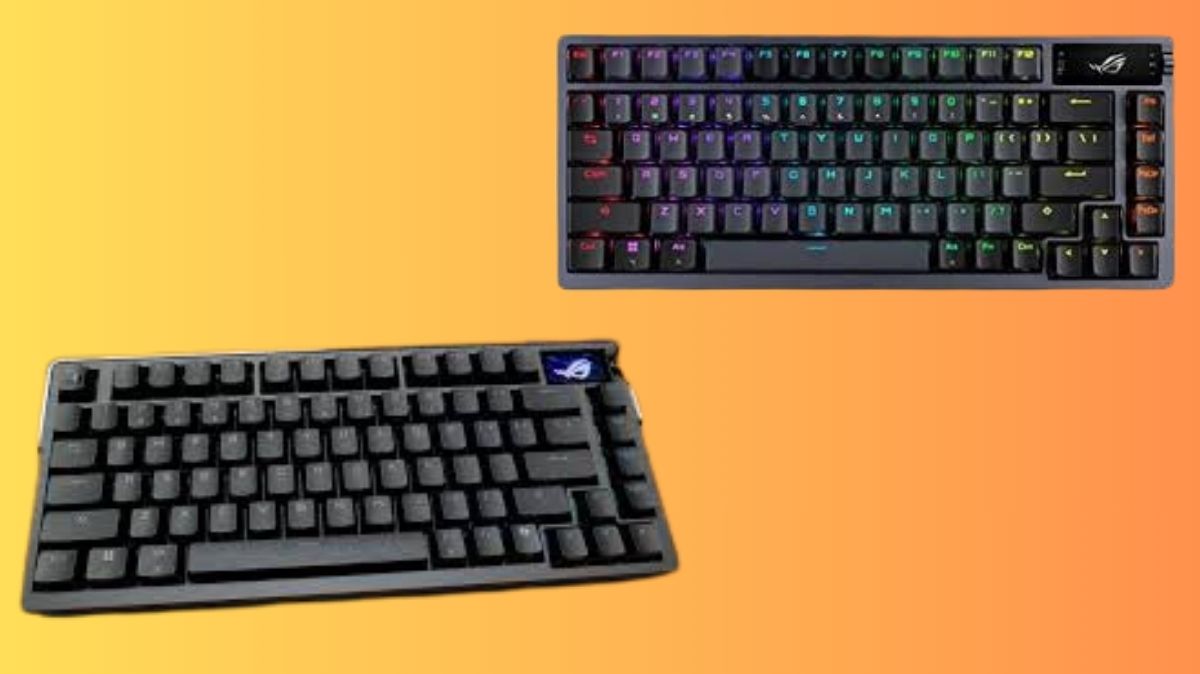

ROG Azoth Extreme Keyboard
Outstanding Construction Quality
The metal frame and complete aluminum-alloy chassis of the ROG Azoth Extreme, with its unique bladed pattern, exude luxury aesthetics. Twelve stages of complex manufacturing procedures, including as sandblasting, anodising, CNC machining, and more, are required to create the bottom chassis.
The steps and streaks on the edges, which were carved using a CNC cutter, further highlight the attention to aesthetics.
The elaborate keyboard design is given a classy touch by the polished ROG nameplate, which is positioned at the bottom casing and has laser engraving.
ASUS ROG Keyboard
ASUS ROG Azoth Extreme
The Azoth Extreme utilises a metal-like stiff carbon fibre positioning plate to deliver a sharp typing experience. Simultaneously, the flexibility of carbon fibre provides superior shock absorption, so efficiently reducing vibrations while typing.
Modifiable Gasket Mount Architecture
Users can customise the Azoth Extreme’s typing experience with a quick-flip paddle switch and ingenious gasket mount. The solid keyboard feel and fast rebound make gaming possible whilst typing in Hard mode.The more flexible keypress in Soft mode makes long typing sessions more comfortable.
Three-Layer Design for Dampening
The Azoth Extreme features three dampening layers to improve typing acoustics: an absorber layer to lessen switch pinging and echoes, two PORON layers, and a silicone pad.
Removeable Magnetised Foot
The Azoth Extreme may be tilted three various ways to suit personal tastes because to its two pairs of magnetic feet, each with a variable height..
Long-lasting Silicone Wrist Rest
The extended wrist rest is made of silicone and has an aluminium alloy base that is precisely shaped to go with the keyboard. Its ergonomic design guarantees long-term sturdy support and comfortable typing sessions.
OLED Display & 3-Mode Control Knob
This sophisticated 1.47-inch full-color OLED touchscreen shows the connection mode, keyboard status, PC/Mac mode indicators, and Caps Lock. In addition, it can show the battery level, multimedia data, personalised animations, and system specifications like a CPU temperature. The three-way control knob and a side button provide intuitive tweaks and settings adjustments.
Adaptable Three-Mode Link
In 2.4 GHz RF mode (with RGB and OLED turned off), ROG SpeedNova wireless technology provides up to 1,600+ hours of consistent, continuous, near-zero-latency gameplay. As an alternative, you can charge and play simultaneously in wired USB mode or connect to up to three devices simultaneously using Bluetooth mode.
ROG NX Mechanical Switch
ROG NX mechanical switches use composite POM material for the stem, with PC top housing and POM bottom housing, to give exceptionally smooth keystrokes. Additionally, the walled stem construction keeps dust out and improves stability. In addition to factory pre-lubrication, further fine tuning is carried out to provide a very pleasing acoustics for the ROG NX keyboard.
Flippable Hot-Swap Switches
For an added unique touch, replace and install the switch type of your choosing. Hot swapping the switches is possible, although it’s not recommended to do so in order to avoid causing the keyboard to short circuit while it is in use.
Keyboard stabiliser for ROG
The pre-lubed keyboard stabiliser has been carefully calibrated to reduce friction with gamers in mind, allowing lengthy keys like as Spacebar, Shift, and Enter to give keystrokes that precisely mimic the sensation of the original switch.
Keycaps for ROG PBT Doubleshot
ROG PBT doubleshot keycaps have a premium feel and long-lasting durability. In order to minimise key wobble and improve user comfort, mid-height keycaps and a shorter stem have been incorporated into the key design.
*The material of keycaps may differ by area.
ROG ABS Keycaps with UV Coating
ROG UV-coated ABS keycaps offer excellent protection against keycap shine due to its robust UV coating layer that withstands wear.
*The material of keycaps may differ by area.
Additional Tuning
To enhance feel and acoustics, the spacebar has been modified and more lubrication added.
Armoury Crate
Armoury Crate integrates illumination and system controls. Mapping keys, recording macros, and scenario profiles are all easily created, defined, and customised. You may also establish custom visuals and animations, audio visualisations, system status monitoring, and knob customisation for ROG Azoth Extreme with Armoury Crate.
Real-time macro recordings
Instantaneous macro recordings that are mapped to completely programmable keys are possible.
Internal memory
Six profiles are available for usage whenever and whenever you choose. These profiles can have up to five custom schemes.
Completely non-ghosting and N-key rollover
Every key that is touched, regardless of the number, is accurately recorded.
Support for MacOS
To map the keys for use with MacBooks and Macs, just toggle between MacOS and PC modes.
ROG Azoth Extreme price
A premium mechanical keyboard, the ASUS ROG Azoth Extreme is a high-end model. It promises exceptional build quality and a distinctive typing experience, with a suggested retail price of approximately $799. This keyboard boasts remarkable sound-dampening technology, an OLED touchscreen, and hot-swappable switches, among other customisable features. It’s designed for enthusiasts who value customisation above all else and are prepared to shell out more money for it.
ROG Azoth Extreme specs
Key Switch
ROG NX Mechanical Switch (Snow / Strom)
Connectivity
USB 2.0 (TypeC to TypeA)
Bluetooth 5.1
RF 2.4GHz
Lighting
RGB Per keys
AURA Sync
Yes
Anti-Ghosting
N Key Rollover
Macro Keys
All Keys Programmable
USB Report rate
(USB Report rate)8000 Hz with ROG Polling Rate Booster
RF 2.4G Report rate
8000 Hz with ROG Polling Rate Booster
Cable
2M USB type A to C braided cable
OS
macOS 10.11 or later
Windows 11
Software
Armoury Crate
Dimensions
332 x 139 x 40 mm
Weight
2200g (with wrist rest)
Color
Black
Contents
• ROG Azoth Extreme
• Wrist rest
• ROG nameplate
• Magnetic feet 2 sets
• ROG Polling Rate Booster
• ROG keycap puller
• ROG switch puller
• Ctrl keycap
• ROG NX switches * 2
• USB dongle
• USB extender
• USB C to USB A cable (2m)
• ROG cleaning cloth
• Silicone pins (4*L, 6*S)
• Foam stickers for ROG keyboard stabilizer swap* 8
• ROG sticker
• Q uick start guide
• Warranty booklet
• ROG thank you card
