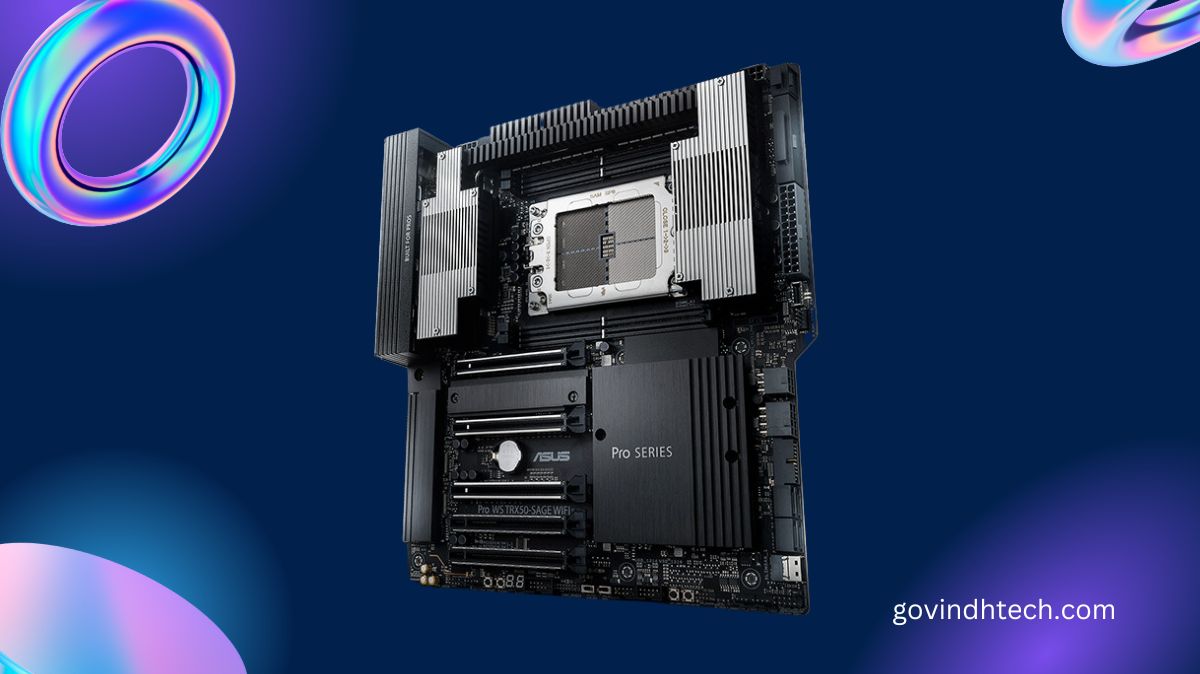

ASUS Introduces Pro WS WRX90E-SAGE SE, TRX50-SAGE WIFI

As AMD Ryzen Threadripper CPUs become updated, workstation motherboards are prepared for them.

• New workstation motherboards are great for AI, deep learning, animation, 3D rendering, and media production.
• Support for AMD Ryzen Threadripper PRO CPU with 96 cores and 192 threads for multithreaded tasks.
• Support CPU and memory overclocking with ECC R-DIMM DDR5 modules.
• Strong thermal and power design: 32+ power stages, 2 x 8-pin CPU power, enormous VRM cooling, chipset, M.2 heatsinks, and thermal pad.

ASUS WRX90E-SAGE SE and ASUS TRX50-SAGE WIFI features

Here, ASUS introduced the Pro WS WRX90E-SAGE SE and Pro WS TRX50-SAGE WIFI workstation motherboards with AMD Ryzen Threadripper CPUs. These two motherboards are designed for AI training, deep learning, animation, 3D rendering, and media production experts with expanded graphics, huge storage, amazing connections, and high performance and dependability. Centralized management software makes them cost-effective and efficient for IT managers.

The Pro WS WRX90E-SAGE SE and TRX50-SAGE WIFI are ideal for creative professionals seeking high-performance platforms. Ryzen Threadripper-powered workstation motherboards. These two motherboards are designed for AI training, deep learning, animation, 3D rendering, and media production experts with expanded graphics, huge storage, amazing connections, and high performance and dependability. Centralized management software makes them cost-effective and efficient for IT managers. The Pro WS WRX90E-SAGE SE and TRX50-SAGE WIFI are ideal for creative professionals seeking high-performance platforms.

Ready CPU and memory overclocking

AMD supports CPU and DRAM overclocking for Threadripper 7000 series workstations and HEDTs. ASUS’ Pro WS WRX90E-SAGE SE and Pro WS TRX50-SAGE WIFI motherboards have a revolutionary dual PSU architecture to maximize processor performance. These boards provide stable overclocking because to powerful power delivery and excellent cooling modules.

Overclockers benefit from motherboard hardware switches and optimized BIOS options when pushing their systems to the limit. EXPO with ECC R-DIMM synergy sets a new benchmark for workstation and high-end desktop computing with remarkable performance and stability.

Greater power everywhere

Later this year, AMD Ryzen Threadripper PRO 7000 WX-Series and Ryzen 7000 series processors will deliver incredible performance for demanding consumers. The top AMD Ryzen Threadripper PRO CPU has 96 cores and 192 threads for advanced simulation, software compilation, generative design, and rendering. It is the first platform with up to 144 useable PCIe Gen5 lanes, making it suitable for systems with many add-in cards, connectivity options, and huge storage arrays.

The VRM on the Pro WS WRX90E-SAGE SE motherboard has (16*2)+3+3+3 power stages to power and efficiently these high-end processors. Second-gen ProCool II connections with metal protection and strong pins for heat dissipation fit snugly to the 12 V CPU input. To enhance power output dependability, this workstation motherboard has an additional PCIe 8-pin power connector. For maximum system unleashment, the power connectors accept dual PSUs. Eight DDR5 memory slots with ECC R-DIMM memory support allow customers to create a large, high-bandwidth memory pool for automatic single-bit memory fault detection and correction. Every PCIe slot has the unique Q-Release Slim design, making it easy to remove graphic cards or add-ons.

Multiple GPUs boost performance in modeling, simulation, and rendering. Seven PCIe 5.0 x16 slots give the Pro WS WRX90E-SAGE SE several configuration and expansion possibilities.

HEDT builders can use AMD Ryzen Threadripper 7000 series CPUs with 64 cores, 128 threads, and 88 PCIe lanes. With its overclocking-ready VRM of (18*2)+3+4+4 power stages, the PRO WS TRX50-SAGE WIFI motherboard can handle these powerful CPUs. Additionally, four ProCool II connectors improve power output and connection reliability. Three of the five PCIe x16 slots support PCIe 5.0 for graphics cards and other add-ons. Finally, four DDR5 memory slots with ECC R-DIMM compatibility allow you install a quick, large, and accurate memory kit.

Strong cooling

The Pro WS WRX90E-SAGE SE and TRX50-SAGE WIFI have huge extruded aluminum VRM heatsinks with fins to draw heat away from MOSFETs and chokes. To cool the motherboard, two fans on either side of the CPU socket blow cool air.

SSDs are kept cool by robust heatsinks and thermal pads in all M.2 slots. A huge unibody heatsink for three M.2 slots and the motherboard processor lowers temperatures. The Pro WS WRX90E-SAGE SE significantly improves thermal efficiency with an active M.2/PCH fan.

The 10 Gbps Ethernet controller is cooled by a larger heatsink near the PCIe x16 slots on the Pro WS WRX90E-SAGE SE and TRX50-SAGE WIFI motherboards.

Wide-ranging connections

Flexible and high-bandwidth connectivity choices suit any PC arrangement. Dual 10 Gbps LAN ports powered by the premium Intel X710-AT2 Ethernet controller provide multi-terabyte transfers on the Pro WS WRX90E-SAGE SE. An additional Gigabit Ethernet connector speeds up and stabilizes data flows to the baseboard management controller.

The Marvell AQtion 10 Gbps Ethernet connection on the Pro WS TRX50-SAGE WIFI allows streaming uncompressed 4K videos, system backups, and huge file transfers to a NAS. An Intel 2.5 Gbps Ethernet port is included. Onboard WiFi provides high-speed, low-interference networking. Pair this motherboard with the latest WiFi routers to use additional bands instead of 2.4 GHz and 5 GHz used by last-gen routers and devices.

Both boards have a header for a front-panel 20 Gbps USB Type-C port and many fast USB ports. In addition to fast-charge support, the Pro WS TRX50-SAGE WIFI has an inbuilt USB4 header to connect to a USB4 expansion card for bi-directional rates up to 40 Gbps. The back panel USB4 ports on the Pro WS WRX90E-SAGE SE offer 40 Gbps data transfers and DP Alt Mode for up to 8K @ 60 Hz displays.

Large storage choices

Both motherboards have many internal disk options and high-speed USB for external storage drives. For larger drives, the Pro WS WRX90E-SAGE SE offers four PCIe 5.0 M.2 slots, two of which can fit the 22110 format. Four onboard SATA connections and two SlimSAS connectors let users simply add drives for a huge storage array. The Pro WS TRX50-SAGE WIFI has two PCIe 5.0 and one PCIe 4.0 M.2 slots, four SATA ports, and one SlimSAS connector.

Server-grade remote management

The Pro WS WRX90E-SAGE SE uses a dedicated Gigabit Ethernet controller on the onboard BMC for IPMI architecture and server-grade remote administration capabilities. Administrators can contact the BMC using remote interfaces like ASUS Control Center Express or a web UI for many control functions. Adding an IPMI extension card to the Pro WS TRX50-SAGE WIFI gives users similar functionality.

These motherboards can be operated using the simple ASUS Control Center Express (ACCE) software for improved security, efficiency, and data leak protection. A unified IT management app makes IT management easy, secure, and cost-effective for any business.

CPU-ready for Ryzen Threadripper

Any workstation built with next-gen AMD Ryzen Threadripper 7000 series CPUs should start with the Pro WS WRX90E-SAGE SE and TRX50-SAGE WIFI. Both motherboards are validated for extensive compatibility with the newest technologies, tested for 24/7 operation, and have wide Qualified Vendor Lists for memory kits for easy setup and reliable operation for years.
