ASUS IoT Introducing Tinker System 3N For Smart Industries

- Advertisement -

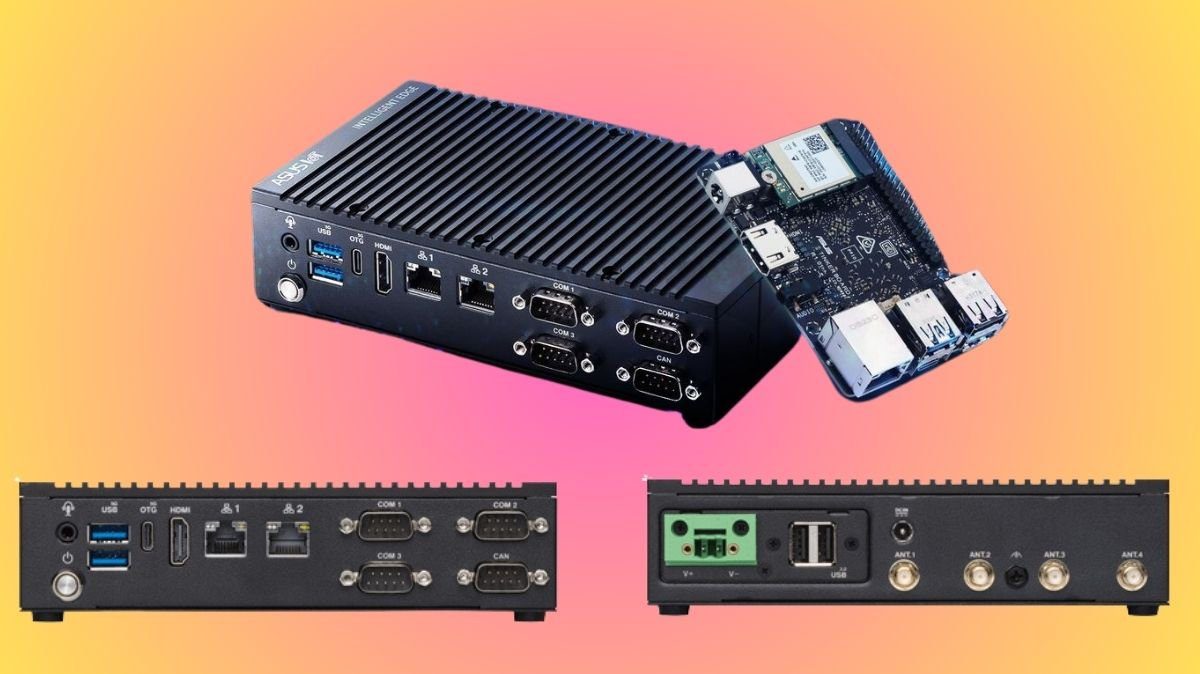

Tinker System 3N

Arm-based fanless edge systems are flexible, adaptable, and productive for both industrial and retail IoT applications. They also offer low power consumption and rich interfaces.

  • Excellent heat conductivity with a fanless design
  • WiFi certified according to RF regulations (CE, FCC, VCCI, BSMI)
  • High expandability with M.2 for the cellular module, dual-LAN, COM, CAN, and CAN
  • Broad operating temperature range of -40 to 60°C and 12 to 24 V DC power range
  • Integrated design featuring DIN-rail clip and wall mount
  • Yocto, Android, and Linux compatibility

ASUS Tinker System 3N unlocks industrial efficiency

The ASUS Tinker System 3N is a fanless embedded computer with Arm architecture that maximizes industrial productivity. It has strong IoT capabilities across many operating systems for both retail and industrial applications because to its adaptable interfaces and low power consumption. Its human-machine interface (HMI) applications, outdoor kiosk deployments, and smart manufacturing applications are all made possible by its robust, compact design, which satisfies military-grade specifications for shock and vibration robustness.

- Advertisement -

Robust design for optimal industrial dependability

Tinker System 3N is designed to satisfy US MIL-STD-810H military-grade specifications for shock and vibration, guaranteeing dependable performance in high-vibration settings and challenging outdoor circumstances.

  • During operation, vibration is handled up to 3 gms across a frequency range of 5 to 500 Hz (MIL-STD 810H Method 514.8, Category 4).
  • Shock (during operation): According to MIL-STD 810H Method 516.8, Procedure I, may withstand shocks of up to 40 G for 11 ms.

Wide temperature range and compact design

The Tinker System 3N boasts an extruded aluminum chassis, a small 0.79-liter capacity, and a fanless design. Wide temperature support (-40 to 60 degrees Celsius) makes it perfect for challenging outdoor conditions. Longevity, dependability, and stable operation are guaranteed by effective heat management.

Broad voltage range and all-encompassing security

With its strong defense mechanisms, Tinker System 3N, which supports 12V–24V, prevents damage with electrostatic discharge (ESD), reverse current protection (RCP), and over-voltage and over-current protection (OVP and OCP). It is perfect for harsh industrial situations because of these precautions, which guarantee great dependability and an extended lifespan.

An extensible and adaptable I/O interface

Thanks to its flexible I/O capabilities through a door switch mechanism, Tinker System 3N can quickly adapt to a variety of needs and configurations without requiring a great deal of customisation. Its adaptability makes it possible to integrate seamlessly and deploy effectively across a range of applications.

- Advertisement -

Combined hardware and software solutions

Advanced hardware and software features are combined in Tinker System 3N to provide a complete solution. These features include regular OTA updates for optimal performance, power scheduling for energy efficiency, USB device power management for durability, and a software development kit (SDK) with GPIO API integration for simplified development.

Sustainability and support for many OS

Tinker System 3N, which supports many operating systems, provides flexibility for a range of applications. The ASUS offers official operating system support and regularly maintains security. Furthermore, smaller transistors switch more quickly and effectively, lowering power consumption and enhancing lifetime.

Applications

Ideal for guaranteeing durability in outdoor kiosk deployments, optimizing interface experiences in HMI configurations, and increasing efficiency in smart manufacturing operations.

Tinker System 3N Specs

SocRockchip RK3568
CPUQuad-core Arm Cortex-A55
GPUArm Mali-G52
MemoryDual-channel LPDDR4X 2GB / 4GB / 8GB
Storage32GB / 64GB eMMC
SPI Flash 16MB
MicroSD (TF) card slot (push/pull)
Display1 x HDMI
Audio1 x 3.5 phone jack (with mic)
1 x HDMI audio
USB1 x USB 3.2 Gen1 Type-C OTG port
2 x USB 3.2 Gen1 Type-A ports
COM2 x RS-232 (with flow), DP9, optional
1 x RS-232/422/485, DB9, optional
1 x CAN Bus 2.0, DP9, optional
WiFiOptional
BluetoothOptional
CellularOptional
GPSOptional
M.2 E key Expansion1 x 2230, for WiFi 5/6 & BT (PCIe 2.0 x1, USB 2.0)
M.2 B key Expansion1 x 3042/3052, for 4G/5G/SSD (PCIe 3.0 x1, USB 3.0, USB 2.0, SIM)
Ethernet2 x 10/100/1000 Mbps, RJ45
POE PD module card1 x POE slot, 802.3at 25W, optional
SIM1 x nano-SIM slot
Configure PortConfig 1: Default
– n/a
Config 2: USB + Power Input
– 2 x USB 2.0 Type-A
– 1 x 2-Pin 12-24VDC, Power Input Terminal Block
DC Input12-24V DC, DC barrel power input jack (5.5/2.5 mm)
MountingWall-mount (support assembly with DIN-rail clips)
Dimension105 x 175 x 43 mm
Weight0.7kg
OS SupportDebian 11 / Android 12 / Yocto
Operation temperature0 ℃ ~ 35℃ / -40℃ ~ 60℃, optional
Non-operation temperature-40℃ ~ 85℃
Non-operation humidity10% ~ 95% (non-condensing)
Watch Dog TimerYes, HW WDT
