AMD Pensando Pollara 400 Improves AI Workloads With RDMA

- Advertisement -

With AMD Pensando Pollara 400, AI Networks Can Be Transformed

Large language models (LLMs) and generative AI have presented previously unheard-of difficulties for conventional Ethernet networks in AI clusters. Conventional Ethernet, which was created for general-purpose computing, has historically struggled to fulfill the demands of these sophisticated AI/ML models, which include tightly coupled parallel processing, fast data transfers, and low-latency communication. Because of its extensive use and wealth of operational knowledge, Ethernet continues to be the network technology of choice in AI clusters despite these difficulties. But it’s becoming more and more clear that standard Ethernet can’t handle specialized AI workloads.

- Advertisement -

The AMD Pensando Pollara 400, created especially to solve these problems, stands out as a noteworthy development in AI networking. Pollara 400 enables users to take use of well-known Ethernet-based fabrics while optimizing performance to satisfy the demands of contemporary AI environments. The Pollara 400 offers a solution that combines the greatest features of both Ethernet’s wide interoperability and the specific requirements of AI applications. The Pollara 400 allows enterprises to fully utilize their AI workloads without compromising the advantages of Ethernet infrastructure by catering to the unique communication requirements of AI/ML models. This creative method is a significant advancement in integrating networking technology with the rapidly changing field of artificial intelligence computing.

Flexible and Effective Distribution in a Public Setting

What is AMD Pensando Pollara 400?

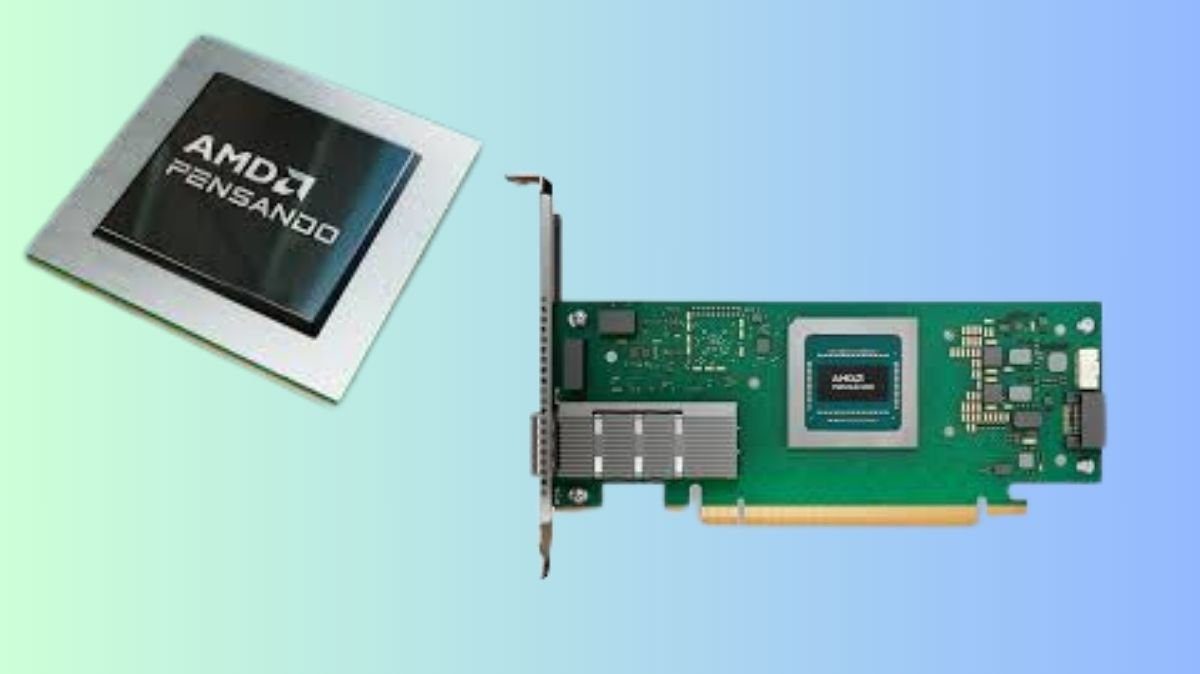

An entirely programmable 400 Gigabit per second (Gbps) RDMA Ethernet Network Interface Card (NIC) is provided by the AMD Pollara 400.

The Pollara 400 PCIe NIC expands on the achievements of the well-established AMD Pensando P4 architecture, which improves network speed and AI job completion times by integrating a high-bandwidth Ethernet controller with a special collection of highly optimized hardware acceleration engines.

RDMA NETWORKING ADVANCEMENT

AMD Pollara 400 is a cutting-edge solution that uses hardware-based congestion control and a fully customizable Remote Direct Memory Access (RDMA) transport to optimize backend networking. By transferring components that are not necessary for GPU-to-GPU connection, Pollara 400 lowers latency and boosts throughput, facilitating effective data transmission. AMD improved transport can operate on any Ethernet fabric, has minimal latency, is very scalable, and provides several significant advancements for AI.

- Advertisement -
  • Packet Spray with Intelligence
  • Delivery of In-Order Messages to GPU
  • Retransmission with Selectivity
  • Avoiding Congestion with Path Awareness

The Pollara 400 reduces complexity at scale while providing high-performance networking tailored for AI and ML workloads. It integrates smoothly into ordinary computing servers. The Pollara 400 is a useful addition for training and interference use cases because it is UEC ready, has RoCEv2 compatibility, and is compatible with other NICs.

Outstanding Skills

P4 Programmability

The Pollara 400’s P4 programmable architecture makes it flexible enough to bring advances today while also being able to adjust to future standards that may change, such those established by the Ultra Ethernet Consortium (UEC). The AMD Pensando Pollara 400’s programmability guarantees that it can adjust to new protocols and specifications, future-proofing investments in AI infrastructure. Through the use of P4, AMD gives clients the ability to modify network behavior, create custom RDMA transports, and maximize performance for certain AI applications while still being compatible with upcoming industry standards.

Intelligent Packet Spraying & Multipathing

Pollara 400 has superior adaptive packet spraying, which is essential for handling the high bandwidth and low latency needs of AI models. This method reduces tail latency and speeds up message completion times by making full use of available bandwidth, especially in CLOS fabric topologies. Pollara 400 offers dependable, fast connection for GPU-to-GPU RDMA communication by easily integrating with AMD EPYC CPU infrastructure and AMD Instinct Accelerator. It reduces the possibility of hot spots and congestion in AI networks by strategically scattering QP (Queue Pair) packets over several channels, guaranteeing peak performance.

Customers can select the Ethernet switching vendor of their choice with the Pollara 400, regardless of whether they want a lossy or lossless implementation. Crucially, by doing away with the need for a lossless network, the Pollara 400 significantly lowers network configuration and operational complexity. The Pollara 400’s adaptability and effectiveness make it a potent tool for improving network dependability and AI workload performance.

In-Order Message Delivery

The Pollara 400 has sophisticated features to manage out-of-order packet arrivals, which are common when using packet spraying and multipathing strategies. With the help of this advanced functionality, the receiving Pollara 400 can quickly interpret data packets that can arrive in a different order than they were initially delivered and immediately store them in GPU memory. The solution preserves good performance and data integrity without adding to the GPU’s workload by controlling this complexity at the NIC level. Reduced latency and increased system efficiency are two benefits of this clever packet handling.

Quick Loss Recovery with Selective Retransmission

By using selective acknowledgment (SACK) retransmission and in-order message delivery, the Pollara 400 improves network performance. SACK enables the Pollara 400 to recognize and retransmit just lost or corrupted packets, in contrast to RoCEv2’s Go-back-N technique, which resends every packet from the moment of failure. This focused strategy avoids redundant data transmission, optimizes bandwidth consumption, and lowers packet loss recovery latency.

Smooth data flow and optimal resource usage are made possible by the AMD Pensando Pollara 400, which combines effective in-order delivery with SACK retransmission. It is perfect for demanding AI networks and large-scale machine learning operations because of these properties, which lead to faster job completion times, lower tail latencies, and more effective bandwidth use.

Path Aware Congestion Control

To efficiently handle network congestion, especially incast situations, the Pollara 400 uses network-aware algorithms and real-time monitoring. The AMD UEC ready RDMA transport provides a more advanced method than RoCEv2, which depends on PFC and ECN in a lossless network:

  • Keeps the status of per-path congestion constant.
  • Avoids clogged routes dynamically with adaptive packet-spraying
  • Maintains performance close to wire-rate under brief congestion
  • Eliminates the need for PFC by optimizing packet flow over several pathways.
  • Prevents data flow interference by using per-flow congestion control.

These characteristics make configuration easier, lower operating costs, and steer clear of typical problems like head-of-line blocking, deadlock, and congestion spreading. Deterministic performance throughout the network is made possible by the path-aware congestion control, which is essential for large-scale AI activities. AMD Pensando Pollara 400 streamlines deployment in AI-driven data centers by reducing network complexity through intelligent congestion management without a completely lossless network.

Rapid Fault Detection in High-Performance AI Networks

Effective data synchronization in AI GPU clusters depends on high-performance networks. AMD Pensando Pollara 400 uses advanced techniques to quickly identify issues, which is crucial for preserving peak performance. AI applications need aggressive fault detection to handle the crucial elements of minimizing idle GPU time and boosting throughput of AI training and inference jobs, which eventually reduce job completion time. The timeout mechanisms of standard protocols are frequently too sluggish for these applications.

  • Sender-Based ACK Monitoring is a feature of AMD Pensando Pollara 400 Rapid Fault Detection that makes use of the sender’s capacity to monitor acknowledgments (ACKs) over several network channels.
  • Another method that monitors incoming packet flows from the viewpoint of the receiver is AMD Pensando Pollara 400 Receiver-Based Packet Monitoring. Each unique network path’s packet receipt is monitored by the receiver, and if packets cease arriving on a path for a predetermined amount of time, a possible failure is detected.
  • When a problem is suspected (caused by either of the aforementioned ways), a probe packet is sent down the suspected defective path using AMD Pensando Pollara 400 Probe-Based Verification. The path is verified as unsuccessful if the probe receives no response within the allotted period. This extra step aids in differentiating between temporary network problems and real path breakdowns.

Mechanisms for quick fault detection have several benefits. They reduce GPU idle time by enabling near-instantaneous failover by detecting problems in milliseconds. AI workloads are guaranteed to continue on healthy paths with the quick identification and isolation of problematic paths, which optimizes network resource allocation. By perhaps cutting down on training times and increasing inference accuracy, this method improves AI performance overall.

Conclusion

The AMD Pensando Pollara 400 is a key part of a strong AI infrastructure, not just a network card. By providing features like adaptive packet spray with intelligent path aware congestion control to mitigate incast circumstances, selective acknowledgement, robust error detection, and real-time telemetry, it overcomes the drawbacks of conventional RoCEv2 Ethernet networks. Networks supporting bursty data flows, low jitter, noise isolation, and high bandwidth are necessary for AI applications in order to guarantee the best GPU performance. The AMD Pensando Pollara 400 serves as the foundation of a high-efficiency, low-latency AI cloud environment when combined with “best of breed” Ethernet switches that adhere to standards.

AMD Pensando Pollara 400 is a vital component of any AI cloud architecture because of its capacity to provide high throughput, low latency, and remarkable scalability, as well as the flexibility of P4 programmability. In addition to increasing the NIC’s adaptability, this programmable method enables the swift implementation of new networking features, guaranteeing that AI infrastructures may advance at the same rate as the AI technologies they support.
