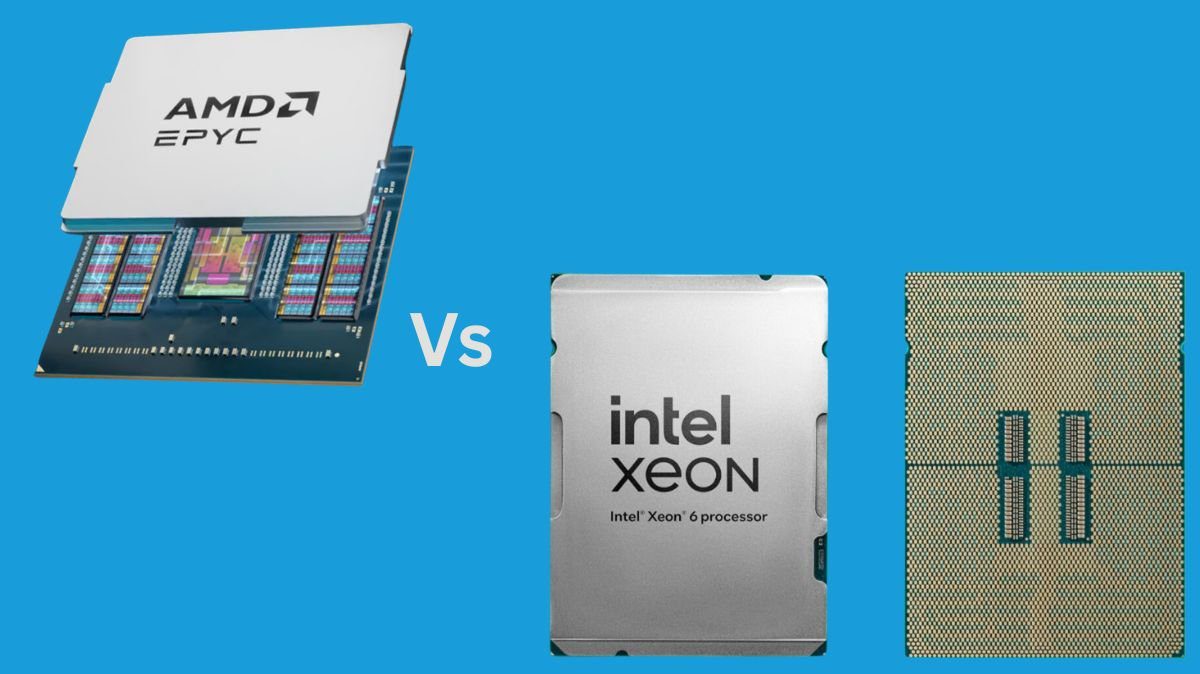

AMD EPYC 9005 Vs Intel Xeon 6: Next-Gen Server Processors

AMD EPYC 9005 Vs Intel Xeon 6

AMD EPYC 9005

Core Design & Architecture:

  • Core Architecture of AMD EPYC 9005 “Turin”: Zen 5 (up to 128 cores) and Zen 5c (up to 192 cores).
  • Maximum number of threads: 384.
  • Zen 5 on TSMC 4nm and Zen 5c on TSMC 3nm are the process nodes.
  • Compatible with earlier Genoa/Bergamo platforms, socket: SP5
  • Supported Memory: up to 9TB, 12-channel DDR5-6400
  • PCIe: PCIe 5.0 with 160 lanes.
  • CXL 1.0 (Types 1, 2, 3) is supported.
  • Range of TDP: 125W to 500W

Intel Xeon 6

Fundamental Architecture:

  • Up to 288 E-cores in the Sierra Forest (Crestmont)
  • Redwood Cove Granite Rapids: Up to 128 P-cores
  • Node of Process: Intel 3
  • LGA 4710 and LGA 7529 sockets
  • Supported Memory: up to 6TB, 12-channel DDR5-6400
  • PCIe: PCIe 5.0 (Granite Rapids-AP) has up to 136 lanes.
  • Support for CXL: CXL 2.0
  • TDP Range: Granite Rapids-AP up to 500W

Benchmarks and Performance

AMD EPYC 9005

  • Outstanding performance is provided by the EPYC 9965 (192-core), particularly when multi-threaded workloads are involved.
  • According to benchmarks, a dual 128-core EPYC 9755 configuration outperforms Intel’s dual Xeon 6980P by about 40% across a range of tests.
  • The performance of twin Xeon 6980P combinations is frequently equal to or better than that of single EPYC 9755 or 9965 CPUs.

The Intel Xeon 6

  • Sierra Forest: With up to 288 E-cores, it is optimized for high-density, multi-threaded tasks.
  • Granite Rapids: With up to 128 P-cores, it is made for high-performance computation.
  • Despite being competitive, Intel’s products typically perform worse than AMD’s EPYC 9005 series in terms of efficiency and performance.

Also Read About AMD EPYC vs Intel Xeon: Performance, Price Comparison

Benchmark TestAMD EPYC 9005Intel Xeon 6
Double-Precision AVX-512 (FMA)EPYC 9755: 26.3 TFlops; EPYC 9965: 32.8 TFlopsDual Xeon 6980P: 23.6 TFlops
3D Rendering (Blender)Outperforms Xeon 6980P in parallel workloadsTrails behind EPYC 9005 in similar workloads
Memory BandwidthHigher due to 12-channel DDR5-6400 supportSlightly lower with up to 12-channel DDR5-6400
Power EfficiencyBetter performance per watt, especially in Zen 5cLess efficient at higher core counts

AMD EPYC 9005: Benefits and Drawbacks

Benefits

  • Increased Core Count: Excellent for large parallel tasks, Zen 5c variants have up to 192 cores and 384 threads.
  • Better Performance per Watt: High throughput and power efficiency are two features that AMD’s Zen 5 and Zen 5c are designed to maximize.
  • Additional PCIe 5.0 Lanes: Perfect for I/O-intensive applications (NVMe, GPUs, networking), it provides up to 160 PCIe 5.0 lanes.
  • Memory Capacity and Bandwidth: Supports the industry-leading 12-channel DDR5-6400 and up to 9TB of memory per socket.
  • Scalable Compatibility of Sockets: Upgrades are made easier by the SP5 socket’s compatibility with the Genoa and Bergamo platforms.
  • Superior Protection (Infinity Guard); Hardware-level memory and virtual machine encryption are provided by features like SEV, SME, and SNP.
  • Economical at High-End: Performs better than the Intel Xeon 6980P while costing less or the same.

Drawbacks

  • Platform Prices May Be Expensive: Need a top-tier motherboard with cooling and strong VRMs for variants with 128–192 cores.
  • Limited Edition CXL: Some memory pooling choices are limited since Intel Xeon 6 supports CXL 2.0 while still using CXL 1.x.
  • Higher Flagship Power Consumption: 192-core machines require sophisticated cooling and a PSU because they can achieve TDPs of up to 500W.
  • Lag in Software Optimization: It’s possible that some business applications still prefer Intel’s architecture or need to be adjusted for AMD’s high core counts.

Intel Xeon 6 Benefits and Drawbacks

Benefits

  • Adaptable Core Architecture:
    • Sierra Forest: For workloads with a high density, up to 288 E-cores are available.
    • Granite Rapids: For demanding computations, up to 128 P-cores are available.
  • Support for CXL 2.0: Makes memory sharing and pooling possible, which is excellent for memory-bound and AI/ML applications.
  • Robust Security Stack: Includes multi-key memory encryption, TME, and SGX, which are trusted in many data centers.
  • Maturity of the Software Ecosystem: Wide compatibility and optimization in financial services, corporate, and HPC software.
  • E-core Option with Low Power Consumption: In web-scale installations, Sierra Forest’s effective cores contribute to lower power usage.

Drawbacks

  • Reduced Socket Performance: Even twin Xeon configurations frequently perform worse than single EPYC 9755/9965 in benchmarks.
  • Reduced PCIe Lanes: Has 136 PCIe 5.0 lanes available, less than AMD’s 160 lanes.
  • Reduced Maximum Memory Capacity: In contrast to AMD’s 9TB, it supports up to 6TB per socket.
  • Expensive at the highest level: Compared to comparable AMD EPYC CPUs, flagship variants (such as the Xeon 6980P) can be more costly.
  • Complicated Transition of Sockets: Introduces new sockets (LGA 4710 & 7529), which necessitate a complete platform upgrade.

AMD EPYC 9005 Vs Intel Xeon 6 Price

Processor ModelCoresThreadsPrice (USD)
AMD EPYC 9015816$527
AMD EPYC 9755128256$12,984
AMD EPYC 9965192384$14,813
Intel Xeon 6980P128256$17,800
Intel Xeon 6780E96192$11,350

Security Features

AMD EPYC 9005

  • The Infinity Guard Suite: By encrypting virtual machines, Secure Encrypted Virtualization (SEV) improves security in multi-tenant settings.
  • System memory is encrypted using Secure Memory Encryption (SME) to prevent unwanted access.

Intel Xeon 6

  • Software Guard Extensions (SGX): Offers separate spaces for private information and code.
  • To protect against physical threats, all memory is encrypted using total memory encryption (TME).

AMD EPYC 9005 Vs Intel Xeon 6 Specs

SpecificationAMD EPYC 9005Intel Xeon 6
Max Cores / Threads192 / 384288 E-cores or 128 P-cores
PCIe Support160 lanes PCIe 5.0Up to 136 lanes PCIe 5.0
Memory CapacityUp to 9TB DDR5-6400Up to 6TB DDR5-6400
Socket ReuseYes (SP5)No (new LGA 4710 / 7529)
SecuritySEV, SME, SNPSGX, TME, MKTME
CXL SupportCXL 1.1CXL 2.0
Software OptimizationGrowing support, some legacy gapsMore mature, widely adopted
Performance LeadershipSuperior in single/dual-socket workloadsCompetitive, but lags in top-tier benchmarks
Power EfficiencyExcellent in Zen 5c modelsE-cores in Sierra Forest good for density

In conclusion

When compared to Intel’s Xeon 6 family, AMD’s EPYC 9005 series especially the high-core-count variants like the 9965 offers better performance and efficiency. AMD establishes itself as a major player in the server CPU industry with its cutting-edge security features, increased core densities, and affordable prices.

With their unique E-core and P-core architectures, Intel’s Xeon 6 processors are designed to handle certain workloads and provide strong security features. However, AMD’s most recent products now have a considerable advantage in terms of raw performance and pricing.
